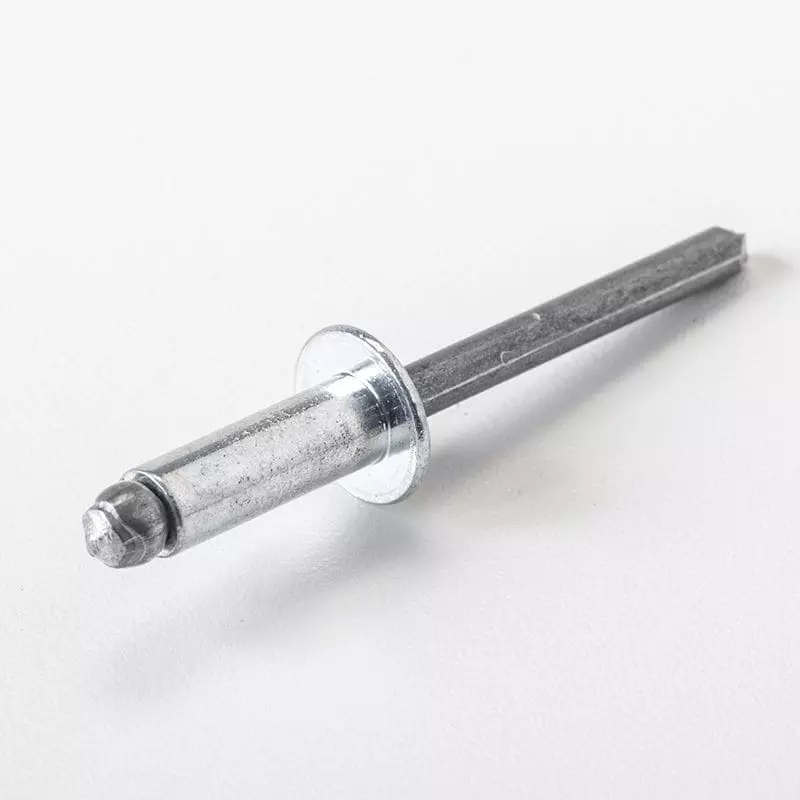

1 4 Inch Stainless Steel Pop Rivets
1/4” Stainless Steel POP Rivets are the key to corrosion-resistant, high-strength industrial grade fastening solutions. These products are suitable for harsh environments, structural joints and long-term outdoor applications.
- Rivet body diameter: 1/4” (6.4mm)
- Grip Range: 0.063“ – 0.5” (1.6 – 12.7mm), varies by model
- Material combinations: stainless steel rivet body + stainless steel mandrel (all stainless steel) or steel mandrel (cost optimized)
- Head options: Dome, Large Flange, Countersunk.
- Finish: Usually not required as stainless steel is inherently resistant to corrosion.
Stainless steel POP rivets are a form of blind rivet that deforms the body of the rivet by stretching the mandrel from the mounting surface to achieve a permanent connection between two workpieces.” POP” is the original brand name (now part of Stanley Engineered Fastening) and has become the industry’s generic name for all blind rivet products.
Performance characteristics of 1 4 Inch Stainless Steel Pop Rivets
- High tensile and shear strength: suitable for structural connections.
- High corrosion resistance: suitable for salt spray, high humidity or chemically corrosive environments.
- Temperature stability: maintains structural integrity even in high temperature environments.
- Reliable installation: uniform expansion, not easy to tear the thin plate.
Installation and Recommendations
- Recommended hole diameter: usually 6.6-6.9mm, to ensure moderate interference fit.
- Tools to use: pneumatic-hydraulic nail pulling gun is recommended, as the stainless steel rivets have higher pulling force.
- Pay attention to the mandrel residue: optional anti-mandrel off design to improve the consistency of sealing and strength.
Typical Application Scenarios of 1 4 Inch Stainless Steel Pop Rivets
- Ships, port facilities, anti-corrosion pipeline systems
- Elevators, escalators, rail transit car body assembly
- Refrigerated vehicles, box manufacturing, commercial vehicle frames
- Heavy-duty cabinets, industrial equipment housings
- Structural connections for outdoor buildings
Is this rivet made of all stainless steel?
A: Yes, all stainless steel construction, usually 304 or 316 grade. Some cost optimized models are stainless steel nail body + steel core bar combination, please confirm the material combination to match the corrosion resistance requirements.
What is the applicable grip range?
A: Standard 1/4“ rivets are available in a variety of Grip Ranges, commonly ranging from 0.063”-0.375” (1.6-9.5mm) or greater, depending on the part number. It is recommended that the selection be based on the total thickness of the material being joined.
What standards does this product meet?
Answer: Most industrial grade products conform to ISO 15977, IFIRivets specifications or DIN 7337.
What is the corrosion resistance?
A: If it is 304 stainless steel, it is suitable for general industry and light outdoor environments; if it is 316, it is more resistant to salt spray and chemical corrosion, and is suitable for marine and coastal scenarios.
What is the tensile and shear strength data?
A: Typical 1/4” all stainless steel blind rivets have a tensile strength of 2,500-3,000 N and a shear strength of approximately 1,800-2,400 N. It is recommended that specific values be confirmed from the manufacturer’s data sheet.
What is the recommended installation tool?
Answer: Pneumatic-hydraulic nail pulling gun is recommended, such as Rivmate P series pneumatic rivet gun.
Do you support customized logo or special packaging?
A: Yes, Rivmate, as a leading rivet manufacturer, supports customized logo marking and industrial packaging labels (including barcode and batch), but there is a threshold for MOQ.
Do you provide quality assurance and inspection reports?
A: Yes, Rivmate can provide batch test reports, raw material certificates and PPAP (e.g. for automotive customers).
