Countersunk Pop Rivets
Rivmate provides you with high-quality countersunk rivets for applications that require a clean and flush riveting finish, helping you achieve a more attractive and safer riveted connection.
- The countersunk design is suitable for assembly positions that require low protrusion height or a flush surface.
- It can be used for joining sheet metal, aluminum sheets, steel sheets, equipment panels, and industrial structural components.
- Easy to install with one-side access only, making it ideal for fast assembly on mass production lines.
- Factory-direct supply with support for size matching, material selection, surface finishing, and bulk orders.
Why Choose Our Countersunk Pop Rivets
- Countersunk design helps reduce surface protrusion
- Helps improve the overall appearance of the assembled product
- Widely used for cabinets, door panels, housings, and thin sheet metal structural parts
Rivmate —— Your Professional Customized Countersunk Pop Rivets Manufacturer
As a manufacturer of countersunk pop rivets, Rivmate offers you Countersunk Pop Rivets designed for assembly on flat surfaces. Compared to standard round-head rivets, the countersunk design minimizes surface protrusion after riveting, making them ideal for metal joining applications where appearance, space, and assembly safety are critical.
Your countersunk pop rivets can be matched according to workpiece thickness, hole size requirements, grip range, head dimensions, material, and surface color. Whether they are used for equipment panels, metal enclosures, vehicle components, or industrial sheet metal structures, we can provide you with stable customized production and bulk supply support.
Countersunk Pop Rivets-Classified by Material
We offer Countersunk Pop Rivets classified by material, helping you choose the right riveting solution based on sheet material type, application environment, strength requirements, and appearance needs. Whether you need lightweight fastening with aluminum, high-strength fastening with steel, or corrosion resistance with stainless steel, Rivmate can provide stable product supply for your bulk assembly projects.
Aluminum & Steel Countersunk Pop Rivets
Aluminium rivet body with carbon steel mandrel, suitable for thin metal sheets and sheet metal assembly
Aluminum & Carbon steel Countersunk Pop Rivets
Suitable for sheet metal panels, covers and light-gauge structural assemblies, it produces a flush-surface riveted finish.
All aluminum Countersunk Pop Rivets
Aluminum body and aluminum mandrel reduce material mismatch, making it suitable for aluminum structures
Aluminum & Stainless steel Countersunk Pop Rivets
Designed for recessed holes, providing a low-profile fastening solution for sheet metal, aluminum panels, and industrial covers.
All steel / All carbon steel Countersunk Pop Rivets
Countersunk head design allows the rivet to sit flush with the material surface, ideal for steel sheets and equipment panels.
All stainless steel Countersunk Pop Rivets
All-stainless steel construction provides excellent corrosion resistance for demanding assemblies.
Stainless Steel Countersunk Pop Rivets
Stainless steel countersunk rivets designed for flush surface fastening, suitable for outdoor, corrosive.
Countersunk Pop Rivets-Classified by size
Rivmate’s Countersunk Pop Rivets can be classified by different diameters and lengths to meet your assembly requirements for various riveting thicknesses and application structures. Whether they are used for thin sheet metal joining, equipment panel fastening, or industrial enclosure assembly, we can provide suitable size options to help you achieve more efficient and consistent bulk assembly.
3.2 mm Countersunk Pop Rivets
Small-diameter sizes, suitable for small-hole, thin-gauge, and light-load connections.
4.0 mm Countersunk Pop Rivets
These small- to medium-diameter sizes balance ease of installation with foundation clamping force.
4.8 mm Countersunk Pop Rivets
Suitable for assembling metal panels and housings, ensuring consistent rivet strength
6.4 mm Countersunk Pop Rivets
Suitable for applications requiring large apertures, high load-bearing capacity.
Countersunk Pop Rivets-Classified by Structure
Countersunk Pop Rivets are mainly used in applications that require a recessed or low-profile riveting effect. Rivmate can provide suitable countersunk pop rivet specifications according to your sheet thickness, hole diameter requirements, grip range, and surface treatment needs, helping your products achieve more stable fastening performance and a cleaner appearance.
Countersunk Head Open Type Blind Rivets
Once installed, the head sits flush with the workpiece surface, making it suitable for general industrial assembly.
Countersunk Head Sealed Blind Rivets
For applications requiring water resistance, dust resistance, and a flush finish, this helps reduce the ingress of liquids and dust.

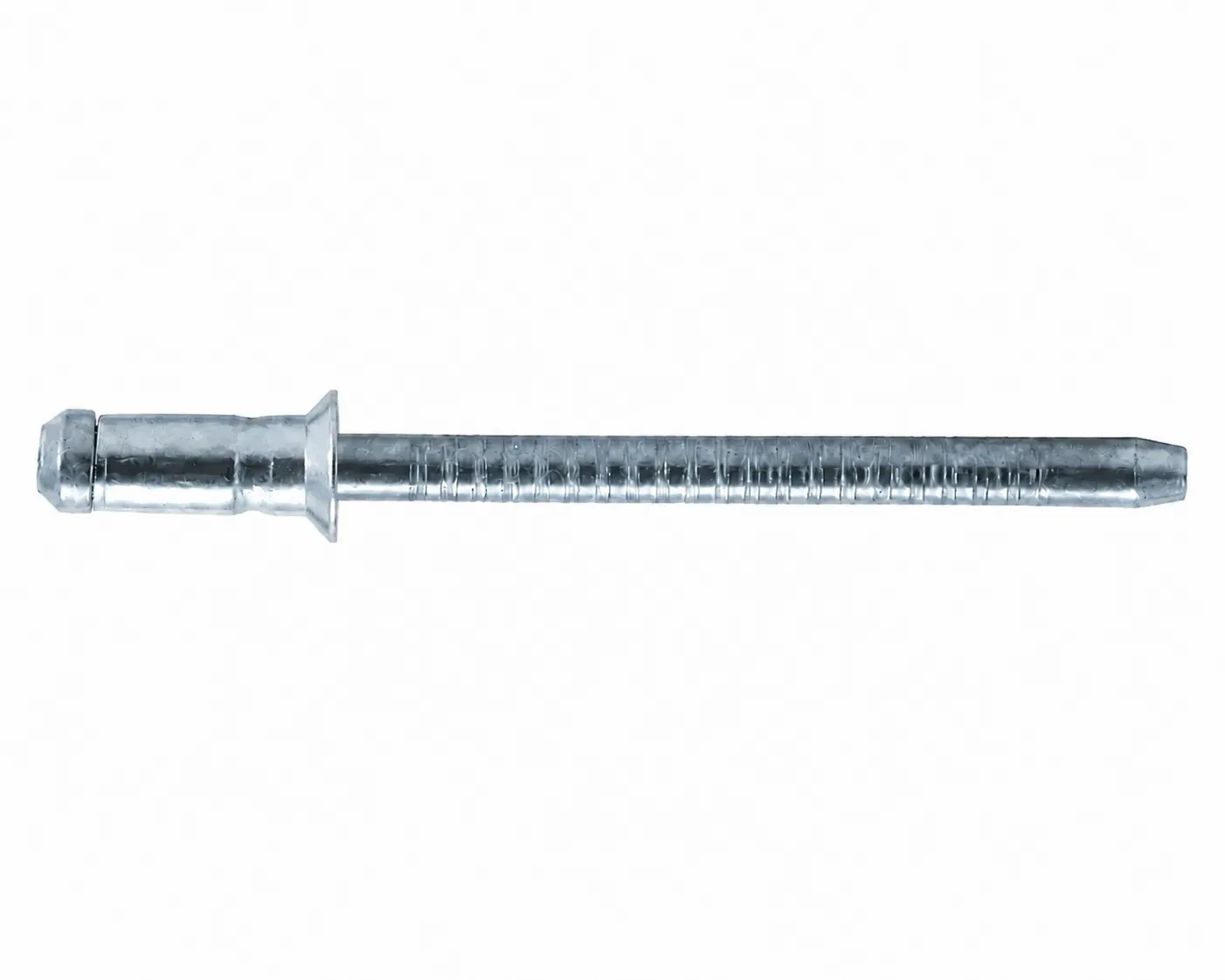

Countersunk Uni-grip Blind Rivets
Suitable for joining applications where plate thickness varies significantly, providing a more flexible range of riveting options.
Countersunk Head Hemlok Rivets
Designed for connecting metal sheets subject to high load requirements, it provides a stronger locking and securing effect.
Countersunk Head Multi-grip Blind Rivets
It can accommodate a wide range of rivet thicknesses, making it suitable for joining parts of varying thicknesses in mass production.
Countersunk Head Now-Lock Blind Rivets
Ideal for metal sheet assembly applications that require a flush finish and reliable locking performance.
Countersunk Head Mono-Lock Blind Rivets
Used for connecting industrial structural components; suitable for equipment housings, vehicle parts, and mechanical structures.
Countersunk Q-Lock Blind Rivets
It is ideal for applications that require a combination of aesthetic appeal, strength, and assembly stability.
| Product Series | Material Combination | Countersunk Head Code | Diameter d (mm) | Available Size (mm) | Grip Range (mm) | Drill (mm) | Csk Head dk × k (Max, mm) | Mandrel Dia dm (Max, mm) | Mandrel Reveal P (Min, mm) | Typical Ultimate Strength Tensile / Shear (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| Open Type Blind Rivet | Aluminum body / Carbon steel mandrel | ASC | 2.4 | 2.4×4.0 / 6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 | 0.5–13.0 | 2.5–2.6 | 4.8 × 1.0 | 1.6 | 25.0 | 280 / 180 |
| Open Type Blind Rivet | Aluminum body / Carbon steel mandrel | ASC | 3.0 | 3.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.1–3.2 | 6.3 × 1.3 | 2.0 | 27.0 | 400 / 300 |
| Open Type Blind Rivet | Aluminum body / Carbon steel mandrel | ASC | 3.2 | 3.2×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.3–3.4 | 6.3 × 1.3 | 2.0 | 27.0 | 500 / 400 |
| Open Type Blind Rivet | Aluminum body / Carbon steel mandrel | ASC | 4.0 | 4.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 | 1.0–26.0 | 4.1–4.2 | 7.5 × 1.7 | 2.5 | 27.0 | 1000 / 800 |
| Open Type Blind Rivet | Aluminum body / Carbon steel mandrel | ASC | 4.8 | 4.8×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 4.9–5.0 | 9.5 × 2.0 | 3.0 | 27.0 | 1500 / 1300 |
| Open Type Blind Rivet | Aluminum body / Carbon steel mandrel | ASC | 5.0 | 5.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 5.1–5.2 | 9.5 × 2.1 | 3.0 | 27.0 | 1700 / 1500 |
| Open Type Blind Rivet | Aluminum body / Carbon steel mandrel | ASC | 6.0 | 6.0×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–34.0 | 6.1–6.2 | 11.3 × 2.1 | 3.7 | 31.0 | 2500 / 2000 |
| Open Type Blind Rivet | Aluminum body / Carbon steel mandrel | ASC | 6.4 | 6.4×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–33.0 | 6.5–6.6 | 12.5 × 2.7 | 3.9 | 31.0 | 3000 / 2200 |
| Open Type Blind Rivet | Aluminum body / Aluminum mandrel | AAC | 2.4 | 2.4×4.0 / 6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 | 0.5–13.0 | 2.5–2.6 | 4.8 × 1.0 | 1.6 | 25.0 | 200 / 150 |
| Open Type Blind Rivet | Aluminum body / Aluminum mandrel | AAC | 3.0 | 3.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.1–3.2 | 6.3 × 1.3 | 2.0 | 27.0 | 300 / 250 |
| Open Type Blind Rivet | Aluminum body / Aluminum mandrel | AAC | 3.2 | 3.2×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.3–3.4 | 6.3 × 1.3 | 2.0 | 27.0 | 400 / 350 |
| Open Type Blind Rivet | Aluminum body / Aluminum mandrel | AAC | 4.0 | 4.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 | 1.0–26.0 | 4.1–4.2 | 7.5 × 1.7 | 2.5 | 27.0 | 900 / 700 |
| Open Type Blind Rivet | Aluminum body / Aluminum mandrel | AAC | 4.8 | 4.8×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 4.9–5.0 | 9.5 × 2.0 | 3.0 | 27.0 | 1300 / 850 |
| Open Type Blind Rivet | Aluminum body / Aluminum mandrel | AAC | 5.0 | 5.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 5.1–5.2 | 9.5 × 2.1 | 3.0 | 27.0 | 1500 / 1000 |
| Open Type Blind Rivet | Aluminum body / Aluminum mandrel | AAC | 6.0 | 6.0×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–34.0 | 6.1–6.2 | 11.3 × 2.1 | 3.7 | 31.0 | 1900 / 1200 |
| Open Type Blind Rivet | Aluminum body / Aluminum mandrel | AAC | 6.4 | 6.4×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–33.0 | 6.5–6.6 | 12.5 × 2.7 | 3.9 | 31.0 | 2200 / 1500 |
| Open Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABC | 2.4 | 2.4×4.0 / 6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 | 0.5–13.0 | 2.5–2.6 | 4.8 × 1.0 | 1.6 | 25.0 | 500 / 350 |
| Open Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABC | 3.0 | 3.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.1–3.2 | 6.3 × 1.3 | 2.0 | 27.0 | 700 / 550 |
| Open Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABC | 3.2 | 3.2×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.3–3.4 | 6.3 × 1.3 | 2.0 | 27.0 | 1000 / 750 |
| Open Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABC | 4.0 | 4.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 | 1.0–26.0 | 4.1–4.2 | 7.5 × 1.7 | 2.5 | 27.0 | 1700 / 1100 |
| Open Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABC | 4.8 | 4.8×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 4.9–5.0 | 9.5 × 2.0 | 3.0 | 27.0 | 2500 / 1700 |
| Open Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABC | 5.0 | 5.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 5.1–5.2 | 9.5 × 2.1 | 3.0 | 27.0 | 2950 / 1950 |
| Open Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABC | 6.0 | 6.0×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–34.0 | 6.1–6.2 | 11.3 × 2.1 | 3.7 | 31.0 | 4200 / 3200 |
| Open Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABC | 6.4 | 6.4×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–33.0 | 6.5–6.6 | 12.5 × 2.7 | 3.9 | 31.0 | 4850 / 3400 |
| Open Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSC | 3.0 | 3.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.1–3.2 | 6.3 × 1.3 | 2.0 | 27.0 | 1125 / 915 |
| Open Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSC | 3.2 | 3.2×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.3–3.4 | 6.3 × 1.3 | 2.0 | 27.0 | 1285 / 1060 |
| Open Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSC | 4.0 | 4.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 | 1.0–26.0 | 4.1–4.2 | 7.5 × 1.7 | 2.5 | 27.0 | 1990 / 1550 |
| Open Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSC | 4.8 | 4.8×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 4.9–5.0 | 9.5 × 2.0 | 3.0 | 27.0 | 2920 / 2300 |
| Open Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSC | 5.0 | 5.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 5.1–5.2 | 9.5 × 2.1 | 3.0 | 27.0 | 3255 / 2575 |
| Open Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSC | 6.0 | 6.0×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–34.0 | 6.1–6.2 | 11.3 × 2.1 | 3.7 | 31.0 | 5000 / 4000 |
| Open Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSC | 6.4 | 6.4×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–33.0 | 6.5–6.6 | 12.5 × 2.7 | 3.9 | 31.0 | 5400 / 4350 |
| Open Type Blind Rivet | Stainless steel body / Stainless steel mandrel | BBC-S | 3.0 | 3.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.1–3.2 | 6.3 × 1.3 | 2.0 | 27.0 | 2000 / 1600 |
| Open Type Blind Rivet | Stainless steel body / Stainless steel mandrel | BBC-S | 3.2 | 3.2×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 3.3–3.4 | 6.3 × 1.3 | 2.0 | 27.0 | 2500 / 1800 |
| Open Type Blind Rivet | Stainless steel body / Stainless steel mandrel | BBC-S | 4.0 | 4.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 | 1.0–26.0 | 4.1–4.2 | 7.5 × 1.7 | 2.5 | 27.0 | 3800 / 3100 |
| Open Type Blind Rivet | Stainless steel body / Stainless steel mandrel | BBC-S | 4.8 | 4.8×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 4.9–5.0 | 9.5 × 2.0 | 3.0 | 27.0 | 6000 / 4500 |
| Open Type Blind Rivet | Stainless steel body / Stainless steel mandrel | BBC-S | 5.0 | 5.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.0–35.0 | 5.1–5.2 | 9.5 × 2.1 | 3.0 | 27.0 | 6500 / 5000 |
| Open Type Blind Rivet | Stainless steel body / Stainless steel mandrel | BBC-S | 6.0 | 6.0×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–34.0 | 6.1–6.2 | 11.3 × 2.1 | 3.7 | 31.0 | 7500 / 5700 |
| Open Type Blind Rivet | Stainless steel body / Stainless steel mandrel | BBC-S | 6.4 | 6.4×8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 / 35.0 / 40.0 | 1.5–33.0 | 6.5–6.6 | 12.5 × 2.7 | 3.9 | 31.0 | 8850 / 6500 |
| Sealed Type Blind Rivet | Aluminum body / Steel mandrel | ASFC | 3.2 | 3.2×6.5 / 8.0 / 9.5 / 11.0 / 12.5 | 0.5–8.0 | 3.1–3.4 | 6.2 × 1.3 | 1.85 | 26.0 | 1350 / 1100 |
| Sealed Type Blind Rivet | Aluminum body / Steel mandrel | ASFC | 4.0 | 4.0×8.0 / 9.5 / 11.0 / 12.5 / 15.0 | 1.5–10.5 | 4.1–4.2 | 8.3 × 1.6 | 2.25 | 27.0 | 2200 / 1600 |
| Sealed Type Blind Rivet | Aluminum body / Steel mandrel | ASFC | 4.8 | 4.8×8.0 / 9.5 / 11.0 / 13.0 / 14.5 / 16.0 / 18.0 / 21.0 / 25.0 | 2.0–19.0 | 4.9–5.0 | 9.8 × 2.0 | 2.75 | 28.0 | 3100 / 2200 |
| Sealed Type Blind Rivet | Aluminum body / Aluminum mandrel | AAFC | 3.2 | 3.2×6.5 / 8.0 / 9.5 / 11.0 / 12.5 | 0.5–8.0 | 3.1–3.4 | 6.2 × 1.3 | 1.85 | 26.0 | 540 / 460 |
| Sealed Type Blind Rivet | Aluminum body / Aluminum mandrel | AAFC | 4.0 | 4.0×8.0 / 9.5 / 11.0 / 12.5 / 15.0 | 1.5–10.5 | 4.1–4.2 | 8.3 × 1.6 | 2.25 | 27.0 | 760 / 720 |
| Sealed Type Blind Rivet | Aluminum body / Aluminum mandrel | AAFC | 4.8 | 4.8×8.0 / 9.5 / 11.0 / 13.0 / 14.5 / 16.0 / 18.0 / 21.0 / 25.0 | 2.0–19.0 | 4.9–5.0 | 9.8 × 2.0 | 2.75 | 28.0 | 1400 / 1100 |
| Sealed Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABFC | 3.2 | 3.2×6.5 / 8.0 / 9.5 / 11.0 / 12.5 | 0.5–8.0 | 3.1–3.4 | 6.2 × 1.3 | 1.85 | 26.0 | 1450 / 1100 |
| Sealed Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABFC | 4.0 | 4.0×8.0 / 9.5 / 11.0 / 12.5 / 15.0 | 1.5–10.5 | 4.1–4.2 | 8.3 × 1.6 | 2.25 | 27.0 | 2200 / 1600 |
| Sealed Type Blind Rivet | Aluminum body / Stainless steel mandrel | ABFC | 4.8 | 4.8×8.0 / 9.5 / 11.0 / 13.0 / 14.5 / 16.0 / 18.0 / 21.0 / 25.0 | 2.0–19.0 | 4.9–5.0 | 9.8 × 2.0 | 2.75 | 28.0 | 3100 / 2200 |
| Sealed Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSFC | 3.2 | 3.2×7.0 / 8.0 / 9.0 / 10.0 / 11.0 / 12.0 | 0.5–6.5 | 3.3–3.4 | 6.4 × 1.3 | 2.0 | 25.0 | 1300 / 1150 |
| Sealed Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSFC | 4.0 | 4.0×8.0 / 9.0 / 10.0 / 11.0 / 12.0 / 13.0 / 14.0 / 15.0 | 1.0–10.5 | 4.1–4.2 | 8.4 × 1.5 | 2.35 | 25.0 | 1700 / 1530 |
| Sealed Type Blind Rivet | Carbon steel body / Carbon steel mandrel | SSFC | 4.8 | 4.8×8.0 / 9.0 / 10.0 / 11.0 / 12.0 / 13.0 / 14.0 / 15.0 / 16.0 / 18.0 / 19.0 / 21.0 / 22.0 / 23.0 / 25.0 | 0.5–20.0 | 4.9–5.0 | 10.0 × 2.0 | 2.95 | 27.0 | 2800 / 2400 |
| Sealed Type Blind Rivet | 304 stainless body / 420 stainless mandrel | BBFC-S | 3.2 | 3.2×6.0 / 8.0 / 9.5 / 12.0 / 14.0 | 0.5–8.0 | 3.3–3.4 | 6.7 × 1.3 | 2.05 | 27.0 | 2200 / 2000 |
| Sealed Type Blind Rivet | 304 stainless body / 420 stainless mandrel | BBFC-S | 4.0 | 4.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 | 0.5–10.0 | 4.1–4.2 | 8.4 × 1.7 | 2.5 | 27.0 | 3500 / 3000 |
| Sealed Type Blind Rivet | 304 stainless body / 420 stainless mandrel | BBFC-S | 4.8 | 4.8×8.0 / 9.5 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 0.5–12.0 | 4.9–5.0 | 10.1 × 2.0 | 3.05 | 27.0 | 4400 / 4000 |
| Multi-grip Blind Rivet | Aluminum body / Steel mandrel | ASMGC | 3.2 | 3.2×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 | 1.0–12.5 | 3.3–3.4 | 6.3 × 1.3 | 2.0 | 27.0 | 850 / 650 |
| Multi-grip Blind Rivet | Aluminum body / Steel mandrel | ASMGC | 4.0 | 4.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 4.1–4.2 | 7.5 × 1.7 | 2.5 | 27.0 | 1500 / 950 |
| Multi-grip Blind Rivet | Aluminum body / Steel mandrel | ASMGC | 4.8 | 4.8×10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 | 1.5–25.0 | 4.9–5.0 | 9.5 × 2.0 | 3.0 | 27.0 | 2000 / 1320 |
| Multi-grip Blind Rivet | Aluminum body / Steel mandrel | ASMGC | 6.4 | 6.4×12.5 / 14.5 / 16.5 / 18.5 / 20.5 / 25.5 | 1.0–17.5 | 6.5–6.6 | 12.5 × 2.7 | 3.9 | 31.0 | 4000 / 3800 |
| Multi-grip Blind Rivet | Aluminum body / Stainless steel mandrel | ABMGC | 3.2 | 3.2×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 | 1.0–12.5 | 3.3–3.4 | 6.3 × 1.3 | 2.0 | 27.0 | 850 / 650 |
| Multi-grip Blind Rivet | Aluminum body / Stainless steel mandrel | ABMGC | 4.0 | 4.0×6.0 / 8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 | 1.0–16.5 | 4.1–4.2 | 7.5 × 1.7 | 2.5 | 27.0 | 1500 / 950 |
| Multi-grip Blind Rivet | Aluminum body / Stainless steel mandrel | ABMGC | 4.8 | 4.8×10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 25.0 / 30.0 | 1.5–25.0 | 4.9–5.0 | 9.5 × 2.0 | 3.0 | 27.0 | 2000 / 1320 |
| Multi-grip Blind Rivet | Aluminum body / Stainless steel mandrel | ABMGC | 6.4 | 6.4×12.5 / 14.5 / 16.5 / 18.5 / 20.5 / 25.5 | 1.0–17.5 | 6.5–6.6 | 12.5 × 2.7 | 3.9 | 31.0 | 4000 / 3800 |

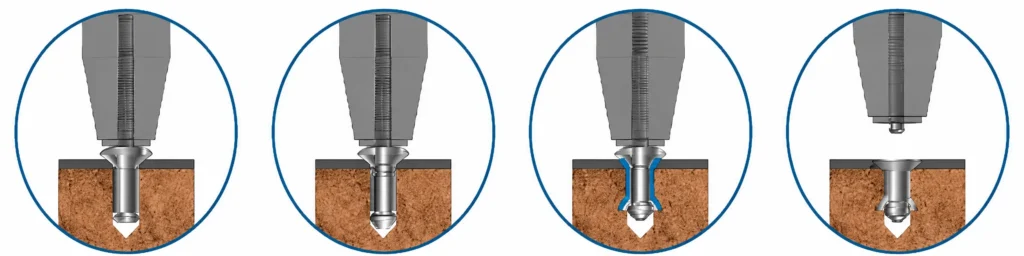

Steps of Blind Rivet Installation
- Insert the rivet into the pre-drilled hole, ensuring that the rivet head sits flush against the workpiece.
- Place the rivet gun’s nozzle over the rivet mandrel and hold the tool vertically.
- Activate the rivet gun and pull the rivet mandrel to expand the rivet body and secure the workpiece.
- Once the rivet mandrel breaks off, the riveting is complete. Check that the rivet is secure and flush.
Countersunk Pop Rivets Manufacturing You Can Trust
When you source Countersunk Pop Rivets, you care about more than just the unit price. You also need to know whether the countersunk head fits properly, whether the rivet dimensions are consistent, whether the grip range matches your sheet thickness, and whether the finished surface remains clean and flat after installation. Rivmate provides reliable countersunk pop rivet manufacturing and bulk supply services for overseas fastener distributors, OEM manufacturers, sheet metal fabricators, and industrial assembly customers.
- Capable of meeting long-term, stable procurement requirements
- Covering common diameters, lengths, head sizes and riveting ranges
- Support for OEM packaging and bulk order management
Through controlled production, size inspection, and batch management, Rivmate helps ensure that your Countersunk Pop Rivets maintain consistent dimensions, reliable fastening performance, and a cleaner finished appearance. Whether your project requires standard countersunk rivets or customized specifications, we can support your procurement with stable quality and efficient delivery.
Stable Bulk Supply for Countersunk Pop Rivets
When purchasing Countersunk Pop Rivets in bulk, you need more than a standard fastener supplier. You need stable product specifications, accurate countersunk head control, reliable surface treatment, and consistent delivery for repeat orders.Rivmate focuses on providing reliable bulk supply services for countersunk pop rivets, helping you meet long-term procurement needs for sheet metal assembly, equipment panels, metal housings, control cabinets, door structures, and industrial metal components.
- Reliable supply for bulk and repeat orders
- Available in multiple materials, sizes, lengths, and finishes
- Suitable for applications requiring flush and clean surface appearance
Through stable production planning, dimensional control, and batch traceability, Rivmate helps ensure that your Countersunk Pop Rivets remain consistent in appearance, assembly performance, and fastening reliability.Whether you need to restock standard sizes or source customized specifications for a specific project, we help you reduce sourcing risks, maintain stable supply, and support your customers with more consistent riveting quality.
Applications of Countersunk Pop Rivets

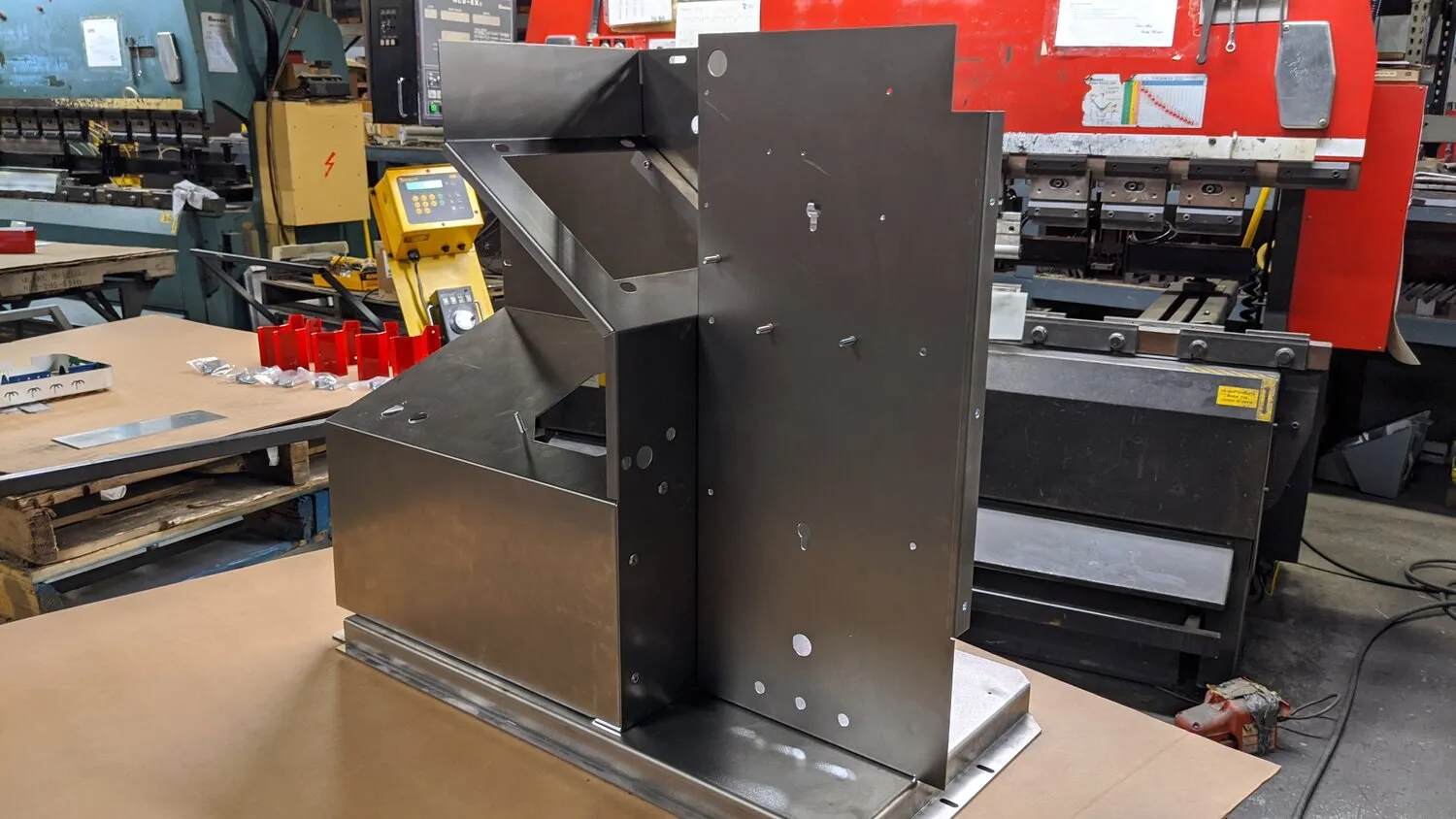

Sheet Metal Assembly
Countersunk Pop Rivets are suitable for joining thin sheet metal parts where the finished surface needs to remain flat and clean. After installation, the countersunk head helps reduce surface protrusion, making the assembled part safer and more visually consistent.

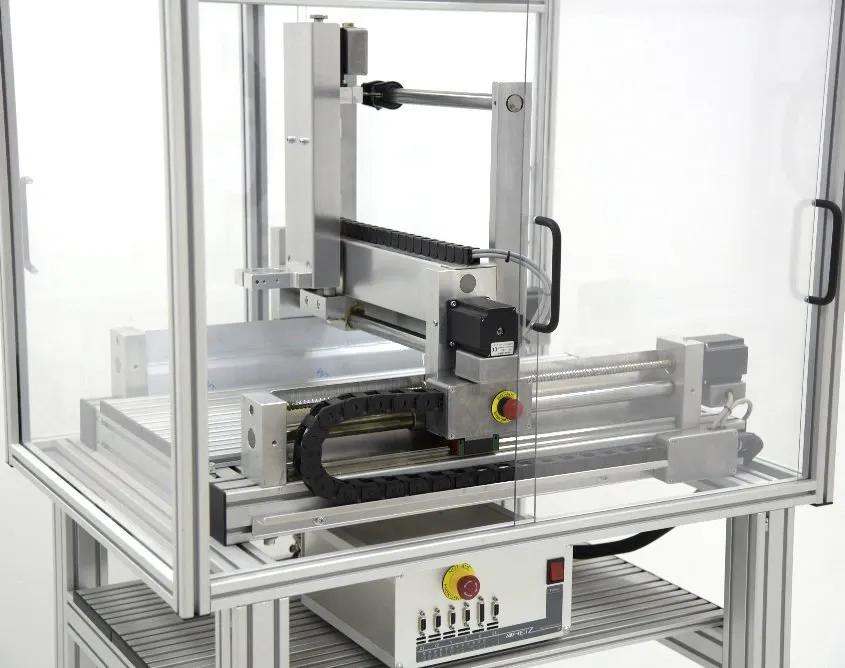

Machinery Housings
For machinery housings and protective covers, Countersunk Pop Rivets help create a cleaner outer surface while maintaining reliable fastening performance. They are suitable for equipment structures where exposed rivet heads may affect appearance, handling, or assembly space.

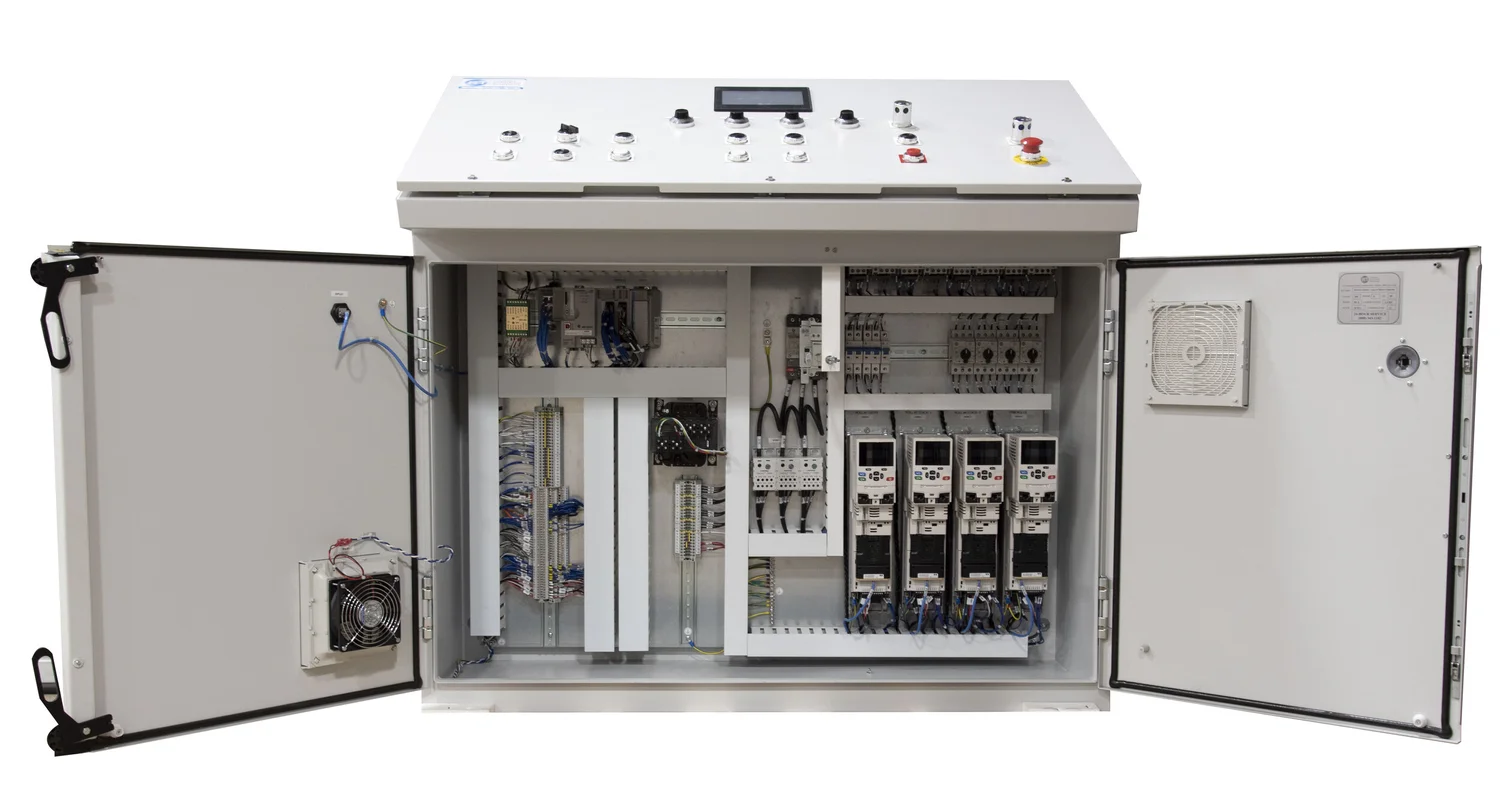

Control Cabinets And Electrical Enclosures
Countersunk Pop Rivets are widely used in control cabinets and electrical enclosures where flat panels and neat external surfaces are important. The low-profile head design helps reduce interference during installation and improves the overall appearance of the cabinet structure.
Door Panels And Metal Frames
When used in door panels and metal frame structures, Countersunk Pop Rivets provide a flatter riveting finish and help prevent raised rivet heads from affecting opening, closing, or surface contact. They are suitable for metal door assemblies that require both fastening stability and a clean appearance.
Decorative Metal Panels
For decorative panels and visible metal surfaces, Countersunk Pop Rivets help improve the appearance of the final product. The countersunk head can sit lower on the surface, making the riveting point less noticeable and more suitable for products with higher visual requirements.
Get An Instant Quote Now
1.Where to find heavy-duty countersunk blind rivets for industrial use
You can purchase heavy-duty countersunk blind rivets from a professional rivet manufacturer rather than just a general fastener distributor.
Rivmate offers countersunk pop rivets for industrial sheet metal, equipment enclosures, control cabinets, mechanical structural components, and automotive parts, and provides sample testing, specification matching, bulk supply, and OEM packaging services.
2.What services offer custom color coating for countersunk blind rivets?
Rivmate can provide custom color coating services for countersunk blind rivets, including color matching, sample confirmation, surface treatment solution selection, and bulk production. You can choose black, white, grey, or other customized colors according to your product appearance, application environment, and branding requirements.
3.Where to find countersunk blind rivet packaging solutions tailored for retail sales?
You can source countersunk blind rivet packaging solutions suitable for retail sales from a rivet manufacturer with OEM packaging customization capabilities. Rivmate can provide retail packaging solutions for Countersunk Blind Rivets, including small box packaging, plastic box packaging, color box packaging, label customization, barcode stickers, and branded outer carton design, helping your products better fit hardware stores, e-commerce platforms, and end-user retail sales.
4.Where to purchase countersunk blind rivets in large quantities?
You can purchase countersunk blind rivets in bulk from factory-direct suppliers such as Rivmate. Compared to standard traders, factory-direct suppliers are generally better suited to long-term bulk orders, as they have greater control over production schedules, batch quality, packaging requirements and lead times.
5.Downsides of countersunk blind rivet applications.
Countersunk blind rivets are suitable for applications requiring a flush surface, but they are not necessarily suitable for load-bearing structures, soft materials, or assembly scenarios where countersinking is not possible. If your product is primarily used with thin plastic sheets, wooden boards, composite materials or materials that are prone to tearing, standard countersunk rivets may not provide a sufficiently large bearing area.
In such cases, you may wish to consider using large-flange rivets, lantern-head rivets or flower-head rivets to achieve a larger support area on the back or front.
Countersunk Pop Rivets
Watching our Countersunk Pop Rivets video can help you understand how this product performs in real assembly applications. After installation, the countersunk design helps reduce surface protrusion, making the finished product flatter, cleaner, and neater. Through production, inspection, and riveting test demonstrations, we help you evaluate product quality and bulk purchasing suitability with greater confidence.
Rivmate Mono-Lock Rivet: Mandrel testing
Rivmate Mono-Lock Rivet: Shaft fracture strength test
Resource Center
Access helpful materials to support your project planning and product selection. Download documents for reference and on-site use.
Rivet Catalog
Browse our full blind rivet catalog including product types, specifications, and application examples.I am Trailer Box Description Text. You can change me anytime from settings.

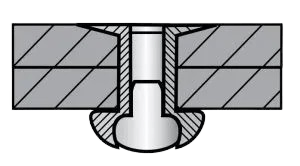

Countersunk Pop Rivets Drawing
Download the technical drawings for the rivets, which include dimensions, internal structure, and basic product information
What is a countersunk blind rivet?
A countersunk blind rivet is a type of blind rivet whose head can sit recessed into or flush with the material surface after installation. Its main feature is a low head height, which helps create a flatter, cleaner, and neater finished surface after riveting.
This type of rivet is suitable for products that require a clean appearance, flush surface, or compact assembly space, such as metal panels, equipment housings, cabinets, enclosures, and industrial sheet metal parts.
When to choose countersunk over standard head rivets?
Countersunk rivets should be selected when the application requires a low head height, a smooth surface, reduced risk of snagging, or an improved aesthetic appearance. Standard-head rivets are typically more suitable when the application prioritizes general joint strength, ease of installation, and a larger head contact area.
How to choose the right countersunk blind rivet for aluminum panels?
When purchasing countersunk blind rivets for aluminum panels, it is not recommended to base your decision solely on price. You need to verify whether the supplier can provide accurate dimensional matching, material recommendations, countersink control, and sample testing support. The most common issues in aluminum sheet applications include mismatched countersinks, uneven rivet heads, indentations around the hole edges, and inconsistent dimensions across batches.
