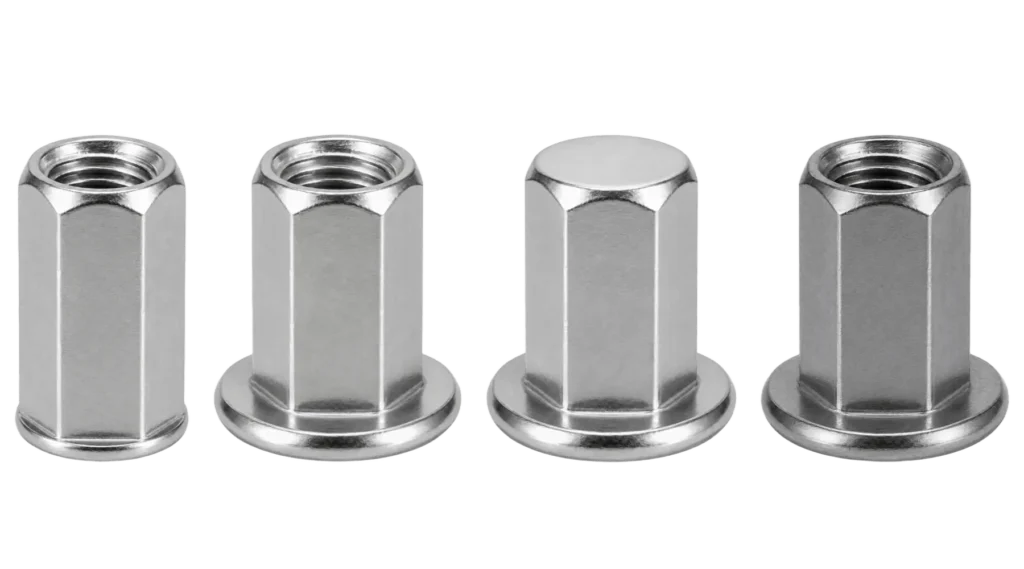

full hex rivet nuts
Rivmate offers full-hex rivet nuts designed for installation in hexagonal holes. The fully hexagonal body creates a mechanical interlock with the hex hole, enhancing resistance to rotation.
- Enhanced anti-rotation performance
- Suitable for High-Torque Assembly
- Better Suited for Vibration and Repeated Maintenance Scenarios
Why Choose Our full hex rivet nuts
- Fully hexagonal body for improved resistance to rotation
- Suitable for high-torque assembly applications
- Creates a stable internal thread in thin sheet metal
Rivmate —— Your Professional Customized full hex rivet nuts Manufacturer
As a full hex rivet nuts professional manufacturer, Rivmate offers both standard and custom full hex rivet nuts. We can customize full hex rivet nuts to meet your specifications based on the material, thickness, hole depth, thread specifications, and sample drawings you provide.
Our customization services also include surface treatments and packaging options. If you are unsure about the riveting solution for your project, please contact Rivmate. We have a team of professional engineers who will work with you one-on-one to develop a customized riveting solution.
Classified by Material
Rivmate’s full-hex rivet nuts are available in both carbon steel and stainless steel. You can choose the material based on your assembly strength requirements, environmental conditions, and cost considerations.

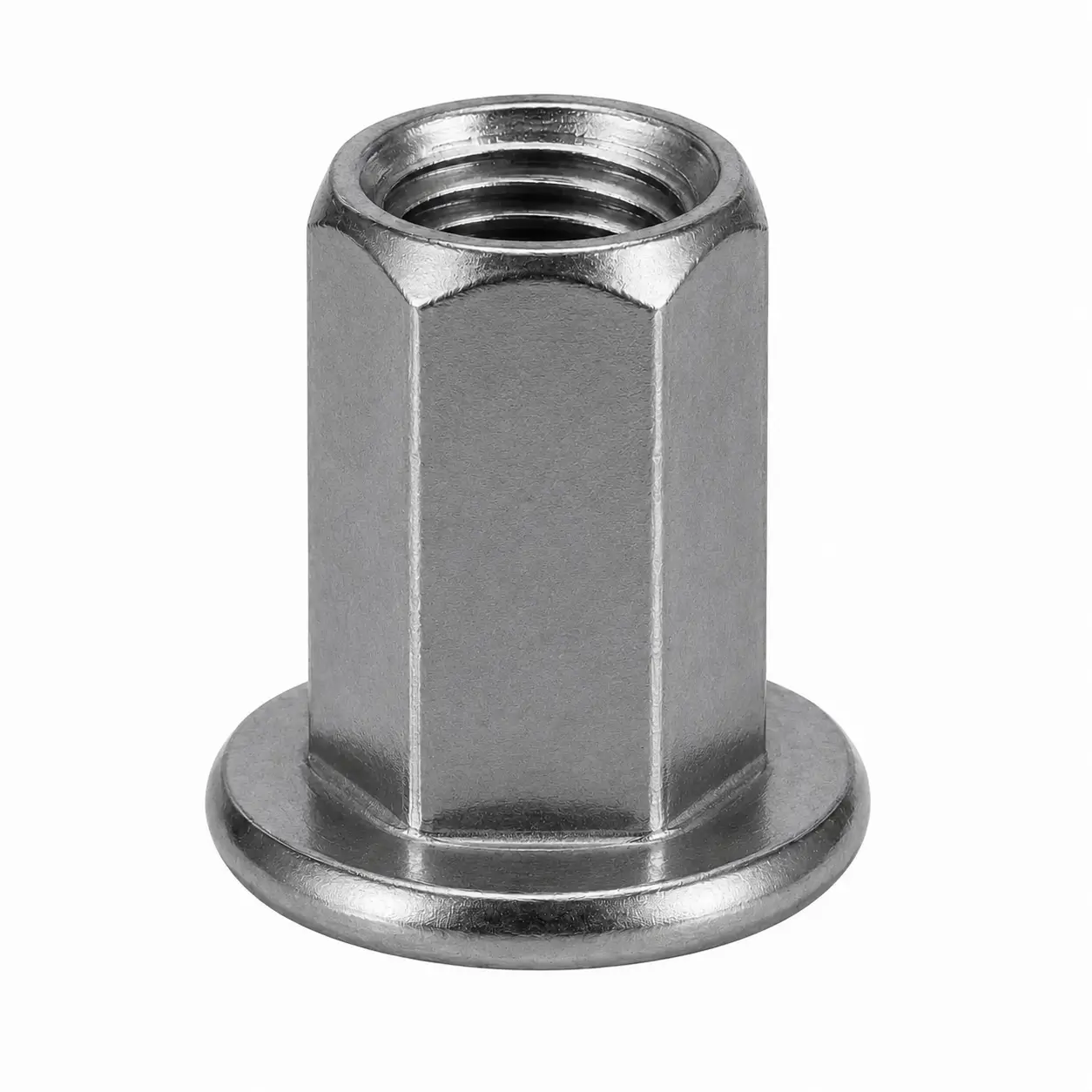

Carbon Steel Full Hex Rivet Nut
Carbon Steel Hex Rivet Nuts are suitable for applications that require mechanical strength, cost-effective bulk purchasing, and reliable industrial assembly. Carbon steel is the more cost-effective option, especially for large bulk orders.

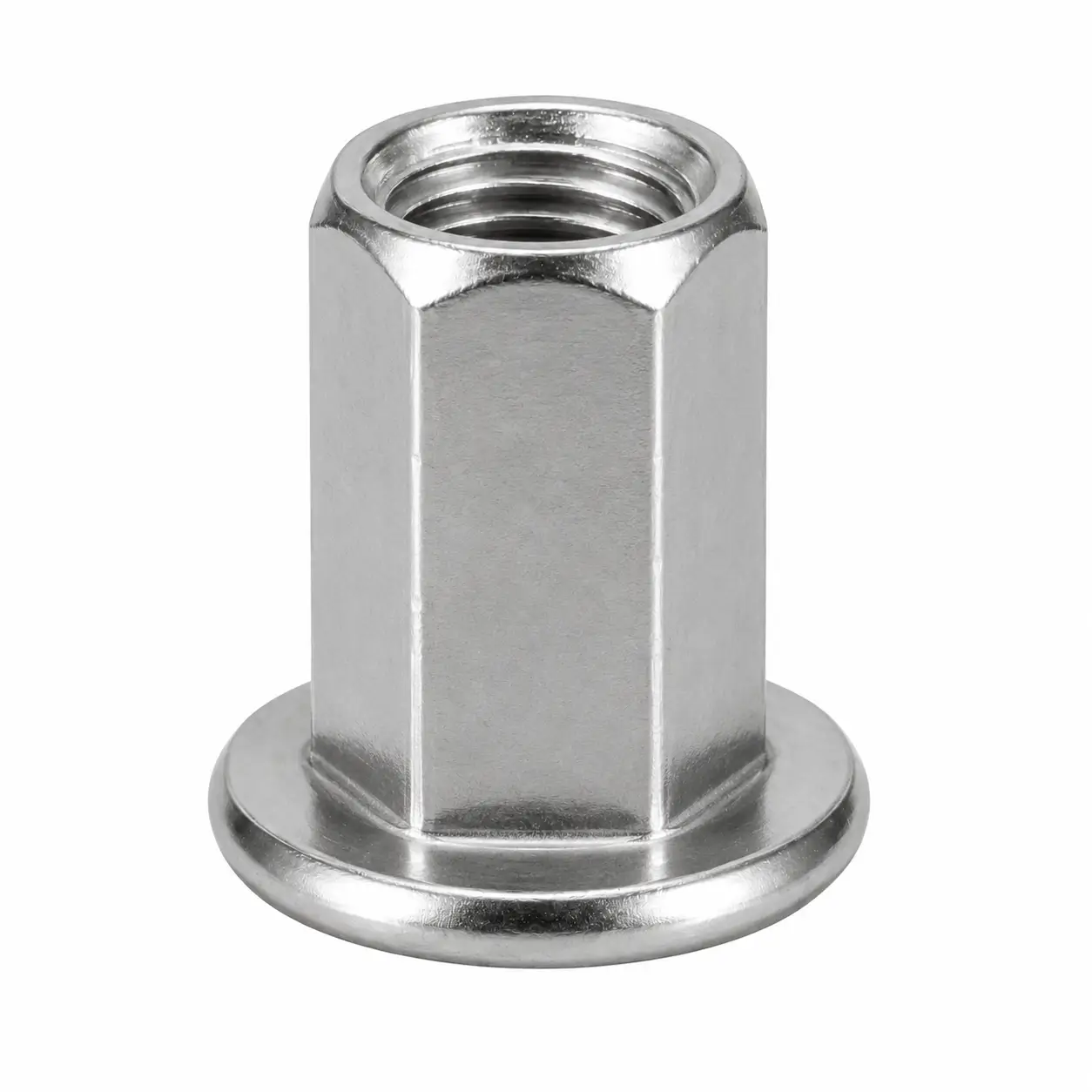

Stainless Steel Full Hex Rivet Nut
Stainless steel Hex Rivet Nuts suited for projects with higher requirements for corrosion resistance, long service life, for outdoor environments. They are in industrial assembly applications where rust prevention is critical.
Classified by size
Rivmate’s full-hex rivet nuts are available in a wide range of common thread sizes. Customers can select the appropriate thread size based on mounting hole dimensions, sheet metal thickness, tightening torque, and on-site conditions.
M3 Full Hex Rivet Nut
The grip range for this size is 0.5–3.0 mm. It is suitable for precision assembly applications with limited space, small connection points, and low load requirements.
M8 Full Hex Rivet Nut
The grip range for this size is 1–5.5 mm. It is suitable for industrial applications such as equipment housings and structural support components that require higher load-bearing capacity and higher torque.
M4 Full Hex Rivet Nut
The grip range for this size is 0.5–4.0mm. It is suitable for lightweight connections and provides a stable internal thread while maintaining a low-profile appearance.
M10 Full Hex Rivet Nut
The grip range for this size is 1–6 mm. It is suitable for large-scale equipment, heavy-duty sheet metal structures, and other applications requiring larger bolt connections and higher-strength assemblies.
M5 Full Hex Rivet Nut
The grip range for this size is 0.5–5.0 mm. It has a wide range of applications and is suitable for most medium-strength industrial sheet metal assembly needs.
M12 Full Hex Rivet Nut
The grip range for this size is 2.0–8.0mm. It is suitable for high-strength fastening applications; the appropriate model should be selected based on the actual board thickness, hole diameter, and installation conditions.
M6 Full Hex Rivet Nut
The grip range for this size is 0.5–5.5 mm. It provides stronger threaded connections and is suitable for applications requiring higher assembly strength.
Classified by Bottom Structure
Rivmate offers Open-End Full Hex Rivet Nuts and Closed-End Full Hex Rivet Nuts. Customers can select the appropriate bottom design based on their dust and splash protection requirements.
Open End Full Hex Rivet Nut
The Open End Hex Rivet Nut features an open bottom design, making it suitable for general industrial sheet metal assembly and standard threaded connections.

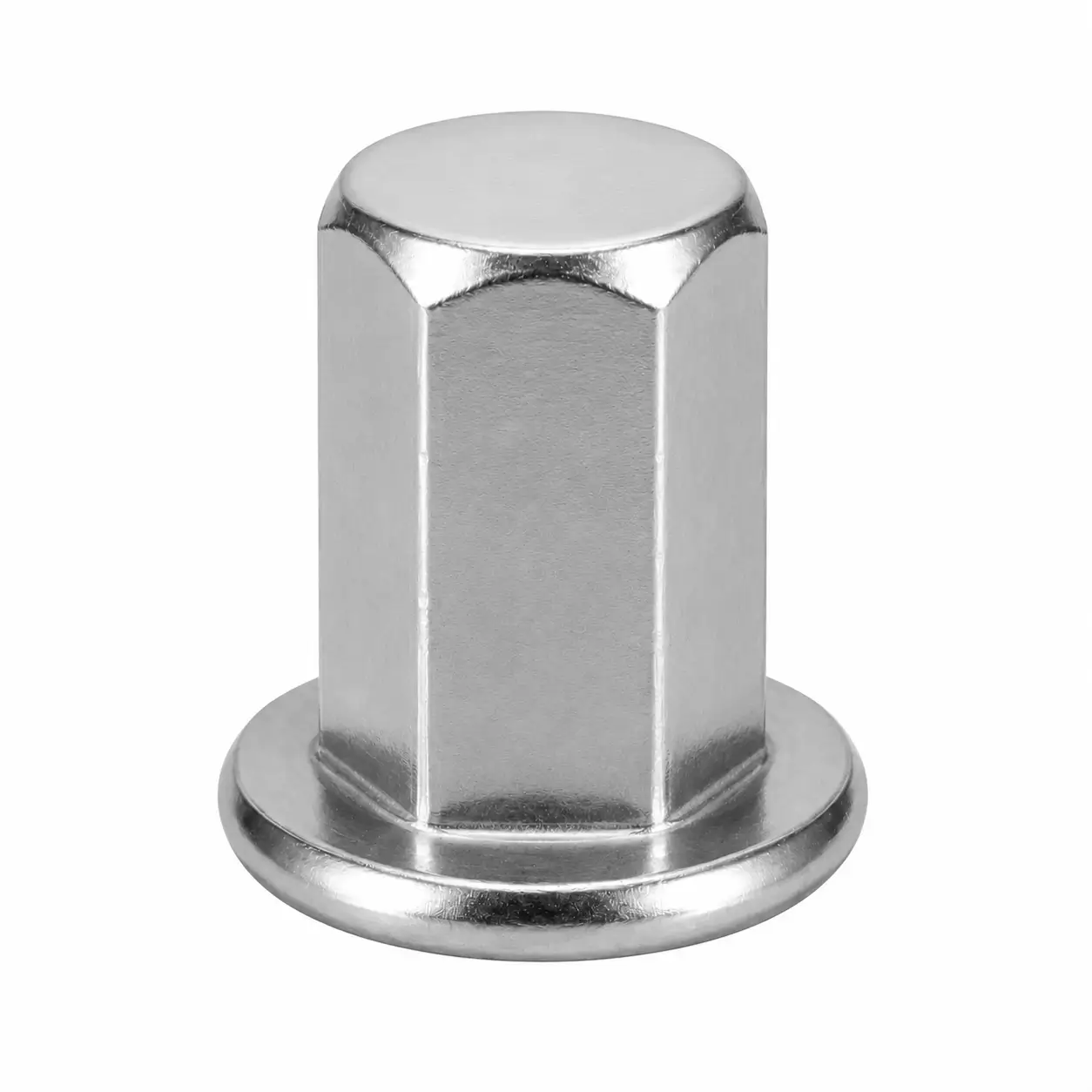

Closed End Full Hex Rivet Nut
The Closed End Hex Rivet Nut has a closed bottom design, which effectively helps prevent dust, liquids, oil, or other contaminants from entering through the bottom of the thread.
Classified by head shape
Rivmate offers Flat Head Full Hex Rivet Nuts and Reduced Head Full Hex Rivet Nuts. Customers can select the appropriate head type based on assembly surface requirements, contact area, and aesthetic needs.
Flat Head Hex Rivet Nut
The Flat Head Hex Rivet Nut provides stable support surface after installation, helping to distribute clamping force across surface panel. It is suitable for industrial assembly applications such as electrical cabinets and mechanical enclosures.

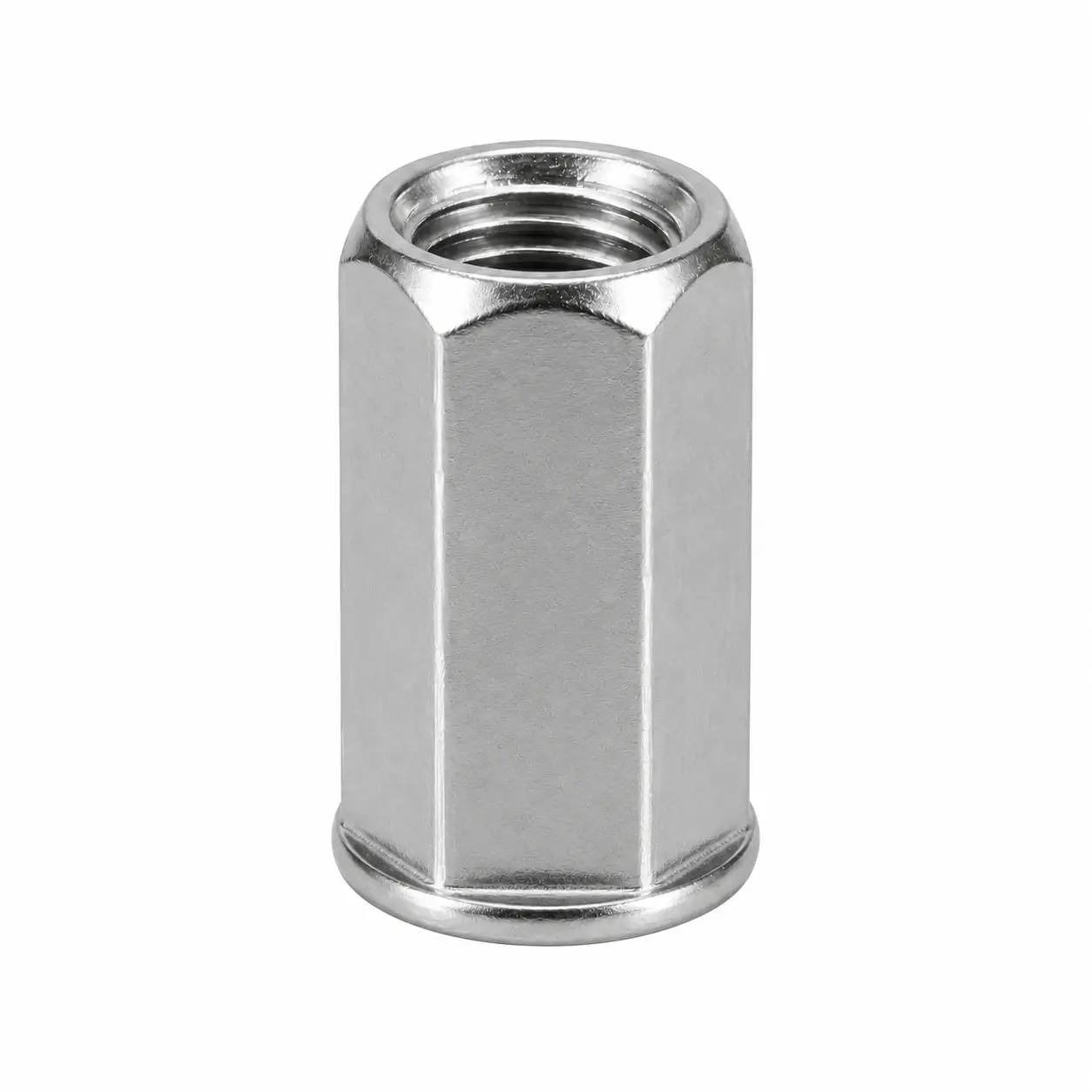

Reduced Head Hex Rivet Nut
The Reduced Head Hex Rivet Nut has a smaller head diameter than the standard flat-head design, reducing the visible head area after installation. It is suitable for assembly locations with limited installation space or where a clean, neat appearance is required.
| Material | Head Type | Body Type | Bottom Structure | Thread | Grip Range Min | Grip Range Max | Hole Size | A Ref. | D | DK | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon Steel | Flat Head | Full Hex Body | Open End | M3 | 0.50 | 1.50 | 5.00 | 5.50 | 4.90 | 7.50 | 0.80 | 8.50 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M3 | 1.50 | 3.00 | 5.00 | 5.50 | 4.90 | 7.50 | 0.80 | 11.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M4 | 0.50 | 2.00 | 6.00 | 6.50 | 5.90 | 9.00 | 0.80 | 11.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M4 | 2.00 | 4.00 | 6.00 | 6.50 | 5.90 | 9.00 | 0.80 | 13.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M5 | 0.50 | 2.50 | 7.00 | 8.00 | 6.90 | 10.00 | 1.00 | 14.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M5 | 2.50 | 5.00 | 7.00 | 8.00 | 6.90 | 10.00 | 1.00 | 16.50 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M6 | 0.50 | 3.00 | 9.00 | 8.50 | 8.90 | 12.70 / 13.00 | 1.35 | 15.00 / 16.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M6 | 3.00 | 5.50 | 9.00 | 8.50 | 8.90 | 12.70 / 13.00 | 1.35 | 19.50 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M8 | 1.00 | 3.50 | 11.00 | 10.50 | 10.90 | 16.00 | 1.50 | 18.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M8 | 3.50 | 5.50 | 11.00 | 10.50 | 10.90 | 16.00 | 1.50 | 21.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M10 | 1.00 | 3.50 | 13.00 | 12.50 | 12.90 | 18.00 / 19.00 | 1.70 | 21.00 / 23.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M10 | 3.50 | 6.00 | 13.00 | 12.50 | 12.90 | 19.00 | 1.70 | 24.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M10 | 1.00 | 3.50 | 12.00 | 13.50 | 11.90 | 18.00 | 1.70 | 21.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M10 | 3.50 | 6.00 | 12.00 | 13.50 | 11.90 | 18.00 | 1.70 | 22.50 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M12 | 1.00 | 4.00 | 15.00 | 14.00 | 14.90 | 20.00 | 1.70 | 23.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M12 | 2.00 | 5.00 | 16.00 | 16.50 | 15.90 | 23.00 | 2.00 | 27.00 |
| Carbon Steel | Flat Head | Full Hex Body | Open End | M12 | 5.00 | 8.00 | 16.00 | 16.50 | 15.90 | 23.00 | 2.00 | 30.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M4 | 0.50 | 2.00 | 6.00 | 11.00 | 5.90 | 9.00 | 1.00 | 15.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M4 | 2.00 | 4.00 | 6.00 | 11.00 | 5.90 | 9.00 | 1.00 | 17.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M5 | 0.50 | 2.50 | 7.00 | 13.50 | 6.90 | 10.00 | 1.00 | 18.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M5 | 2.50 | 5.00 | 7.00 | 13.50 | 6.90 | 10.00 | 1.00 | 20.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M6 | 0.50 | 3.00 | 9.00 | 17.00 | 8.90 | 12.70 | 1.50 | 23.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M6 | 3.00 | 5.50 | 9.00 | 17.00 | 8.90 | 12.70 | 1.50 | 25.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M8 | 1.00 | 3.50 | 11.00 | 19.00 | 10.90 | 16.00 | 1.50 | 26.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M8 | 3.50 | 5.50 | 11.00 | 19.00 | 10.90 | 16.00 | 1.50 | 29.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M10 | 1.00 | 4.00 | 13.00 | 25.00 | 12.90 | 19.00 | 2.00 | 33.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M10 | 4.00 | 6.00 | 13.00 | 25.00 | 12.90 | 19.00 | 1.80 | 35.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M12 | 2.00 | 5.00 | 16.00 | 25.00 | 15.90 | 23.00 | 2.00 | 35.00 |
| Carbon Steel | Flat Head | Full Hex Body | Closed End | M12 | 5.00 | 8.00 | 16.00 | 25.00 | 15.90 | 23.00 | 2.00 | 38.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M3 | 0.50 | 1.50 | 5.00 | 5.00 | 4.90 | 6.00 | 0.50 | 8.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M3 | 1.50 | 3.00 | 5.00 | 5.00 | 4.90 | 6.00 | 0.50 | 10.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M4 | 0.50 | 2.50 | 6.00 | 6.70 | 5.90 | 7.00 | 0.50 | 11.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M4 | 2.50 | 5.00 | 6.00 | 6.70 | 5.90 | 7.00 | 0.50 | 13.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M5 | 0.50 | 3.00 | 7.00 | 9.00 | 6.90 | 8.00 | 0.50 | 14.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M5 | 3.00 | 5.00 | 7.00 | 9.00 | 6.90 | 8.00 | 0.50 | 16.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M6 | 1.00 | 3.50 | 9.00 | 10.00 | 8.90 | 10.00 | 0.60 | 16.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M6 | 3.50 | 6.00 | 9.00 | 10.00 | 8.90 | 10.00 | 0.60 | 18.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M8 | 1.00 | 4.00 | 11.00 | 11.50 | 10.90 | 12.00 | 0.65 | 18.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M8 | 4.00 | 6.00 | 11.00 | 11.50 | 10.90 | 12.00 | 0.65 | 20.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M10 | 1.00 | 3.50 | 13.00 | 12.50 | 12.90 | 14.50 | 0.75 | 19.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M10 | 3.50 | 6.00 | 13.00 | 14.50 | 12.90 | 14.50 | 0.75 | 23.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M10 | 1.00 | 3.50 | 12.00 | 12.50 | 11.90 | 13.50 | 0.75 | 20.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M10 | 3.50 | 6.00 | 12.00 | 14.50 | 11.90 | 13.50 | 0.75 | 23.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M12 | 1.00 | 4.00 | 16.00 | 15.50 | 15.90 | 17.50 | 1.10 | 25.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M12 | 4.00 | 7.00 | 16.00 | 15.50 | 15.90 | 17.50 | 1.10 | 28.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Open End | M12 | 1.00 | 4.00 | 15.00 | 15.50 | 14.90 | 17.00 | 1.10 | 22.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M4 | 0.50 | 2.50 | 6.00 | 12.30 | 5.90 | 7.00 | 0.50 | 16.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M4 | 2.50 | 4.00 | 6.00 | 12.30 | 5.90 | 7.00 | 0.50 | 18.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M5 | 0.50 | 3.00 | 7.00 | 15.20 | 6.90 | 8.00 | 0.50 | 20.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M5 | 3.00 | 5.00 | 7.00 | 15.20 | 6.90 | 8.00 | 0.50 | 23.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M6 | 0.50 | 3.50 | 9.00 | 14.50 | 8.90 | 10.00 | 0.60 | 20.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M6 | 3.50 | 5.50 | 9.00 | 14.50 | 8.90 | 10.00 | 0.60 | 23.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M8 | 1.00 | 4.00 | 11.00 | 17.00 | 10.90 | 12.00 | 0.65 | 23.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M8 | 4.00 | 6.00 | 11.00 | 17.00 | 10.90 | 12.00 | 0.65 | 25.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M10 | 1.00 | 4.50 | 13.00 | 20.00 | 12.90 | 14.50 | 0.75 | 28.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M10 | 4.00 | 6.00 | 13.00 | 20.00 | 12.90 | 14.50 | 0.80 | 30.50 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M12 | 1.00 | 4.00 | 16.00 | 20.00 | 15.90 | 17.50 | 1.10 | 34.00 |
| Carbon Steel | Reduced Head | Full Hex Body | Closed End | M12 | 4.00 | 7.00 | 16.00 | 20.00 | 15.90 | 17.50 | 1.10 | 36.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Open End | M3 | 0.50 | 1.50 | 5.00 | 5.50 | 4.90 | 7.50 | 0.80 | 9.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Open End | M4 | 0.50 | 2.00 | 6.00 | 6.50 | 5.90 | 9.00 | 0.80 | 11.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Open End | M5 | 0.50 | 2.50 | 7.00 | 8.00 | 6.90 | 10.00 | 1.00 | 14.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Open End | M6 | 0.50 | 3.00 | 9.00 | 8.50 | 8.90 | 12.70 / 13.00 | 1.35 | 15.00 / 16.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Open End | M8 | 1.00 | 3.50 | 11.00 | 10.50 | 10.90 | 16.00 | 1.50 | 18.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Open End | M10 | 1.00 | 3.50 | 13.00 | 12.50 | 12.90 | 18.00 / 19.00 | 1.70 | 21.00 / 23.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Open End | M12 | 1.00 | 4.00 | 15.00 | 14.00 | 14.90 | 20.00 | 1.70 | 23.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Open End | M12 | 2.00 | 5.00 | 16.00 | 16.50 | 15.90 | 23.00 | 2.00 | 27.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Closed End | M4 | 0.50 | 2.00 | 6.00 | 11.00 | 5.90 | 9.00 | 1.00 | 15.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Closed End | M5 | 0.50 | 2.50 | 7.00 | 13.50 | 6.90 | 10.00 | 1.00 | 18.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Closed End | M6 | 0.50 | 3.00 | 9.00 | 17.00 | 8.90 | 12.70 | 1.50 | 23.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Closed End | M8 | 1.00 | 3.50 | 11.00 | 19.00 | 10.90 | 16.00 | 1.50 | 26.00 |
| Stainless Steel 304 / 316 | Flat Head | Full Hex Body | Closed End | M10 | 1.00 | 4.00 | 13.00 | 25.00 | 12.90 | 19.00 | 2.00 | 33.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Open End | M3 | 0.50 | 1.50 | 5.00 | 5.00 | 4.90 | 6.00 | 0.50 | 8.50 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Open End | M4 | 0.50 | 2.50 | 6.00 | 6.70 | 5.90 | 7.00 | 0.50 | 11.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Open End | M5 | 0.50 | 3.00 | 7.00 | 9.00 | 6.90 | 8.00 | 0.50 | 14.50 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Open End | M6 | 1.00 | 3.50 | 9.00 | 10.00 | 8.90 | 10.00 | 0.60 | 16.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Open End | M8 | 1.00 | 4.00 | 11.00 | 11.50 | 10.90 | 12.00 | 0.65 | 18.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Open End | M10 | 1.00 | 3.50 | 12.00 | 12.50 | 11.90 | 13.50 | 0.75 | 19.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Open End | M12 | 1.00 | 4.00 | 16.00 | 15.50 | 15.90 | 17.50 | 1.00 | 25.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Closed End | M4 | 0.50 | 2.50 | 6.00 | 12.30 | 5.90 | 7.00 | 0.50 | 16.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Closed End | M5 | 0.50 | 3.00 | 7.00 | 15.20 | 6.90 | 8.00 | 0.50 | 20.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Closed End | M6 | 0.50 | 3.50 | 9.00 | 14.50 | 8.90 | 10.00 | 0.60 | 20.50 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Closed End | M8 | 1.00 | 4.00 | 11.00 | 17.00 | 10.90 | 12.00 | 0.65 | 23.00 |
| Stainless Steel 304 / 316 | Reduced Head | Full Hex Body | Closed End | M10 | 1.00 | 4.50 | 13.00 | 20.00 | 12.90 | 14.50 | 0.75 | 28.50 |
Steps of Rivet Nut Installation
- Insert the rivet nut into the pre-drilled hole, ensuring that the head of the rivet nut is flush with the surface of the workpiece.
- Screw the pull rod of the rivet nut gun into the internal threads of the rivet nut, and hold the tool vertically.
- Activate the rivet nut gun and pull the rod to expand and deform the tail end of the rivet nut, clamping it securely to the workpiece.
- Once riveting is complete, retract the rod in the opposite direction. Check that the rivet nut is secure and confirm that the head is flush with the surface.
Our Certificate
As a professional full hex rivet nuts manufacturer and supplier, Rivmate holds a full suite of certifications and maintains a comprehensive quality management system. We strictly adhere to the ISO 9001 Quality Management System, standardizing the production process for full hex rivet nuts from raw materials to finished products to ensure consistency in bulk orders. For the automotive industry, we comply with the IATF 16949 Automotive Quality Management System to meet more stringent quality management requirements.
- Comprehensive certification system
- Consistent product specifications across batches
- Traceability of batch orders
Regarding production environment management and workplace safety, Rivmate also complies with ISO 14001 and ISO 45001. Upon request, Rivmate can provide the relevant quality documentation to support these standards.
Full Hex Rivet Nuts Testing
Rivmate is equipped with a dedicated testing laboratory for full hex rivet nuts, featuring 13 specialized test procedures. We conduct installation tests, anti-rotation tests, pull-out tests, surface treatment inspections, and salt spray tests according to customer requirements. We strictly control the consistency of dimensions, threads, appearance, and packaging throughout the mass production process.
- 99.9% Pass Rate
- 13 Inspection Procedures
- Ensures Consistent Mechanical Interlock
Full hex rivet nuts are frequently used in applications involving high torque, vibration, thin-gauge sheet metal connections, and repeated assembly and disassembly. Rivmate focuses on testing key metrics such as hex body size, thread quality, grip range, installation performance, spin-out resistance, and pull-out strength. This helps customers reduce assembly risks and enhance long-term reliability.
Applications of full hex rivet nuts
Full hex rivet nuts are suitable for sheet metal structures with specific requirements for fastening strength, anti-rotation performance, and assembly stability. Their full hexagonal shape allows them to effectively interlock with hexagonal holes after installation. Compared to standard round rivet nuts, they offer superior anti-rotation performance.
Automotive Parts Assembly
During automotive assembly, components are subject to vibration, repeated disassembly and reassembly, and high bolt tightening torques. The full hexagonal body of full hex rivet nuts engages with the hexagonal holes, thereby improving rotational stability.
Industrial Equipment Enclosures
This type of equipment has certain requirements for the stability of threaded connections. Full-hex rivet nuts provide more stable threaded fastening points for equipment panels that require repeated assembly and disassembly. They are suitable for frequent maintenance.
HVAC Equipment
HVAC equipment is subject to fan vibration, equipment vibration, and long-term outdoor or semi-outdoor use. Full hex rivet nuts are more suitable than standard round rivet nuts, providing a more stable threaded connection.
Agricultural Machinery
Agricultural machinery is often exposed to intense vibration, impact, dust, mud, and outdoor environments. Full hex rivet nuts are better suited for these harsh operating conditions. They make maintenance and disassembly more convenient and do not suffer from rotational failure.
Get An Instant Quote Now
How to properly install a full hex rivet nut?
First, you need to drill a hexagonal hole of the appropriate size and confirm that the sheet thickness matches the grip range. When inserting the full hex rivet nut, make sure the head is flush and not crooked.
Finally, use the appropriate rivet nut installation tool to avoid applying too much or too little force. After installation, you must check that it is secure.
What types of materials can full hex rivet nuts be used in?
Full hex rivet nuts are best suited for use with thin metal sheets and sheet metal parts. This includes carbon steel, galvanized steel, stainless steel, and aluminum sheets.
Are full hex rivet nuts suitable for automotive repair applications?
Yes, full hex rivet nuts are suitable for many automotive repair and bodywork assembly applications. Vehicles are often subjected to vibration during use and require frequent maintenance.
The full hexagonal body of full hex rivet nuts engages mechanically with hexagonal holes, significantly improving anti-rotation performance and preventing the rivet nuts from turning during subsequent maintenance.
What are the differences between full hex and half hex rivet nuts?
Full hex rivet nuts feature a full hexagonal body design, offering superior resistance to rotation.
Half hex rivet nuts feature a half-hexagonal design. They are better suited for applications requiring a balance between moderate torque and cost.
How to Quickly Get a Prototype of a Full Hex Rivet Nut
If you have sample drawings with specific dimensions, hole locations, and structural requirements, you can provide them to the manufacturer.
If you do not have drawings, you will need to provide the hexagonal hole dimensions, sheet thickness, grip range, material, head type, and detailed information about the base structure.
Resource Center
Access helpful materials to support your project planning and product selection. Download documents for reference and on-site use.
Rivet Nut Catalog
Browse our full blind rivet catalog including product types, specifications, and application examples.I am Trailer Box Description Text. You can change me anytime from settings.
Full Hex Rivet Nuts Drawing
Download the technical drawings for the rivets, which include dimensions, internal structure, and basic product information
What Are Full Hex Rivet Nuts？
Full hex rivet nuts are rivet nuts with a fully hexagonal outer body; they are also known as full hex body rivet nuts or full hex threaded inserts.
Before installing full hex rivet nuts, a hexagonal hole of the appropriate size must be machined into the sheet metal. The full hexagonal body fits snugly against the walls of the hexagonal hole, preventing the rivet nut from rotating inside the hole. Therefore, compared to standard round-body rivet nuts, full hex rivet nuts offer better resistance to rotation.
What are the main advantages of full hex rivet nuts?
1. Enhanced anti-rotation performance
Because the body of a full hex rivet nut features a full hexagonal structure, once installed in a hexagonal hole, it forms a mechanical lock with the hole walls
2. Suitable for High-Torque Assembly
In applications such as automotive components, industrial equipment, and electrical enclosures, rivet nuts often rotate along with the bolts during installation or maintenance. The full hex body of full hex rivet nuts enhances anti-rotation capability within the hole, effectively preventing this issue
3. Better Suited for Vibration and Repeated Maintenance Scenarios
In environments such as equipment operation, vehicle travel, fan operation, or mechanical vibration, connection points are subject to prolonged vibration. Full hex rivet nuts prevent loosening at connection points caused by vibration
The Difference Between Full Hex Rivet Nuts and Round Body Rivet Nuts
| Comparison Item | Full Hex Rivet Nuts | Round Rivet Nuts |
|---|---|---|
| English Name | Full Hex Rivet Nuts | Round Rivet Nuts |
| Body Structure | Full hex body | Round body |
| Installation Hole | Hexagonal hole | Round hole |
| Anti-Rotation Performance | Stronger | Relatively basic |
| High-Torque Applications | More suitable | Not recommended for high-torque risk positions |
| Vibration Environments | More suitable | Should be confirmed according to actual working conditions |
| Repeated Assembly and Disassembly | Better fastening stability | Possible spin-out risk |
| Hole Processing Difficulty | Higher | Lower |
| Installation Convenience | Requires more accurate hole positioning | Easier |
| Cost | Usually higher | Usually lower |
| Recommended Applications | Automotive parts, equipment housings, electrical cabinets, machinery brackets, high-torque fastening points | General sheet metal parts, light-duty housings, low-torque fastening connections |
