2.4 mm Pop Rivets supplier
Rivmate’s 2.4 mm pop rivets are designed for precision assembly applications involving thin sheets and micro-holes. They are widely used in electronic enclosures, nameplates, thin aluminum sheets, and small sheet metal parts. They provide reliable and aesthetically pleasing single-sided riveted joints.
- Small-aperture installation for a more compact appearance
- Low installation force; suitable for light-duty assembly
- Compact head design for a cleaner look after installation
Why Choose Our 2.4 mm Pop Rivets
- Ideal for thin sheet metal connections
- Lower Installation Force for More Stable Assembly
- Cost-effective solution for light-duty applications
- Ideal for Batch and Continuous Production
Rivmate —— Your Professional Customized 2.4 mm Pop Rivets Manufacturer
As a professional blind rivet supplier, Rivmate can help you determine the appropriate specifications for 2.4 mm pop rivets based on specific details such as your sheet thickness and material.
If you’re unsure whether 2.4 mm is suitable for your sheet thickness or hole diameter, Rivmate can provide specification recommendations based on photos of your application, samples, drawings, or assembly parameters. Our team of professional engineers can help you determine the correct rivet length, material selection, and packaging options, thereby reducing trial-and-error costs.
Classified by Material
2.4 mm pop rivets are available in a variety of material combinations to meet different application requirements. These materials include aluminum, carbon steel, and stainless steel. Each material offers distinct advantages in terms of strength, corrosion resistance, weight, and cost.
Aluminum body/carbon Steel mandrel Open Rivets
It combines the lightweight
properties of aluminum with cost-effectiveness and the excellent riveting performance of carbonsteel rivet cores. It is suitable forgeneral industrial assembly andsimilar applications.
Aluminum body/Aluminum mandrel Open Rivets
It is lighter overall and offers better
corrosion resistance than
aluminum-clad steel-core
combinations. It helps reduce
rusting of the steel nail core. It is suitable for applications requiring
lightweight solutions.
Aluminum body/Stainless steel mandrel Open Rivets
This product combines the
lightweight, easy-to-install, and corrosion-resistant properties of aluminum, making it ideal for
applications that require optimal weight, aesthetic appeal, rust resistance, and assembly stability.
Classified by head shape
2.4 mm pop rivets are available in a variety of head styles to meet different load-bearing requirements, installation needs, and aesthetic standards. Selecting the appropriate head style not only enhances the reliability of the joint but also optimizes the product’s overall performance and assembly results.

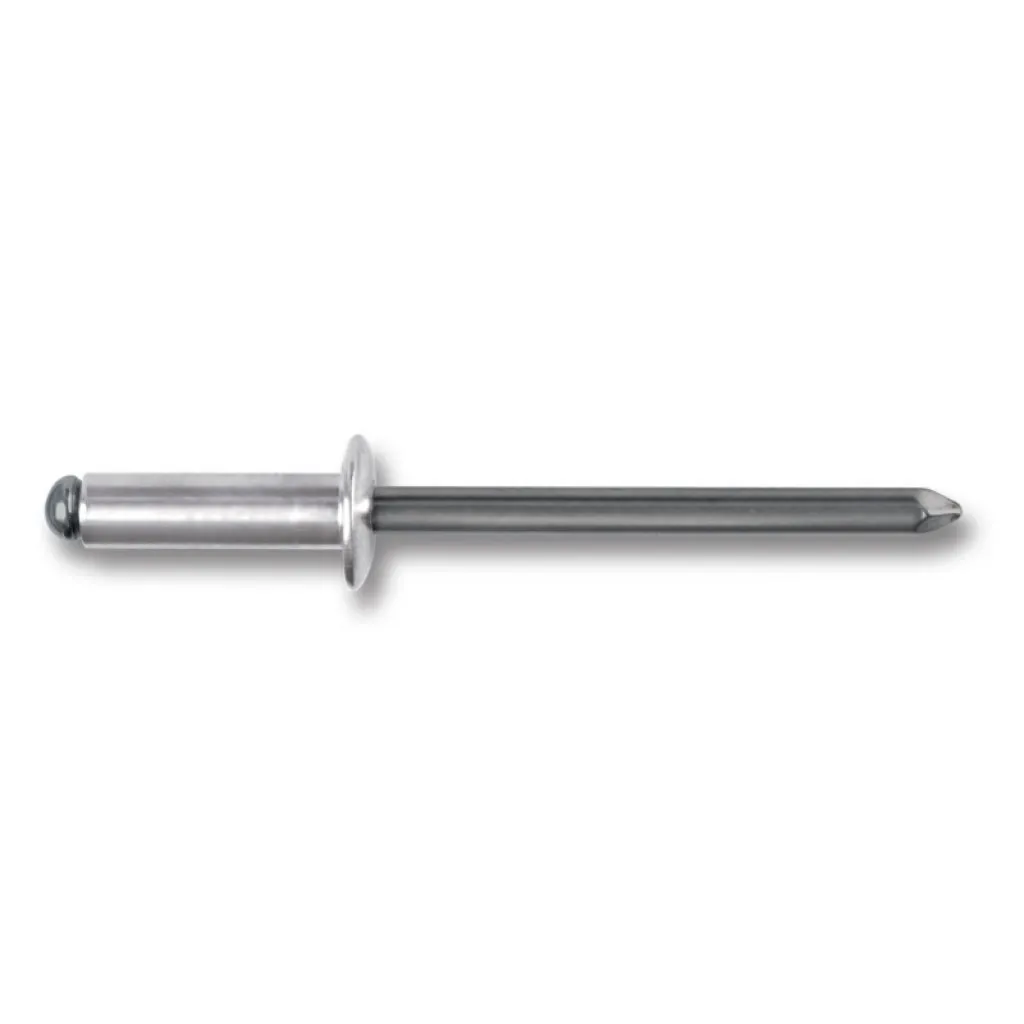

Dome head open end blind rivets
This is the most common and
versatile open-end pop rivet head type. It offers a good contact area and broad installation
compatibility. It is suitable for most standard industrial fastening
applications.

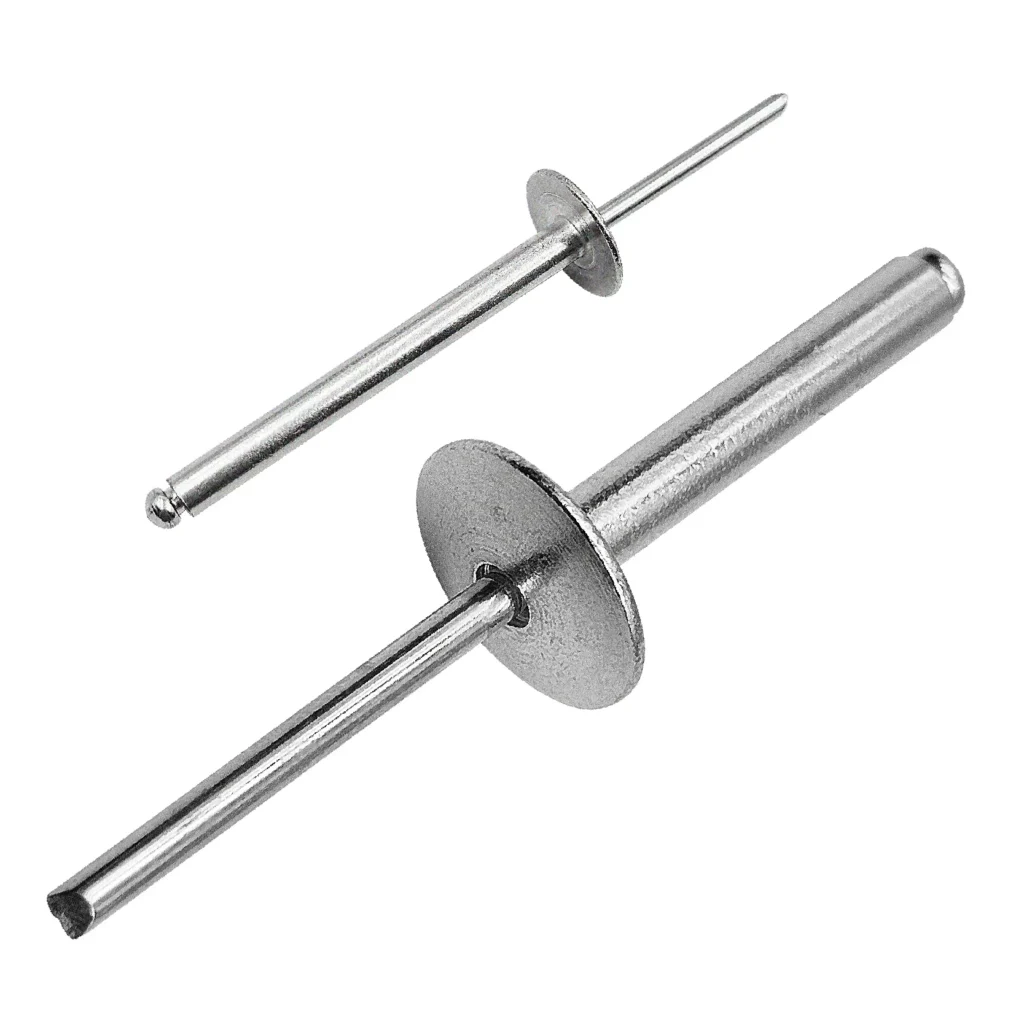

Large Flange Head open end blind rivets
It features a wider brim design that provides a larger contact area. This helps distribute surface pressure more effectively during use, reducing the risk of material
deformation. It is ideal for joining materials that are prone to tearing.

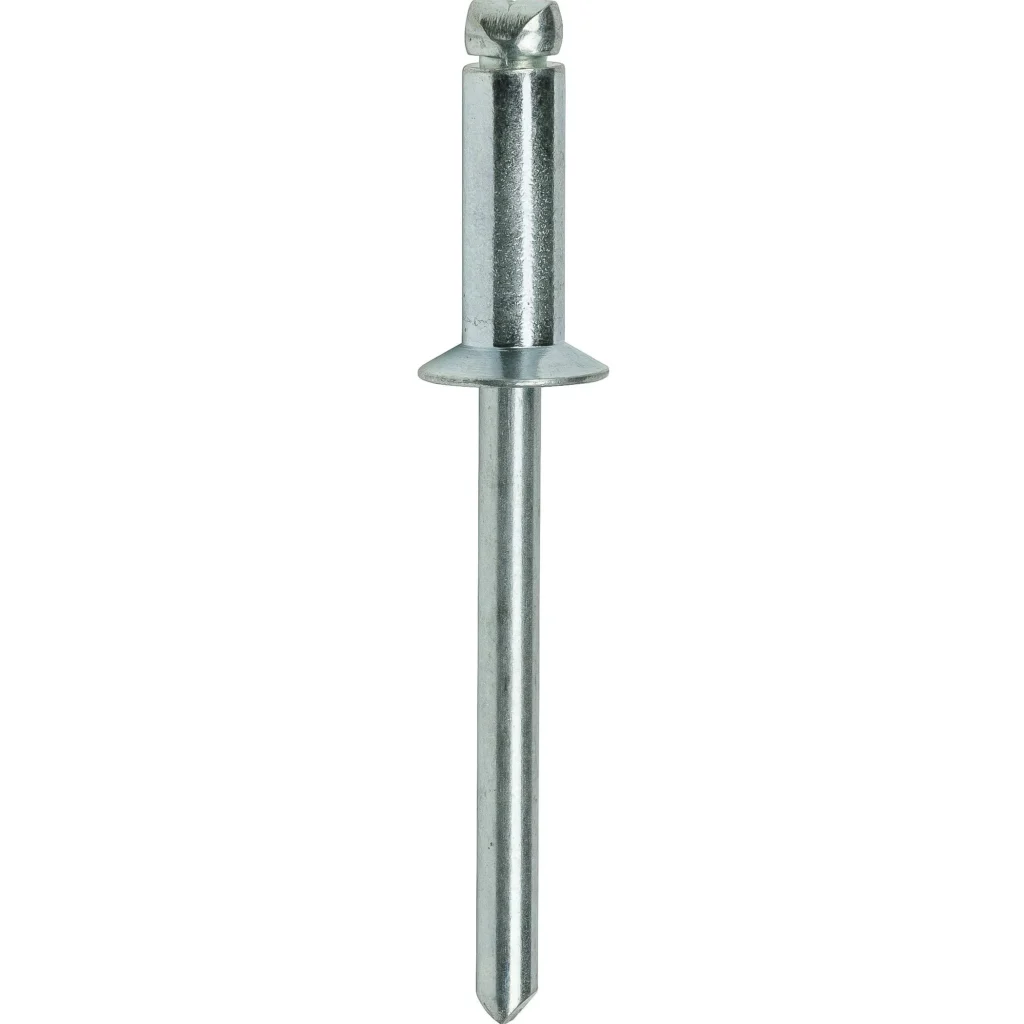

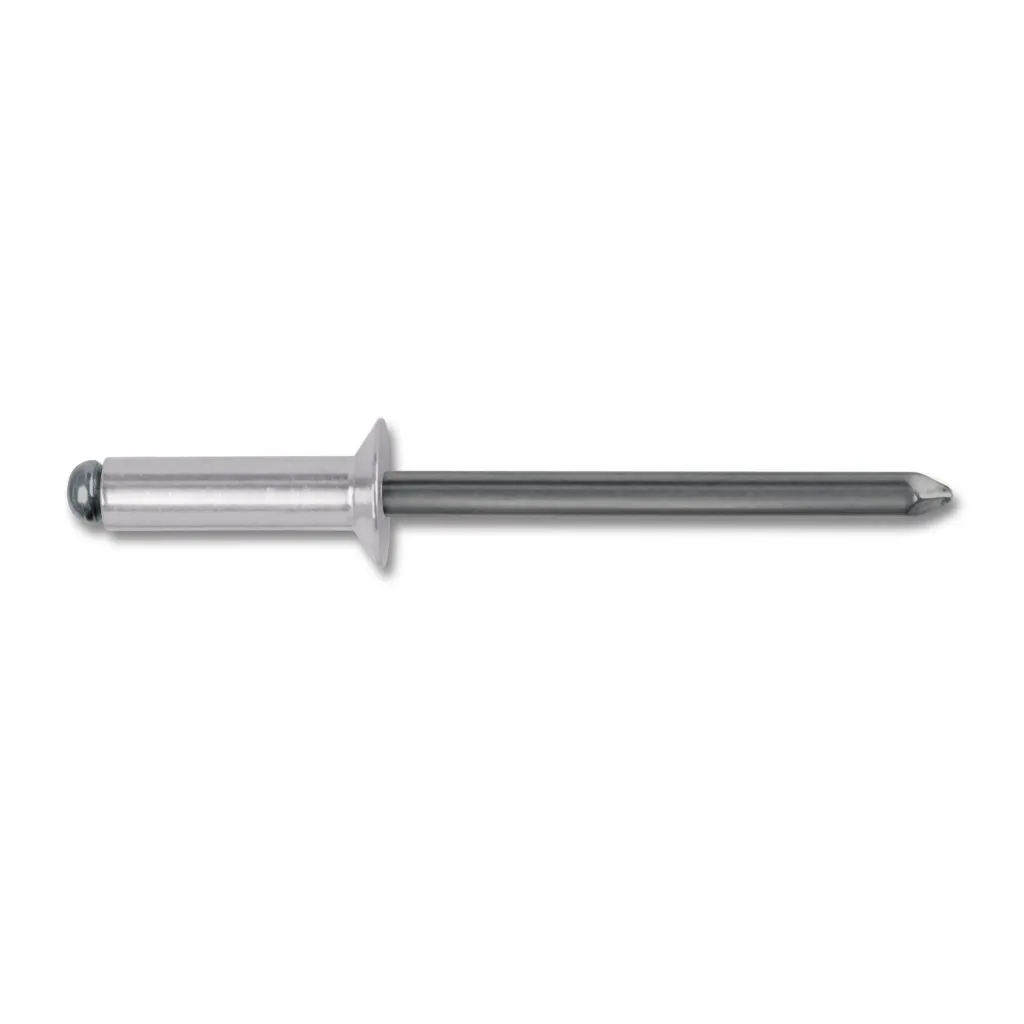

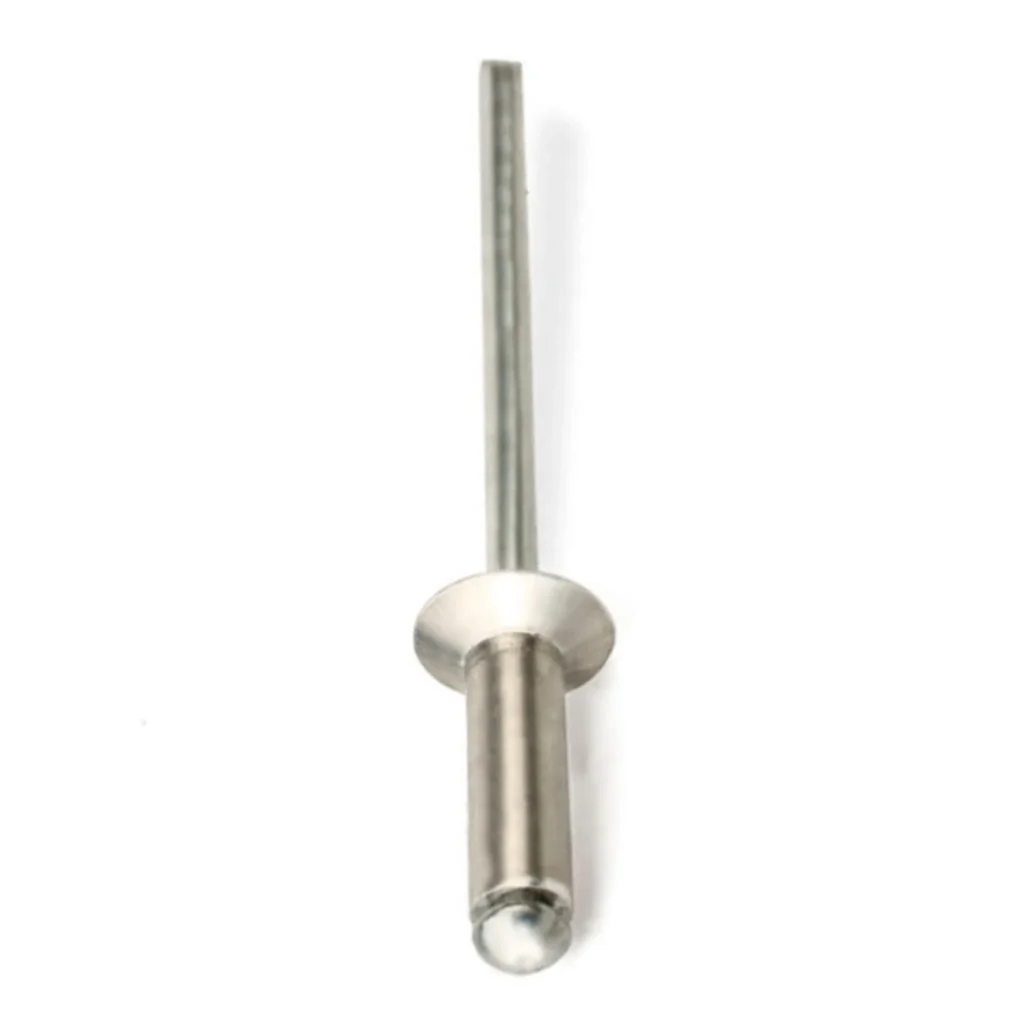

Countersunk Head Open End Blind Rivets
The rivet head can provide a flatterfinish against the workpiece surface. This minimizes the impact of protrusions on appearance and assembly. It is suitable for
applications where surface flatness is critical.
| Diameter d | Part No. | Size | Body Length L1 (nom.) | Grip Range | Drill | Dome Head dk | Dome Head k | Csk Head dk | Csk Head k | Large Head dk | Large Head k | Mandrel Dia dm max. | Mandrel Reveal P min. | Tensile | Shear |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4 (3/32") | 1AS24040 1ASC24040 | 2.4×4.0 | 4.0-5.0 | 0.5-2.0 | 2.5-2.6 | 5.0 | 1.0 | 4.8 | 1.0 | / | / | 1.6 | 25.0 | 280N | 180N |
| 1AS24060 1ASC24060 | 2.4×6.0 | 6.0-7.0 | 2.0-4.0 | ||||||||||||
| 1AS24080 1ASC24080 | 2.4×8.0 | 8.0-9.0 | 4.0-6.0 | ||||||||||||
| 1AS24100 1ASC24100 | 2.4×10.0 | 10.0-11.0 | 6.0-8.0 | ||||||||||||
| 1AS24120 1ASC24120 | 2.4×12.0 | 12.0-13.0 | 7.0-9.5 | ||||||||||||
| 1AS24140 1ASC24140 | 2.4×14.0 | 14.0-15.0 | 8.0-11.5 | ||||||||||||
| 1AS24160 1ASC24160 | 2.4×16.0 | 16.0-17.0 | 10.0-13.0 |
| Diameter d | Part No. | Size | Body Length L1 (nom.) | Grip Range | Drill | Dome Head dk | Dome Head k | Csk Head dk | Csk Head k | Large Head dk | Large Head k | Mandrel Dia dm max. | Mandrel Reveal P min. | Tensile | Shear |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4 (3/32") | AA24040 AAC24040 | 2.4×4.0 | 4.0-5.0 | 0.5-2.0 | 2.5-2.6 | 5.0 | 1.0 | 4.8 | 1.0 | / | / | 1.6 | 25.0 | 200N | 150N |
| AA24060 AAC24060 | 2.4×6.0 | 6.0-7.0 | 2.0-4.0 | ||||||||||||
| AA24080 AAC24080 | 2.4×8.0 | 8.0-9.0 | 4.0-6.0 | ||||||||||||
| AA24100 AAC24100 | 2.4×10.0 | 10.0-11.0 | 6.0-8.0 | ||||||||||||
| AA24120 AAC24120 | 2.4×12.0 | 12.0-13.0 | 7.0-9.5 | ||||||||||||
| AA24140 AAC24140 | 2.4×14.0 | 14.0-15.0 | 8.0-11.5 | ||||||||||||
| AA24160 AAC24160 | 2.4×16.0 | 16.0-17.0 | 10.0-13.0 |
| Diameter d | Part No. | Size | Body Length L1 (nom.) | Grip Range | Drill | Dome Head dk | Dome Head k | Csk Head dk | Csk Head k | Large Head dk | Large Head k | Mandrel Dia dm max. | Mandrel Reveal P min. | Tensile | Shear |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4 (3/32") | AB24040 ABC24040 | 2.4×4.0 | 4.0-5.0 | 0.5-2.0 | 2.5-2.6 | 5.0 | 1.0 | 4.8 | 1.0 | / | / | 1.6 | 25.0 | 500N | 350N |
| AB24060 ABC24060 | 2.4×6.0 | 6.0-7.0 | 2.0-4.0 | ||||||||||||
| AB24080 ABC24080 | 2.4×8.0 | 8.0-9.0 | 4.0-6.0 | ||||||||||||
| AB24100 ABC24100 | 2.4×10.0 | 10.0-11.0 | 6.0-8.0 | ||||||||||||
| AB24120 ABC24120 | 2.4×12.0 | 12.0-13.0 | 7.0-9.5 | ||||||||||||
| AB24140 ABC24140 | 2.4×14.0 | 14.0-15.0 | 8.0-11.5 | ||||||||||||
| AB24160 ABC24160 | 2.4×16.0 | 16.0-17.0 | 10.0-13.0 |
Steps of Blind Rivet Installation
- Insert the rivet into the pre-drilled hole, ensuring that the rivet head sits flush against the workpiece.
- Place the rivet gun’s nozzle over the rivet mandrel and hold the tool vertically.
- Activate the rivet gun and pull the rivet mandrel to expand the rivet body and secure the workpiece.
- Once the rivet mandrel breaks off, the riveting is complete. Check that the rivet is secure and flush.
2.4 mm Pop Rivets supplier You Can Trust
As a reliable 2.4mm pop rivets supplier, Rivmate ensures batch consistency for 2.4 mm pop rivets through well-established production process controls. From raw material receipt to finished product packaging, every step is managed with a focus on the dimensions, forming, assembly, and surface quality of these small-gauge pop rivets.
- IATF 16949 / ISO 9001-certified factory
- 100% Rigorous Material Screening
- 13-Step Testing Process
We have long specialized in the production of 2.4 mm pop rivets. Through high-precision cold heading and locking processes, we provide you with safe and reliable structural fastening solutions.
Stable Bulk Supply for 2.4 mm Pop Rivets
Rivmate provides a stable supply of 2.4 mm pop rivets in bulk to OEM manufacturers and industrial assembly customers. We offer a range of common sizes, including 2.4×6 mm, 2.4×8 mm, and 2.4×10 mm. We can arrange production and supply based on your application requirements and provide OEM packaging solutions tailored to your target market.
- Batch Traceability System
- Ample Inventory & Fast Shipping
- OEM Packaging Support
Before mass production, you can conduct sample testing to verify riveting performance, dimensional accuracy, and surface quality. Once the samples pass testing, we will proceed with mass production according to the confirmed product specifications, ensuring greater stability for your subsequent assembly processes.
Applications of 2.4 mm Pop Rivets
2.4 mm pop rivets are a type of small-diameter pop rivet that offer advantages such as a smaller hole diameter, lower installation force, and a more compact head. They are particularly well-suited for thin sheets and small parts.
Electronic Housings
2.4 mm pop rivets are better suited for small enclosures and compact structures. They are ideal for joining thin sheets—such as in electronic enclosures, small control boxes, and instrument panels—where space is limited and the sheet metal is thin. 2.4 mm pop rivets can be used to create connections with smaller hole diameters, and their smaller head size after installation does not significantly affect the product’s appearance.
Nameplates, Signs and Product Labels
Fastening applications for this type of product do not necessarily require high strength. However, there are higher requirements for appearance, hole size, and neatness of installation. 2.4 mm pop rivets are smaller in size and are more suitable for securing nameplates and labels. They will not cause the nameplate to deform, thereby preserving its aesthetic appeal.
Thin-gauge sheet metal parts are a very typical application for 2.4 mm pop rivets. Many thin metal sheets require a fastening method with a small hole diameter, low installation force, and quick assembly. 2.4 mm pop rivets provide basic fastening while maintaining a controlled hole diameter. They are quick to install and are ideal for mass assembly.
Home appliances contain a large number of thin plates, cover plates, brackets, and internal fasteners. Furthermore, home appliances have extremely high aesthetic requirements. 2.4 mm pop rivets can be used for certain lightweight appliance components and internal fastening structures. Rust-resistant surface treatments can also be selected based on the appliance’s operating environment.
Light Aluminum Components
For lightweight aluminum applications, 2.4mm aluminum-to-aluminum or aluminum-to-steel pop rivets are ideal. They provide a lightweight fastening solution while avoiding the use of oversized fasteners that could affect the overall weight and appearance.
Get An Instant Quote Now
What is the standard grip range for a 2.4mm pop rivet?
The riveting range for 2.4 mm pop rivets is 0.5–13.0 mm.
The grip range of a 2.4 mm pop rivet is not a fixed value; it varies depending on the rivet length.
What features should I look for in high-strength 2.4mm pop rivets?
You should focus on the rivet’s material composition, tensile strength, shear strength, clamping range, recommended hole diameter, and core fracture behavior.
2.4 mm pop rivets are classified as small-diameter rivets. If the joint requires high load-bearing capacity or structural fastening, you should prioritize larger-diameter or structural pop rivet
How to choose the right 2.4mm pop rivet for aluminum panels
1. First, determine the total thickness of the aluminum sheet.
2. Determine the rivet length based on the thickness.
3. Determine the appropriate material combination based on the operating environment.
4. Determine the appropriate hole diameter.
5. Select the appropriate head type.
6. Determine the surface treatment method.
How to properly measure for a 2.4mm pop rivet.
You need to measure the diameter and length of the rivet shank.
First, use a vernier caliper to measure the diameter of the cylindrical portion of the rivet shank. Second, when measuring the length of the rivet shank, measure from just below the rivet head to the end of the shank, excluding the length of the exposed rivet mandrel.
Techniques for setting 2.4mm pop rivets in delicate materials.
Tip 1: Use the correct hole diameter
Tip 2: Select the appropriate grip range
Tip 3: Control the pulling force of the riveting tool
Tip 4: Keep the tool mounted vertically
Tip 5: Remove burrs from the hole edges
Tip 6: Use a dome head or large flange design
Tip 7: Add shims or a backing plate if necessary
Tip 8: Conduct sample testing first
Resource Center
Access helpful materials to support your project planning and product selection. Download documents for reference and on-site use.
Rivet Catalog
Browse our full blind rivet catalog including product types, specifications, and application examples.I am Trailer Box Description Text. You can change me anytime from settings.
Open End Blind Rivet Drawing
Download the technical drawings for the rivets, which include dimensions, internal structure, and basic product information
What Are 2.4 mm Pop Rivets?
2.4 mm pop rivets are a type of small-diameter pop rivet, also known as 2.4 mm blind rivets or 3/32-inch pop rivets.
Compared to 3.2 mm and 4.0 mm sizes, 2.4 mm pop rivets are characterized by their smaller dimensions and require smaller hole diameters. Once installed, their heads are more compact, making them ideal for thin sheets and small parts.
As a result, they are suitable for electronic enclosures, nameplate fastening, thin aluminum sheets, small sheet metal parts, home appliance components, and light industrial assemblies.
Differences between aluminum and steel 2.4mm pop rivets.
| Aluminum vs Steel 2.4mm Pop Rivets Comparison | ||
|---|---|---|
| Comparison Item | Aluminum 2.4mm Pop Rivets | Steel 2.4mm Pop Rivets |
| Weight | Lighter, suitable for lightweight applications | Heavier, suitable for strength-focused applications |
| Strength | Suitable for light-duty fastening | Generally offers higher strength |
| Installation Force | Lower installation force, more friendly to thin sheets | Higher installation force, tool capability should be confirmed |
| Corrosion Resistance | Aluminum has good natural corrosion resistance and can be anodized or painted | Usually requires zinc plating, black zinc, or other surface treatments for better rust resistance |
| Best For | Aluminum panels, nameplates, electronic housings, decorative parts | Thin steel sheets, small brackets, industrial components |
| Appearance | More suitable for appearance parts and lightweight products | More suitable for industrial assembly and strength-demanding applications |
| Cost | Usually suitable for bulk light-duty applications | Varies depending on material grade and surface treatment |
| Material Compatibility | More suitable for aluminum, soft materials, and lightweight thin sheets | More suitable for steel panels and metal brackets |
| Typical Head Type | Dome Head, Countersunk Head | Mainly Dome Head; other head types can be evaluated based on application needs |
| Recommended Use | Small-hole, thin-sheet, low-installation-force applications | Higher-strength thin metal fastening |
What materials are commonly joined using 2.4mm pop rivets?
1. Thin Aluminum Sheets
Aluminum sheets are lightweight and easy to machine. During the riveting process, they are prone to hole deformation, localized bulging, and uneven appearance. Choosing an aluminum-to-aluminum material combination can effectively prevent these issues.
2. Thin Steel Sheets
For joining thin steel sheets, small metal brackets, or lightweight industrial parts. Choose from Steel/Steel, Aluminum/Steel, or Stainless Steel specifications based on strength requirements.
3. Plastic Panels
Plastic materials are generally more prone to cracking, denting, or tearing than metal. For softer or thinner plastic parts, a large flange head can be used to prevent damage to the material during the riveting process.
4.Light Sheet Metal Components
Lightweight sheet metal parts require small connection points, quick installation, and a clean appearance. 2.4mm pop rivets enable customers to achieve single-sided connections even with small hole diameters. They can be used as an alternative to nuts, screws, or welding in certain applications.
5.Composite or Coated Panels
2.4mm pop rivets can be used on lightweight composite panels, spray-painted panels, anodized panels, or coated metal panels. They prevent damage to surface coatings or interlayer deformation during installation.
Request a quote for 2.4mm pop rivets in large volumes.
For large-volume purchasing, choosing the right 2.4mm pop rivets supplier starts with clear product requirements. Rivmate can help review your specifications, confirm the suitable rivet solution, and provide a more accurate quotation.
When submitting an inquiry, please provide as complete a set of product specifications as possible, including the following:
| No. | Required Information | What to Provide |
|---|---|---|
| 1 | Rivet Size | 2.4×6mm, 2.4×8mm, 2.4×10mm, or other required length |
| 2 | Material Combination | Aluminum/Steel, Aluminum/Aluminum, Steel/Steel, or Stainless Steel |
| 3 | Head Type | Dome Head, Countersunk Head, or other required head type |
| 4 | Surface Finish | Natural, zinc plated, black zinc, anodized, painted, passivated, or custom color |
| 5 | Grip Range / Sheet Thickness | Total thickness of all materials being joined |
| 6 | Hole Size | Existing hole diameter or planned drilling size |
| 7 | Application | Electronic housing, aluminum panel, nameplate, thin sheet metal, appliance part, etc. |
| 8 | Quantity | Estimated order quantity or annual demand |
| 9 | Packaging Requirement | Bulk packing, small box, plastic bag, OEM label, barcode label, or export carton |
| 10 | Destination Country | Country or region for delivery |
| 11 | Drawing or Sample Photo | Product drawing, sample photo, installation photo, or application drawing |
If you haven’t yet determined the specific specifications for 2.4mm pop rivets, you can also contact Rivmate directly. Rivmate’s team of professional engineers can help you identify the right 2.4mm pop rivet solution based on your actual assembly needs, starting with the selection process.
