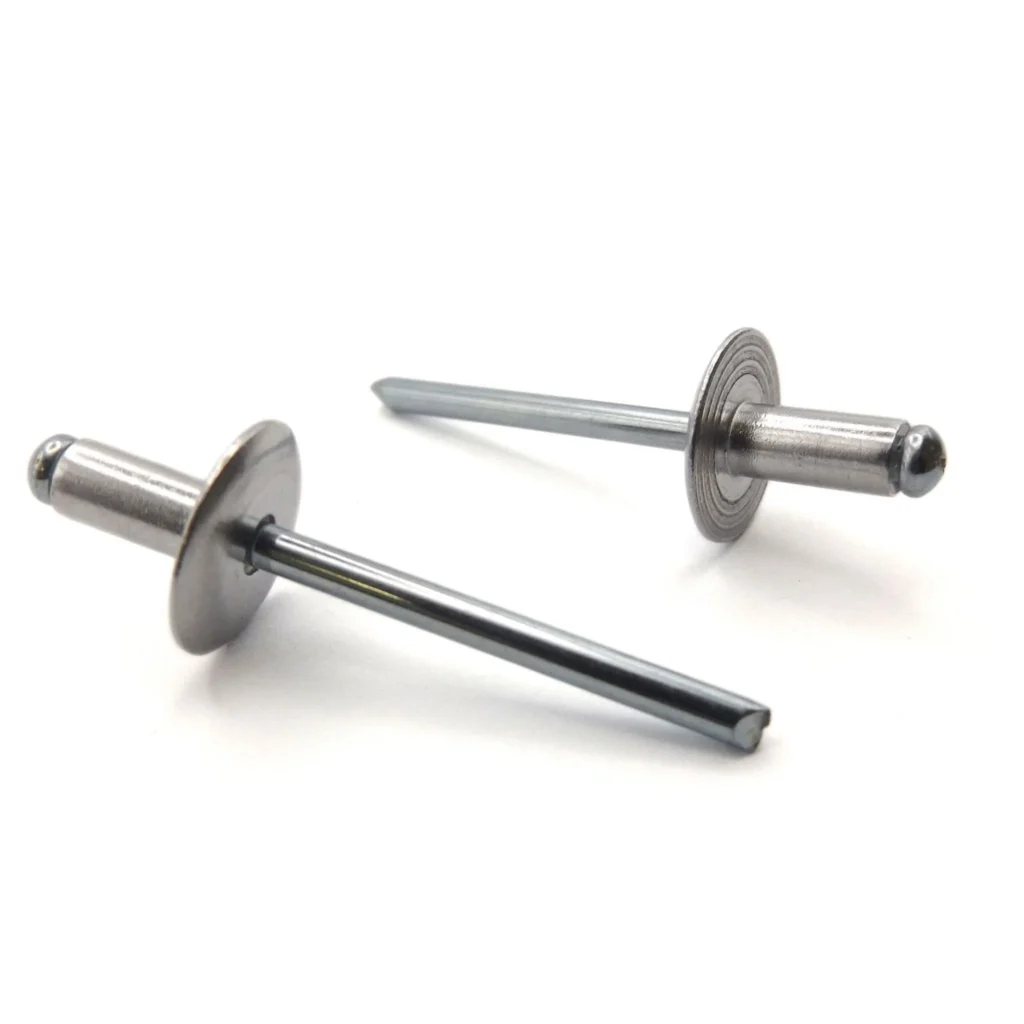

3 mm Pop Rivets
Rivmate manufactures and supplies 3 mm pop rivets, featuring a small-diameter design that enables quick single-sided installation. They are available in a variety of head types and materials. These rivets are widely used in the assembly of sheet metal, electronic enclosures, home appliance housings, and signage.
- Suitable for light-duty and medium-light-duty assembly
- Neat appearance, suitable for visible components
- Ideal for large-volume purchases and long-term repeat orders
Why Choose Our 3 mm Pop Rivets
- Blind-Side Installation Efficiency
- Standardized Specifications for Safer Selection
- Multiple Material Combinations
- Consistent Mandrel Break Performance
- Cost-Effective Solution for High-Volume Use
- Wide Tool Compatibility
- Reliable Performance in Non-Sealed Applications
Rivmate —— Your Professional Customized 3 mm Pop Rivets Manufacturer
As a professional manufacturer of pop rivets, Rivmate offers reliable custom manufacturing services for 3 mm pop rivets. Based on the application scenarios, samples, drawings, and batch order requirements you provide, we can select the appropriate rivet diameter, length, material, surface treatment, and packaging method.
Whether you need standard 3 mm pop rivets or custom parts, Rivmate maintains strict control over every step of the process—from raw material selection to final product delivery. This helps minimize the risk of specification errors, loose rivets, batch variations, and assembly issues.
Classified by Material
3-millimeter pop rivets are available in a variety of material combinations to meet different requirements in terms of weight, strength, corrosion resistance, installation performance, and cost control. This ensures the stability of the fastening and long-term performance.

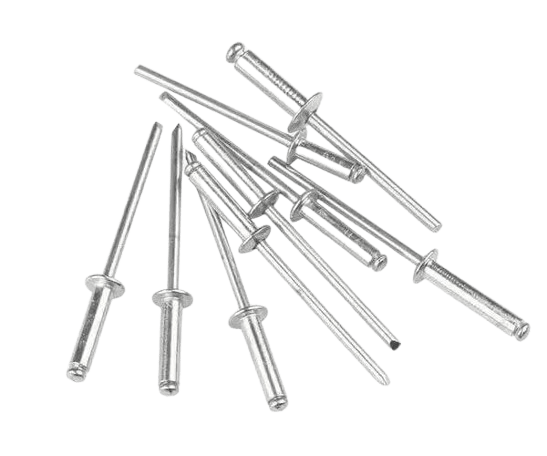

Aluminum body/Carbon Steel mandrel Open Rivets
It combines the lightweight properties of aluminum with cost-effectiveness and the excellent riveting performance of carbon steel rivet cores. It is suitable for general industrial assembly and similar applications.
Stainless Steel body/ Stainless Steel mandrel Open Rivets
It offers superior corrosion resistance, consistent strength, and a long service life. It is suitable for applications with high corrosion resistance requirements, such as equipment used in humid, outdoor, and coastal environments.
Aluminum body/Aluminum mandrel Open Rivets
It is lighter overall and offers better corrosion resistance than aluminum-clad steel-core combinations. It helps reduce rusting of the steel nail core. It is suitable for applications requiring lightweight solutions.
Aluminum body/Stainless steel mandrel Open Rivets
This product combines the lightweight, easy-to-install, and corrosion-resistant properties of aluminum, making it ideal for applications that require optimal weight, aesthetic appeal, rust resistance, and assembly stability.
Carbon body/Carbon mandrel Open Rivets
This product offers higher joint strength and superior tensile and shear resistance. It is suitable for steel plate connections, metal enclosures, sheet metal structural components, and general industrial assembly applications.
Classified by head shape
3 mm pop rivets are available in a variety of head types to meet different assembly requirements. Different head types affect surface appearance, load-bearing area, and installation fit. Selecting the appropriate rivet head helps improve fastening stability and reduce installation issues.
Dome head open end blind rivets
This is the most common and versatile open-end pop rivet head type. It offers a good contact area and broad installation compatibility. It is suitable for most standard industrial fastening applications.
Large Flange Head Open End Blind Rivets
It features a wider brim design that provides a larger contact area. This helps distribute surface pressure more effectively during use, reducing the risk of material deformation. It is ideal for joining materials that are prone to tearing.
Countersunk Head Open End Blind Rivets
The rivet head can provide a flatter finish against the workpiece surface. This minimizes the impact of protrusions on appearance and assembly. It is suitable for applications where surface flatness is critical.
| Diameter d | Part No. | Size | Body Length L (nom.) | Grip Range | Drill | Dome Head dk | Dome Head k | Csk Head dk | Csk Head k | Large Head dk | Large Head k | Mandrel Dia dm (max.) | Mandrel Reveal P (min.) | Tensile | Shear |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.0（7/64"） | 1AS30060 / 1ASC30060 | 3.0×6.0 | 6.0–7.0 | 1.0–3.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 400N | 300N |
| 3.0（7/64"） | 1AS30080 / 1ASC30080 | 3.0×8.0 | 8.0–9.0 | 3.5–5.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 400N | 300N |
| 3.0（7/64"） | 1AS30100 / 1ASC30100 | 3.0×10.0 | 10.0–11.0 | 5.0–7.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 400N | 300N |
| 3.0（7/64"） | 1AS30120 / 1ASC30120 | 3.0×12.0 | 12.0–13.0 | 7.0–9.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 400N | 300N |
| 3.0（7/64"） | 1AS30140 / 1ASC30140 | 3.0×14.0 | 14.0–15.0 | 9.0–11.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 400N | 300N |
| 3.0（7/64"） | 1AS30160 / 1ASC30160 | 3.0×16.0 | 16.0–17.0 | 9.0–12.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 400N | 300N |
| 3.0（7/64"） | 1AS30180 / 1ASC30180 | 3.0×18.0 | 18.0–19.0 | 12.0–14.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 400N | 300N |
| 3.0（7/64"） | 1AS30200 / 1ASC30200 | 3.0×20.0 | 20.0–21.0 | 13.0–16.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 400N | 300N |
| 3.0（7/64"） | AA30060 / AAC30060 | 3.0×6.0 | 6.0–7.0 | 1.0–3.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 300N | 250N |
| 3.0（7/64"） | AA30080 / AAC30080 | 3.0×8.0 | 8.0–9.0 | 3.5–5.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 300N | 250N |
| 3.0（7/64"） | AA30100 / AAC30100 | 3.0×10.0 | 10.0–11.0 | 5.0–7.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 300N | 250N |
| 3.0（7/64"） | AA30120 / AAC30120 | 3.0×12.0 | 12.0–13.0 | 7.0–9.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 300N | 250N |
| 3.0（7/64"） | AA30140 / AAC30140 | 3.0×14.0 | 14.0–15.0 | 9.0–11.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 300N | 250N |
| 3.0（7/64"） | AA30160 / AAC30160 | 3.0×16.0 | 16.0–17.0 | 9.0–12.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 300N | 250N |
| 3.0（7/64"） | AA30180 / AAC30180 | 3.0×18.0 | 18.0–19.0 | 12.0–14.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 300N | 250N |
| 3.0（7/64"） | AA30200 / AAC30200 | 3.0×20.0 | 20.0–21.0 | 13.0–16.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 300N | 250N |
| 3.0（7/64"） | AB30060 / ABC30060 | 3.0×6.0 | 6.0–7.0 | 1.0–3.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 700N | 550N |
| 3.0（7/64"） | AB30080 / ABC30080 | 3.0×8.0 | 8.0–9.0 | 3.5–5.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 700N | 550N |
| 3.0（7/64"） | AB30100 / ABC30100 | 3.0×10.0 | 10.0–11.0 | 5.0–7.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 700N | 550N |
| 3.0（7/64"） | AB30120 / ABC30120 | 3.0×12.0 | 12.0–13.0 | 7.0–9.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 700N | 550N |
| 3.0（7/64"） | AB30140 / ABC30140 | 3.0×14.0 | 14.0–15.0 | 9.0–11.0 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 700N | 550N |
| 3.0（7/64"） | AB30160 / ABC30160 | 3.0×16.0 | 16.0–17.0 | 9.0–12.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 700N | 550N |
| 3.0（7/64"） | AB30180 / ABC30180 | 3.0×18.0 | 18.0–19.0 | 12.0–14.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 700N | 550N |
| 3.0（7/64"） | AB30200 / ABC30200 | 3.0×20.0 | 20.0–21.0 | 13.0–16.5 | 3.1–3.2 | 6.3 | 1.3 | 6.3 | 1.3 | / | / | 2.0 | 27.0 | 700N | 550N |
| 3.0（7/64"） | SS30060 / SSC30060 | 3.0×6.0 | 6.0–7.0 | 1.0–3.0 | 3.1–3.2 | 6.5 | 1.3 | 6.3 | 1.3 | / | / | 2.1 | 27.0 | 1125N | 915N |
| 3.0（7/64"） | SS30080 / SSC30080 | 3.0×8.0 | 8.0–9.0 | 3.0–5.0 | 3.1–3.2 | 6.5 | 1.3 | 6.3 | 1.3 | / | / | 2.1 | 27.0 | 1125N | 915N |
| 3.0（7/64"） | SS30100 / SSC30100 | 3.0×10.0 | 10.0–11.0 | 5.0–7.0 | 3.1–3.2 | 6.5 | 1.3 | 6.3 | 1.3 | / | / | 2.1 | 27.0 | 1125N | 915N |
| 3.0（7/64"） | SS30120 / SSC30120 | 3.0×12.0 | 12.0–13.0 | 7.0–9.0 | 3.1–3.2 | 6.5 | 1.3 | 6.3 | 1.3 | / | / | 2.1 | 27.0 | 1125N | 915N |
| 3.0（7/64"） | BB-S30060 / BBC-S30060 | 3.0×6.0 | 6.0–7.0 | 1.0–3.0 | 3.1–3.2 | 6.5 | 1.3 | 6.3 | 1.3 | / | / | 2.1 | 27.0 | 2000N | 1600N |
| 3.0（7/64"） | BB-S30080 / BBC-S30080 | 3.0×8.0 | 8.0–9.0 | 3.0–5.0 | 3.1–3.2 | 6.5 | 1.3 | 6.3 | 1.3 | / | / | 2.1 | 27.0 | 2000N | 1600N |
| 3.0（7/64"） | BB-S30100 / BBC-S30100 | 3.0×10.0 | 10.0–11.0 | 5.0–7.0 | 3.1–3.2 | 6.5 | 1.3 | 6.3 | 1.3 | / | / | 2.1 | 27.0 | 2000N | 1600N |
| 3.0（7/64"） | BB-S30120 / BBC-S30120 | 3.0×12.0 | 12.0–13.0 | 7.0–9.0 | 3.1–3.2 | 6.5 | 1.3 | 6.3 | 1.3 | / | / | 2.1 | 27.0 | 2000N | 1600N |
Steps of Blind Rivet Installation
- Insert the rivet into the pre-drilled hole, ensuring that the rivet head sits flush against the workpiece.
- Place the rivet gun’s nozzle over the rivet mandrel and hold the tool vertically.
- Activate the rivet gun and pull the rivet mandrel to expand the rivet body and secure the workpiece.
- Once the rivet mandrel breaks off, the riveting is complete. Check that the rivet is secure and flush.
3 mm Pop Rivets Manufacturing You Can Trust
Rivmate operates a 40,000-square-meter production facility and maintains a comprehensive manufacturing system for pop rivets. We are equipped with 64 multi-station production machines and 6 laser sorting machines. With our large-scale automated production capabilities, we provide you with stable and reliable bulk production services for 3 mm pop rivets.
- 13-Step Testing Process — 99.9% Pass Rate
- 100% Rigorous Material Screening — We Never Use Substandard Materials
- IATF 16949 / ISO 9001-certified factory—specialized application solutions
When you choose Rivmate as your manufacturer, you get more than just 3 mm pop rivets. You also get consistent quality and on-time delivery. We are committed to building long-term partnerships and providing the support that comes with a reliable manufacturing supply chain.
Stable Bulk Supply for 3 mm Pop Rivets
Rivmate provides a stable supply of rivets to overseas fastener distributors, wholesalers, and importers. We offer 3 mm pop rivets made of aluminum, steel, stainless steel, and other materials. Our product range is comprehensive, covering a variety of specifications, including length, head style, and surface finish. We help you build a more complete and competitive product line.
- OEM customization and long-term supply support
- Ample Inventory & Fast Shipping
- We offer private label manufacturing services
Whether you’re working with thin sheets, electronic enclosures, home appliance housings, small sheet metal parts, or light industrial component assemblies, Rivmate can provide a reliable supply of 3 mm pop rivets. By choosing Rivmate, you not only ensure a long-term supply of products but also benefit from consistent production capacity, quality control, packaging support, and the assurance of a long-term partnership.
Applications of 3 mm Pop Rivets
Due to their small diameter, 3 mm pop rivets are easy to install and allow for single-sided riveting. As a result, they are ideal for assembling thin sheets, electronic enclosures, nameplates, home appliance housings, small sheet metal parts, and light industrial components.
Standard Sheet Metal Fabrication
Compared to welding, 3 mm pop rivets are better suited for the assembly and mass production of thin-sheet metal components. Compared to the 2.4 mm size, 3 mm pop rivets offer better tensile and shear strength. They are an ideal choice for joining medium-thickness sheet metal parts.
Light-Duty Automotive Accessories
With their small diameter and single-sided installation, 3 mm pop rivets are suitable for certain lightweight assembly and repair applications. They can be used for light-duty automotive accessories, trim pieces, interior panels, small covers, and non-structural fastening points.
Medium-thickness plastic parts

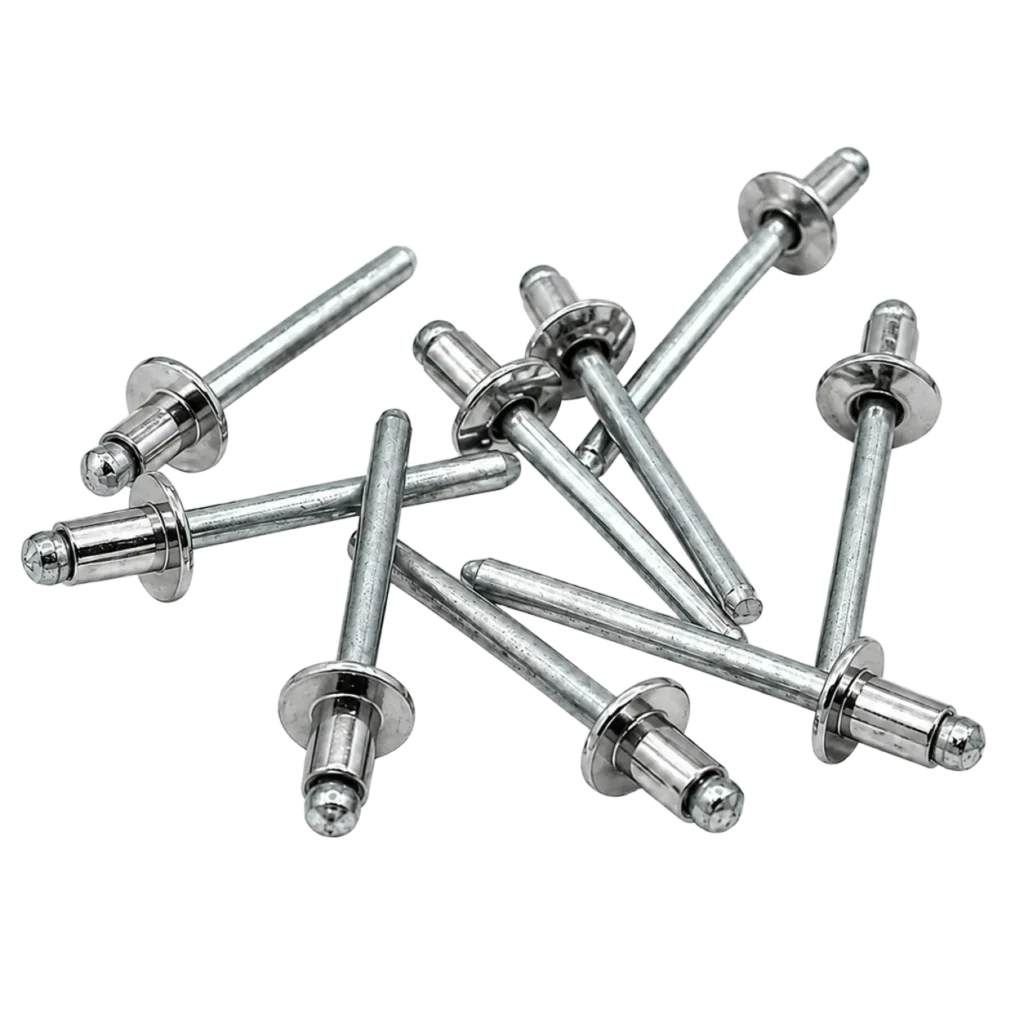

Using 2.4 mm pop rivets on medium-thickness plastic parts results in unstable riveting; using larger sizes can easily damage the sheet material. Large Flange Head 3 mm Pop Rivets have a larger contact area, and their strength is ideally suited for medium-thickness plastic parts. This improves the riveting results.
Get An Instant Quote Now
Are 3mm pop rivets suitable for aluminum vs steel surfaces?
3 mm pop rivets can be used on both aluminum and steel sheets.
For aluminum sheets, we recommend using 3 mm aluminum pop rivets; for steel sheets, we recommend using 3 mm stainless steel pop rivets.
What finishes are available for 3mm pop rivets for outdoor use?
3 mm pop rivets are suitable for general indoor or light outdoor use and can be finished in natural aluminum, galvanized steel, or standard powder coating.
If used in damp conditions, exposed to rain, subjected to long-term outdoor exposure, or in coastal environments, passivation or a higher-grade corrosion-resistant coating is recommended.
What are the common issues when using 3mm pop rivets on composite materials?
Common issues include: cracking around the hole, material delamination, rivets tearing through the material, hole enlargement, loosening after riveting, and noticeable surface indentations.
You should prioritize using Large Flange Head 3 mm Pop Rivets. This is because the Large Flange Head provides a larger load-bearing surface area, reducing the risk of material damage.
What are the common grip ranges for 3mm pop rivets?
The typical grip range for 3 mm pop rivets is 1.0–16.5 mm.
It’s important to note that the grip range is not a fixed value; it is determined by the length of the rivet.
How strong are 3mm pop rivets?
3 mm pop rivets have a minimum tensile strength of 300 N and a minimum shear strength of 250 N.The strength of 3 mm pop rivets falls within the light- to medium-light-duty fastening range.
This strength is suitable for the assembly of thin sheets, electronic device housings, home appliance housings, small sheet metal parts, and light industrial components.
Resource Center
Access helpful materials to support your project planning and product selection. Download documents for reference and on-site use.
Rivet Catalog
Browse our full blind rivet catalog including product types, specifications, and application examples.I am Trailer Box Description Text. You can change me anytime from settings.
Open End Blind Rivet Drawing
Download the technical drawings for the rivets, which include dimensions, internal structure, and basic product information
What are 3 mm Pop Rivets
3 mm pop rivets refer to blind rivets with a diameter of approximately 3 mm, also known as 3 mm blind rivets or 3 mm pop rivets. They are commonly used to fasten components in light industry.
They are fasteners that can be installed from a single side; during installation, the rivet is simply inserted from one side of the material. A riveting tool is then used to sever the mandrel, causing the rivet body to expand and form on the reverse side. This secures two or more layers of material together.
Difference between aluminum and steel 3mm pop rivets?
| No. | Comparison Item | Aluminum 3 mm Pop Rivets | Steel 3 mm Pop Rivets | Selection Suggestion |
|---|---|---|---|---|
| 1 | Material Structure | Usually aluminum rivet body with aluminum or steel mandrel. | Usually steel rivet body with steel mandrel. | Choose based on required strength, weight, and application environment. |
| 2 | Weight | Lighter in weight and suitable for lightweight assembly. | Heavier than aluminum rivets. | Use aluminum rivets when reducing product weight is important. |
| 3 | Fastening Strength | Suitable for light-duty and medium-light fastening. | Provides higher fastening strength than aluminum rivets. | Use steel rivets when stronger clamping and higher load resistance are needed. |
| 4 | Installation Force | Easier to install and usually requires lower pulling force. | Requires higher pulling force during installation. | Aluminum rivets are more suitable for thin or soft materials. |
| 5 | Corrosion Resistance | Has good basic corrosion resistance, especially for indoor and light outdoor use. | Requires zinc plating, coating, or other surface treatment to improve rust resistance. | For humid or outdoor use, consider coated steel or stainless steel options. |
| 6 | Surface Compatibility | Better suited for aluminum sheets, signs, light panels, and soft materials. | Better suited for steel sheets, brackets, toolboxes, and industrial panels. | Match the rivet material with the base material when possible. |
| 7 | Risk on Thin Materials | Lower risk of damaging thin panels due to lighter installation force. | May create more pressure on thin or soft materials. | For very thin sheets, aluminum or large flange rivets may be safer. |
| 8 | Typical Applications | Signs, nameplates, appliance housings, electrical enclosures, light sheet metal. | Steel panels, small brackets, hardware boxes, toolboxes, general industrial parts. | Use aluminum for light assembly and steel for stronger metal fastening. |
| 9 | Outdoor Use | Suitable for light outdoor use with proper finish or coating. | Needs zinc plating, black zinc, coating, or better anti-corrosion treatment. | For long-term outdoor exposure, stainless steel or coated rivets are recommended. |
| 10 | Cost and Bulk Purchase | Cost-effective for lightweight and appearance-focused applications. | Cost-effective when higher strength is required in bulk assembly. | Choose according to project strength requirement, material type, and target cost. |
What materials can 3mm pop rivets join together?
1.Aluminum to Aluminum
2.Aluminum to Steel
3.Steel to Steel
4.Stainless Steel to Stainless Steel
5.Aluminum to Plastic
6.Metal to Plastic
7.Metal to Composite Panels
8.Plastic to Plastic
9.Thin Sheet to Bracket
10.Signs and Nameplates to Metal Panels
Request a quote for 3mm pop rivets in large volumes.
To receive an accurate quote more quickly, we recommend that you provide the following information:
| Required Information | Details |
|---|---|
| Rivet Length | For example: 3×6 mm, 3×8 mm, 3×10 mm, or provide the total material thickness. |
| Material | Aluminum, Steel, Stainless Steel. |
| Head Type | Dome Head, Countersunk Head, Large Flange. |
| Surface Finish | Natural, Zinc Plated, Black, Painted, Custom Color. |
| Quantity | Estimated order quantity or annual purchasing plan. |
| Application | Sheet metal, electrical enclosures, appliance housings, signs, metal fabrication parts, and other light industrial assembly applications. |
| Packaging Requirement | Bulk Carton, Small Box, OEM Label, Barcode, Mixed Kit. |
| Drawing or Sample | If drawings or samples are available, they can help confirm the exact specification more accurately. |
If you haven’t yet determined the specific specifications for 3 mm pop rivets, you can also contact Rivmate directly. Rivmate’s team of professional engineers can help you identify the right 3 mm pop rivet solution based on your actual assembly needs, starting with the selection process.
