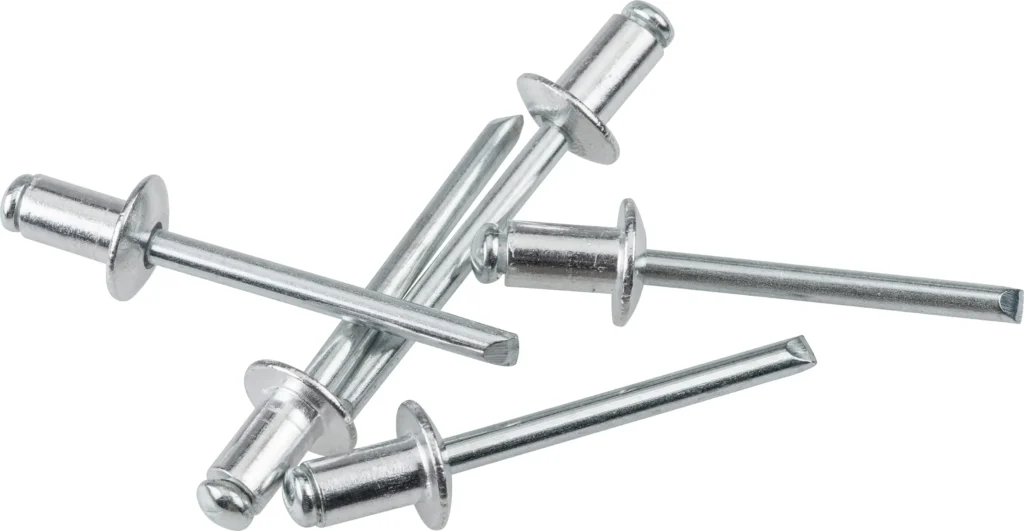

Wholesale 4.8 mm Pop Rivets
4.8 mm Pop Rivets are the specification of blind rivets used for higher strength and structural connections. This size is equivalent to 3/16″ in the imperial system and is a very common industrial standard in the European and American markets. Compared to the 4.0 mm specification, 4.8 mm typically has a higher load-bearing capacity and is more suitable for assembly applications with higher requirements for load-bearing areas and long-term stability.
- Higher structural connection strength
- More stable long-term assembly performance
- More suitable for project and batch production requirements
What Does 4.8 mm (3/16") Mean in Pop Rivets?
In blind rivets, 4.8 mm refers to the shank diameter of the rivet, not the diameter of the pre-drilled hole. The shank diameter is a key parameter that determines the rivet’s load-bearing capacity and applicable working conditions.
In the imperial system, 4.8 mm is equivalent to 3/16 inch, which is a widely used standard specification in industrial assembly in Europe and America. Therefore, “4.8 mm pop rivets” and “3/16 blind rivets” usually refer to the same type of product.
Compared with the 4.0 mm specification, the 4.8 mm one, due to its larger rod diameter, usually has higher tensile and shear load-bearing capacity under the same material conditions. This is a common reason for upgrading in engineering design. However, correspondingly, a larger rod diameter usually means a larger pre-drilled hole size. This will have a more obvious drilling impact on thin plates. Therefore, when selecting, the thickness of the plate and the strength of the hole position should be considered together.
Due to their higher strength and better structural stability, 4.8 mm (3/16″) blind rivets are more suitable for load-bearing sheet metal structures, equipment frames, support systems, and industrial connection scenarios that require long-term reliability.
| Parameter | Specification |
|---|---|
| Shank Diameter | 4.8 mm (3/16″) |
| Recommended Hole Size | Typically 4.9–5.0 mm (depending on rivet design and material) |
| Grip Range | Multiple grip ranges available for medium-to-heavy duty fastening |
| Available Lengths | Various lengths available to match different grip ranges |
| Head Diameter | Varies by head type (Dome Head / Large Flange / Countersunk) |
| Tensile Strength | Depends on material combination and rivet construction |
| Shear Strength | Depends on material combination and rivet construction |
| Material Options | Aluminum/Steel, Steel/Steel, Stainless Steel/Stainless Steel |
Common Types of 4.8 mm (3/16") Pop Rivets

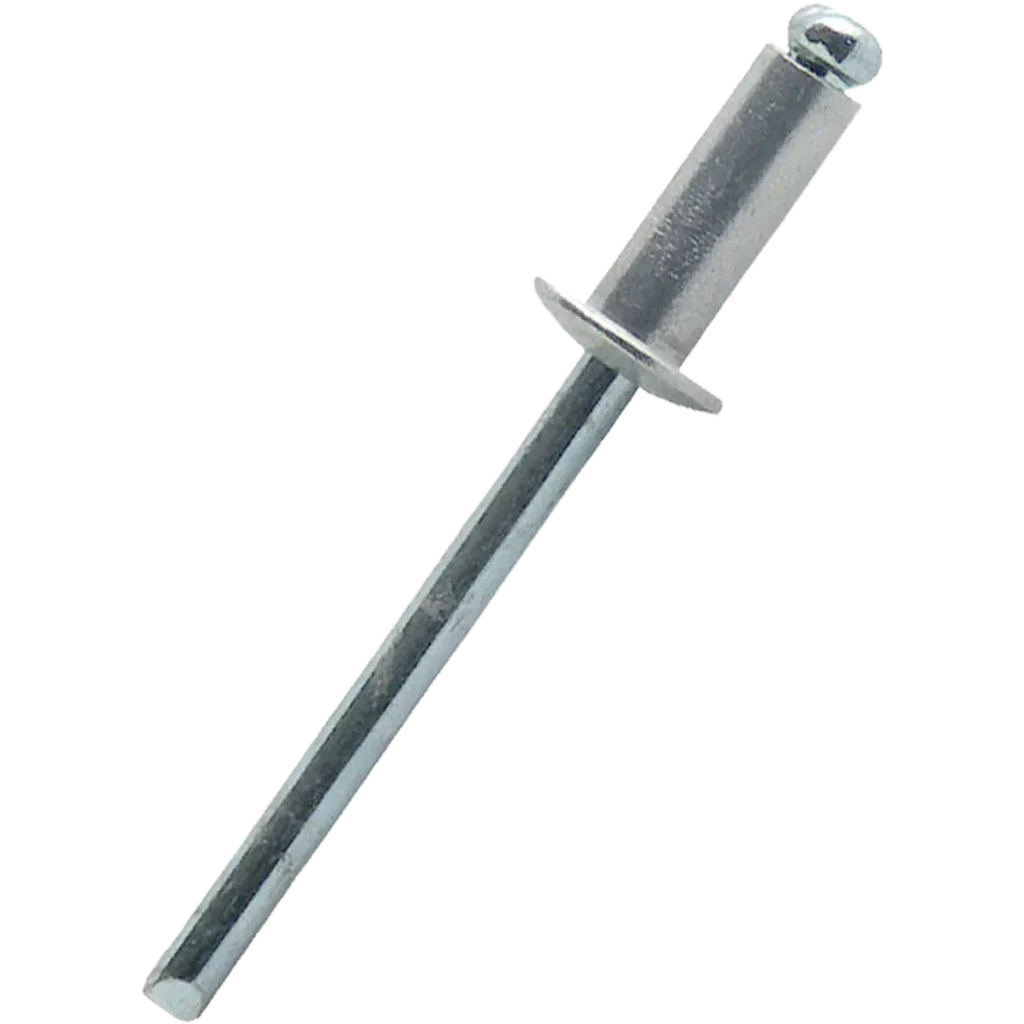

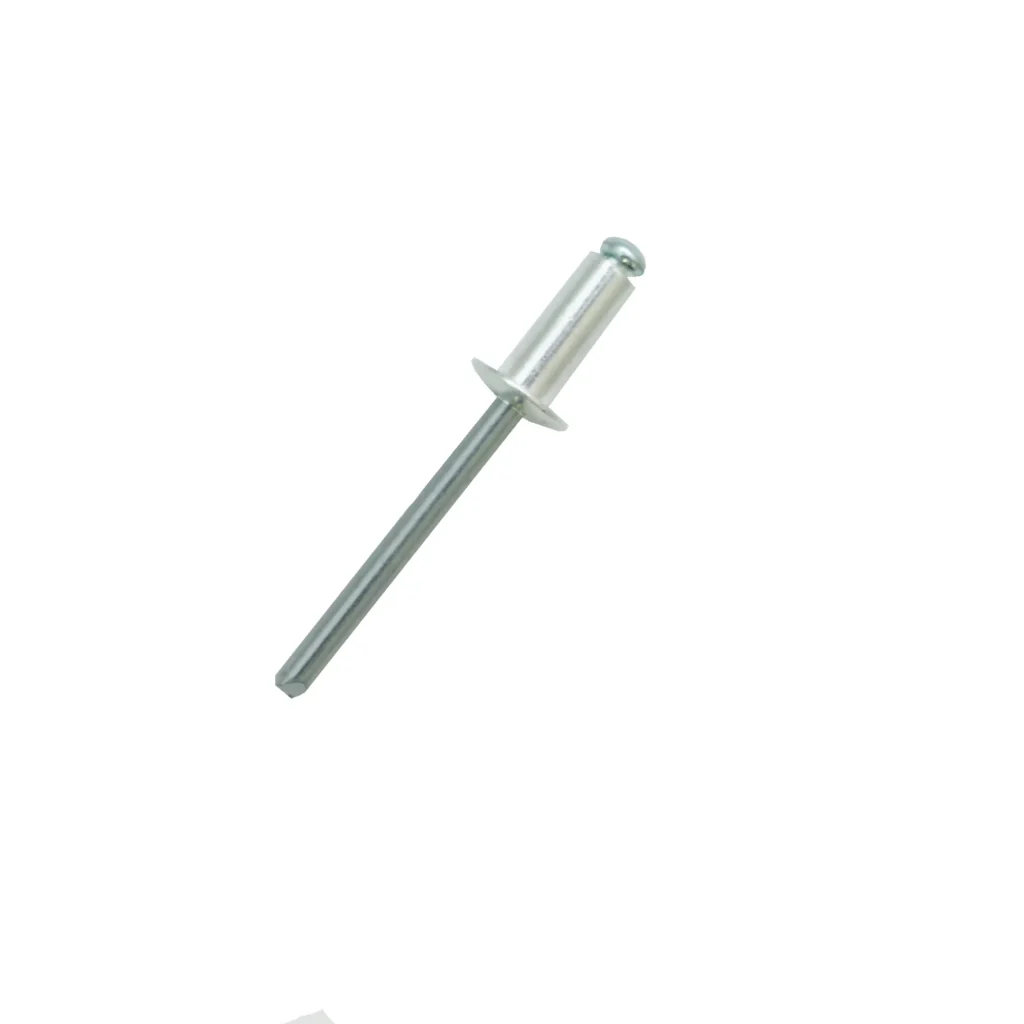

4.8 mm (3/16") Aluminum / Steel Dome Head Pop Rivet
Suitable for general structural sheet metal assembly, taking into account both installation efficiency and connection strength.

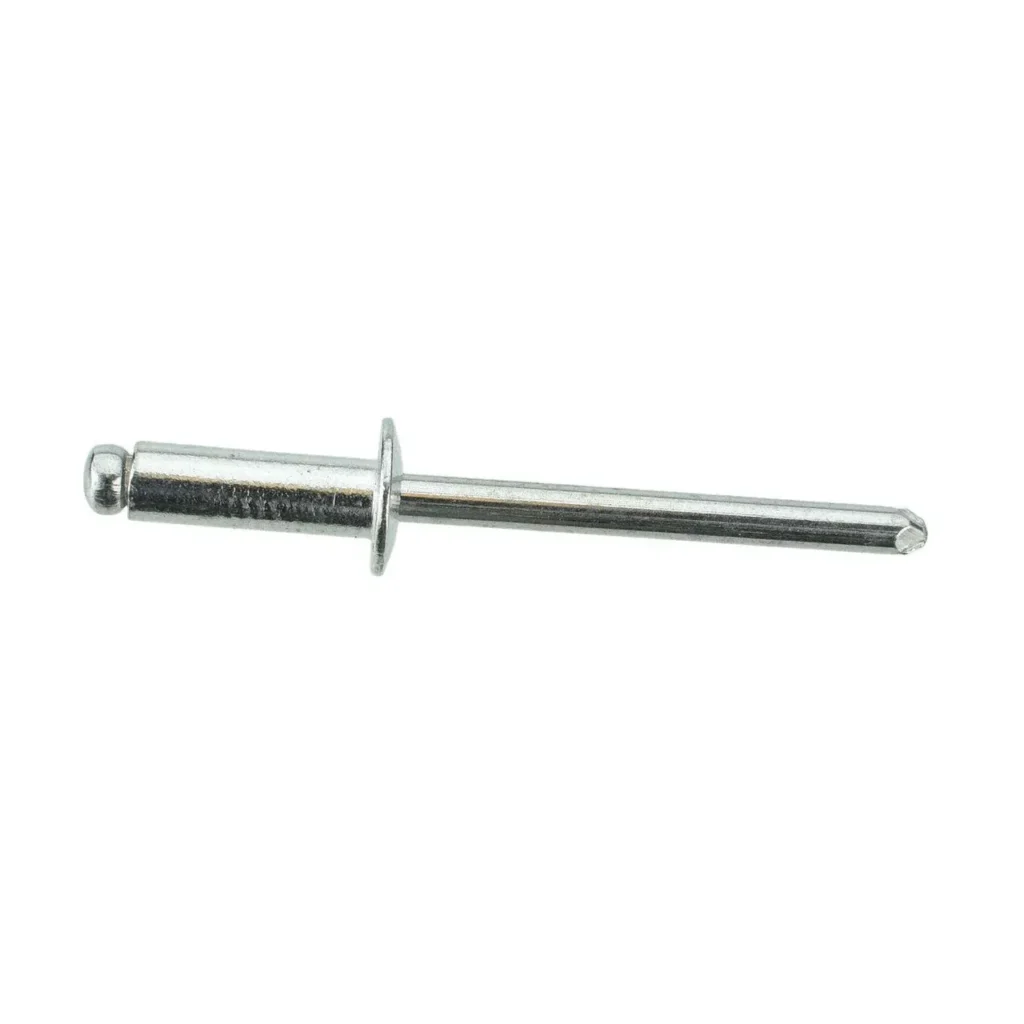

4.8 mm (3/16") Steel / Steel Dome Head Pop Rivet
It has a higher overall strength and is suitable for structural connections with higher load-bearing requirements.
4.8 mm (3/16") Stainless Steel Dome Head Pop Rivet
It offers higher strength and better corrosion resistance. Suitable for outdoor equipment, humid environments or corrosive working conditions.

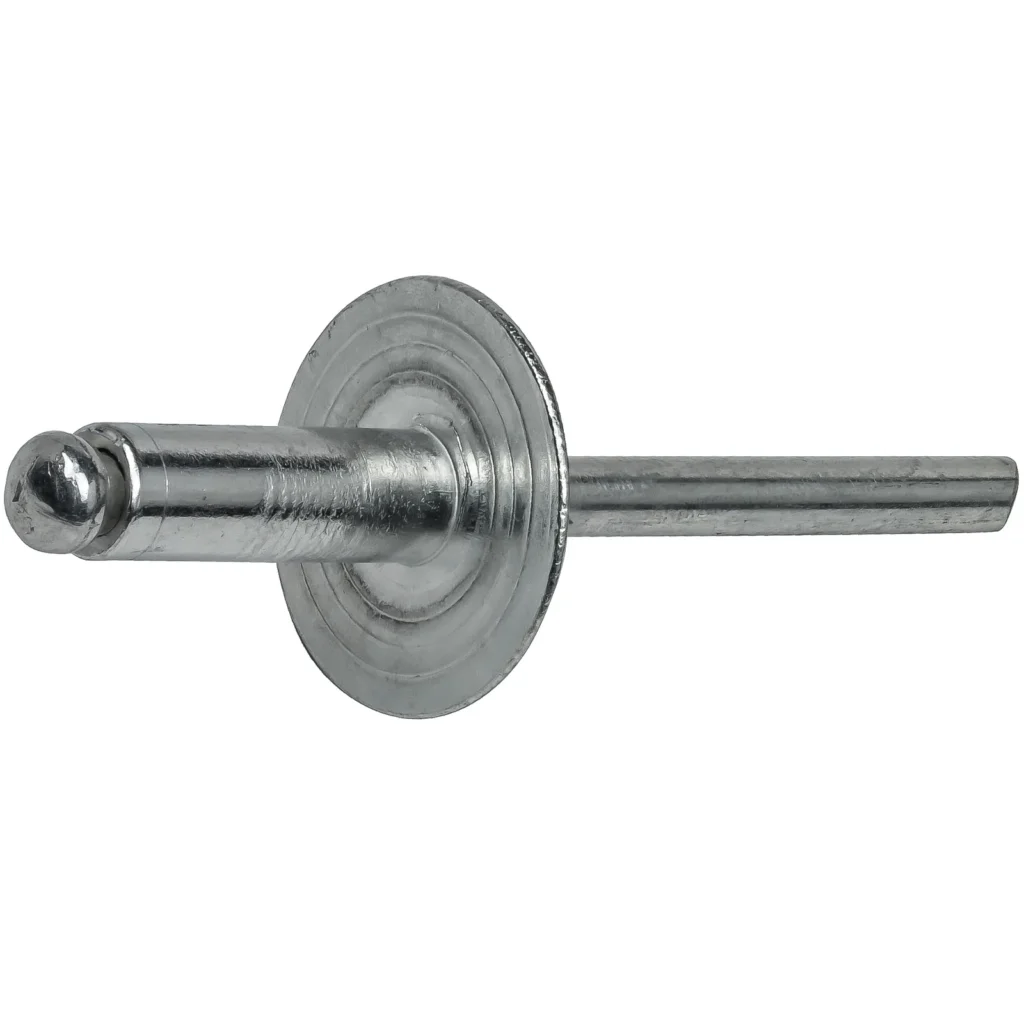

4.8 mm (3/16") Aluminum / Steel Large Flange Pop Rivet
The wide brim design can increase the force-bearing area and reduce the risk of local deformation of the thin plate.
4.8 mm (3/16") Steel / Steel Large Flange Pop Rivet
Further improve the force distribution on the basis of high strength. Suitable for vibration environments and structural assembly applications.

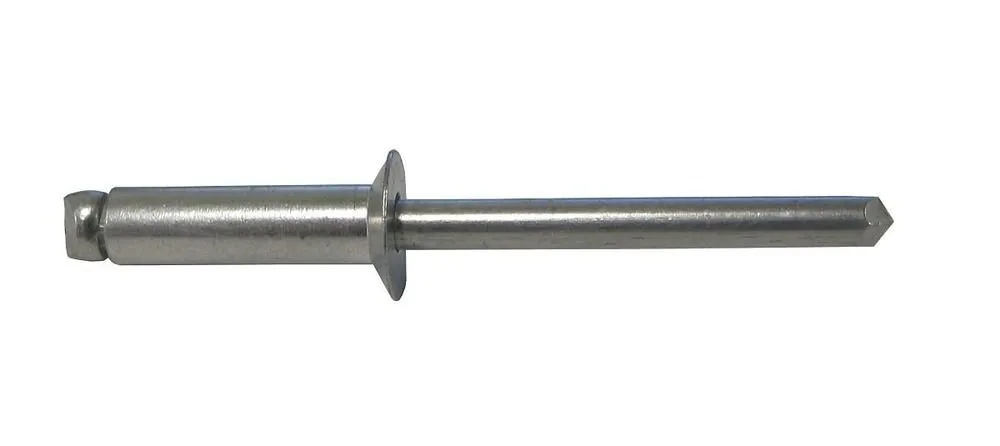

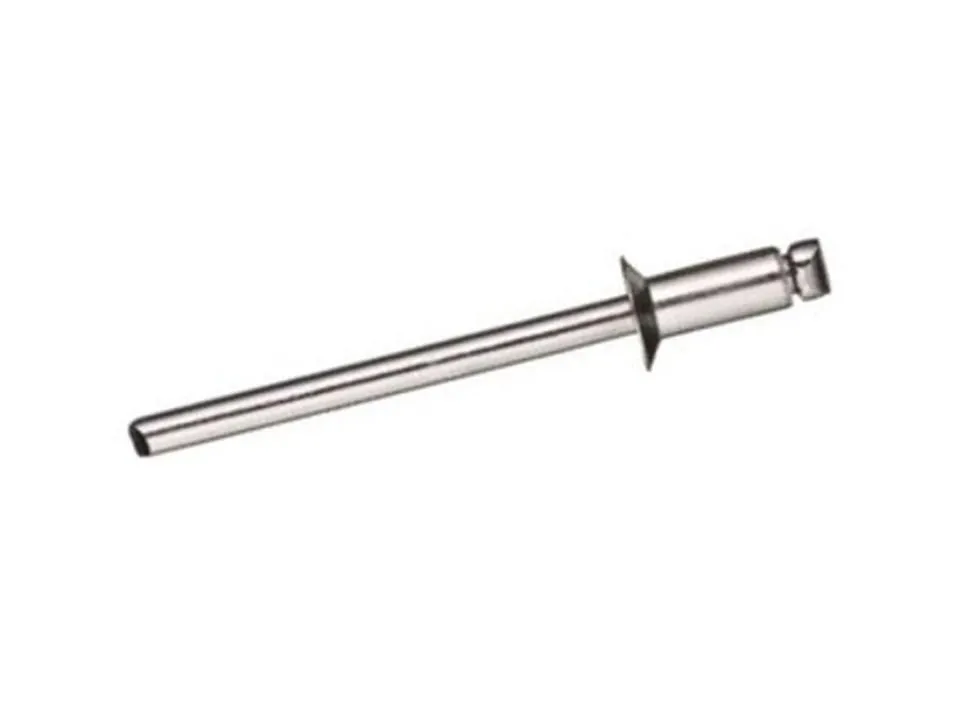

4.8 mm (3/16") Aluminum / Steel Countersunk Pop Rivet
The countersunk structure enables a flush surface installation, facilitating subsequent assembly or surface finishing.
4.8 mm (3/16") Stainless Steel Countersunk Pop Rivet
It takes into account high strength, corrosion resistance and a flush appearance. It is suitable for industrial equipment panels, outdoor structural components and assembly projects.

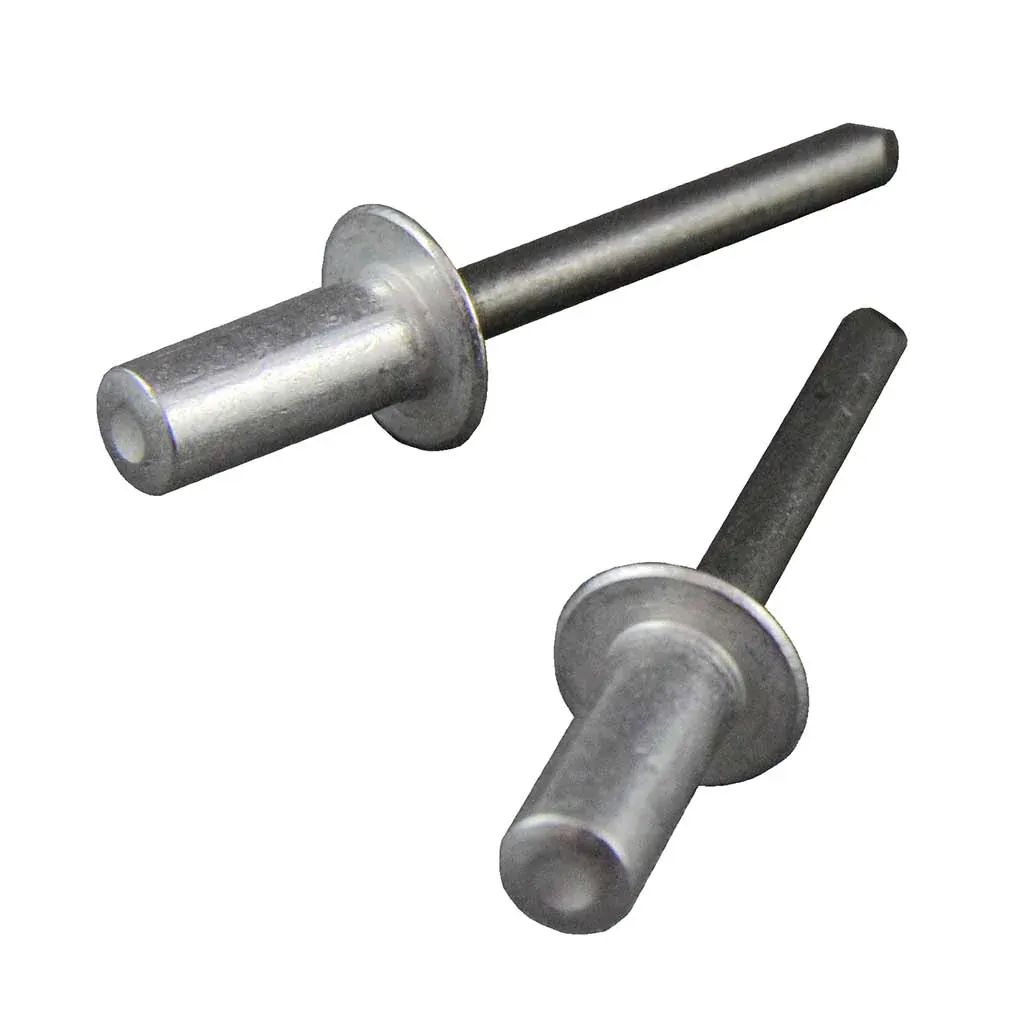

4.8 mm (3/16") Closed End Steel/Steel Pop Rivet
Closed structures can reduce the risk of liquid, dust or gas seepage from the riveted points. They are suitable for connection applications that have requirements for sealing protection.
HOW TO CHOOSE
4.8 mm (3/16") Pop Rivets vs 4.0 mm and 6.4 mm: How to Choose the Right Size
4.8 mm vs 4.0 mm: When Should You Upgrade?
- Strength Level: The 4.8 mm (3/16″) diameter is larger and typically offers higher tensile and shear bearing capacity compared to 4.0 mm, making it more suitable for load-bearing structural connections.
- Bore Diameter and Drilling Impact: The 4.8 mm requires a larger pre-drilled hole size, which has a more significant impact on thin plates, but can result in a more stable riveting effect.
- Typical Load Scenarios: The 4.0 mm is more suitable for general medium-load assemblies, while the 4.8 mm is better suited for higher load scenarios such as equipment frames, support systems, vehicle components, etc.
- Upgrade Recommendation: When there is loosening, insufficient strength, or insufficient safety margin at the 4.0 mm riveting points, upgrading to 4.8 mm is a common and reasonable engineering choice.
4.8 mm vs 6.4 mm: When Does 6.4 mm Represent Excessive Engineering?
- Strength Level: 6.4 mm is typically used for connections with higher loads and thicker plates, and its strength grade is significantly higher than 4.8 mm. However, not all projects require this.
- Bore Diameter and Drilling Impact: The 6.4 mm drilling size is larger and has a more significant impact on thin plate materials. It also increases processing costs and assembly difficulty.
- Typical Load Scenarios: 6.4 mm is more commonly used for heavy-duty structural components, high impact loads, or connection areas with high safety requirements.
- Selection Recommendation: If the application scenario is for routine industrial assembly or medium-high load structural connections, 4.8 mm is usually sufficient; only when there are clear high load or higher safety requirements should 6.4 mm be considered.
Selection Recommendation: A Practical Guideline
- Choose 4.0 mm: This option is more suitable when the aperture is strictly limited and the load requirement is not high.
- Choose 4.8 mm (3/16″): This is the more balanced standard specification when higher strength, better stability, and control of the drilling impact are needed.
- Choose 6.4 mm: This option is more appropriate for projects with obvious high load, thick plates, or strong vibration and impact conditions, and when a higher safety margin is required.
APPLICATIONS
Applications of 4.8 mm Pop Rivets
Equipment Frames & Racks
With a 4.8 mm (3/16″) rod diameter, it offers greater reliability in bearing capacity, suitable for the long-term fixation requirements of frame-type structures.
Solar Mounting Systems
Solar structures are typically exposed outdoors for an extended period, and 4.8 mm rivets offer better anti-loosening capabilities and connection stability.
Trailer / Truck Body Parts
Vehicle components frequently encounter vibration and impact loads, and the 3/16″ specification is more suitable for such high-strength assembly scenarios.
Structural Sheet Metal Assemblies
Compared to 4.0 mm, 4.8 mm is more suitable for connecting load-bearing parts, which can reduce the risk of failure at the connection points.

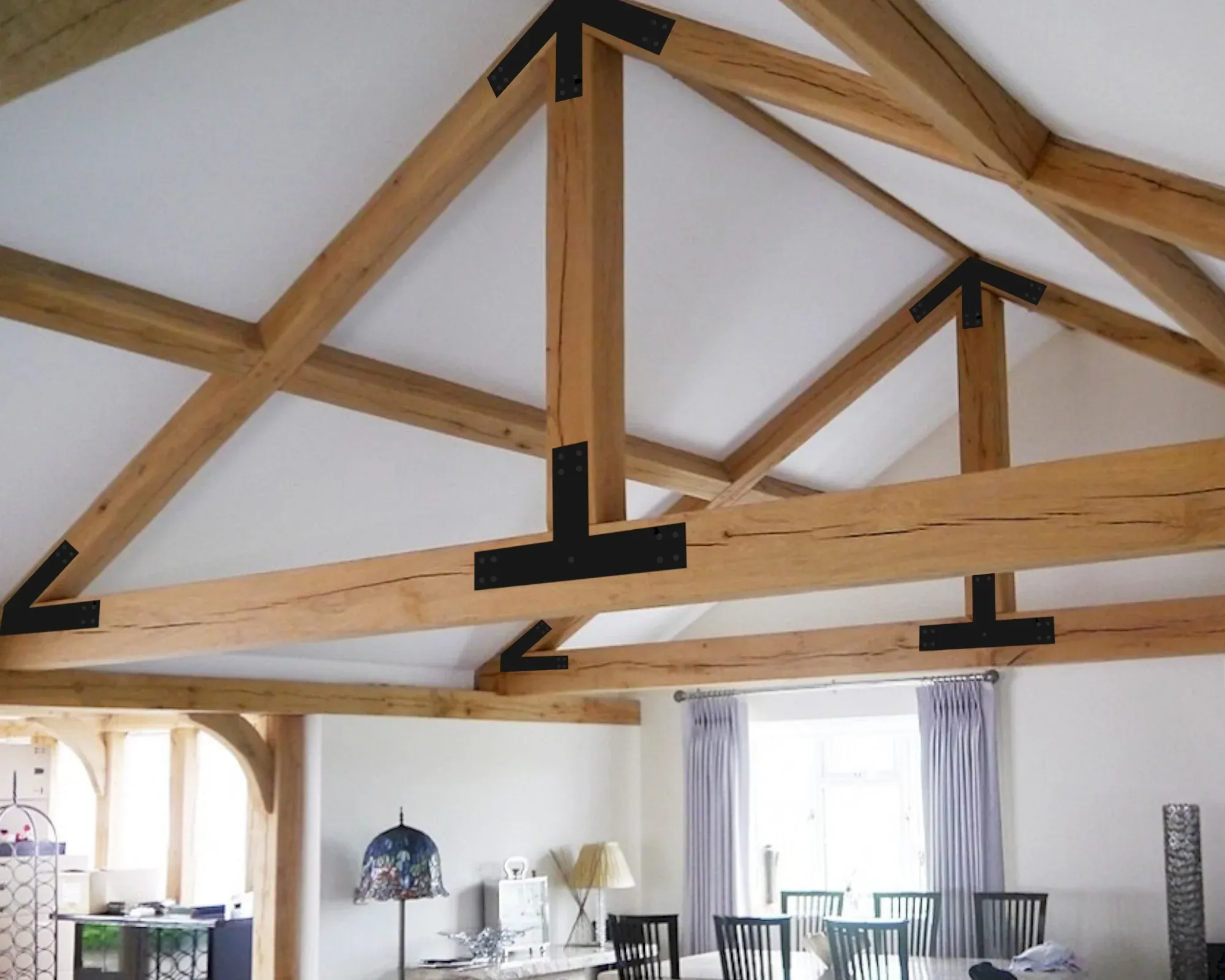

Industrial Brackets & Supports
Suitable for areas with concentrated forces, it can enhance the overall structural connection reliability.
Heavy-Duty Enclosures & Cabinets
For thicker plates or large enclosure structures, 4.8 mm rivets can provide a more stable assembly performance, suitable for mass industrial production.
WHY USE IT
Advantages & Key Benefits
Blind-Side Installation Efficiency
Supports single-side blind installation without requiring rear access, significantly boosting assembly efficiency while reducing labor and time costs. Ideal for high-frequency, high-volume industrial installation scenarios.
Standardized Specifications for Safer Selection
Multiple diameters, grip ranges, and head configurations simplify engineering selection and future replacements, minimizing rework risks from specification mismatches.
Multiple Material Combinations
Offers aluminum, carbon steel, stainless steel, and hybrid options for optimal matching with substrates and environments, balancing strength, corrosion resistance, and cost.
Consistent Mandrel Break Performance
Stable break-off points and uniform tail expansion ensure installation consistency in batches, minimizing loosening and connection failure rates.
Cost-Effective Solution for High-Volume Use
As a proven universal blind rivet, the open-end design delivers fundamental fastening performance while facilitating bulk procurement and cost control.
Wide Tool Compatibility
Compatible with manual, pneumatic, and electric riveting tools, its universal tooling enables rapid deployment across production lines or job sites, minimizing equipment changeover and training costs.
Reliable Performance in Non-Sealed Applications
Optimized for non-sealed conditions, it delivers stable connection performance in indoor or controlled environments. Suitable for sheet metal, enclosure casings, and structural component assembly.
OEM and Bulk Supply Ready
Supports bulk supply and OEM customization requirements, including specifications, materials, and packaging solutions. Facilitates the establishment of long-term, stable industrial fastener supply systems for customers.
Quality & Certifications
Rivmate Quality Control and Certifications
IATF 16949 / ISO Quality Management System
We have established and continuously operated a quality management system that complies with IATF 16949 and ISO standards. Quality control covers key aspects such as raw material inspection, production process monitoring, and shipment inspection. This system is widely applied in the automotive and industrial component supply chain, helping to ensure the stability and consistency of 4.8 mm (3/16″) core-pulling rivets in long-term supply.
Batch Consistency Control
We control the variations in dimensions, tolerances and performance through the standardization of process parameters, production record management and batch traceability mechanisms. Batch consistency is particularly crucial for project-based customers, as it directly affects assembly efficiency and subsequent maintenance costs, and can effectively reduce the risk of rework due to batch differences.
Tensile / Shear Testing Capability
We have the capability for conventional tensile and shear performance tests, which are used to verify the performance of rivet connections for different material combinations and structural forms. The test results can serve as the basis for engineering selection and quality confirmation, helping customers more clearly assess the bearing capacity and application compatibility before large-scale procurement.
Project and Export Experience
We have rich experience in export delivery and project coordination, and are familiar with the requirements of international customers regarding packaging, labels, documents and delivery schedules. For distributors and project-based customers, we can provide a more stable supply rhythm and more standardized delivery support, thereby reducing the uncertainty of cross-border procurement and improving cooperation efficiency.
OEM
Customization Options for 4.8 mm (3/16") Pop Rivets
Length & Grip Range
We can match 4.8 mm (3/16″) blind rivets of different lengths and clamping ranges according to the total thickness combination of the customer’s sheet materials.
Material & Surface Finish
We offer a variety of material combinations and surface treatment options, such as aluminum/steel, steel/steel, stainless steel/stainless steel, etc. These can be customized according to corrosion resistance, strength grade and application environment.
Head Style
Various head types such as Dome Head, Large Flange, and Countersunk can be provided. Different head types will affect the force distribution, appearance effect and assembly space requirements.
Packaging & Labeling
We can offer packaging and labeling solutions suitable for distribution and project delivery, including batch traceability labels, barcodes, customer brand labels and customized packaging specifications.
FAQ About 4.8 mm (3/16") Pop Rivets for Industrial Projects
Q1: Is 4.8 mm the same as 3/16 inch?
Yes, 4.8 mm and 3/16 inch usually refer to the same specification in the industrial fastener field. 3/16″ is the standard size commonly used in the European and American markets, while 4.8 mm is the metric expression. Both can often be understood interchangeably during procurement and selection, but it is still recommended to follow the product drawings or standard specification tables when placing orders.
Q2: What hole size is required?
The pre-drilled hole size for 4.8 mm (3/16″) blind rivets is usually slightly larger than the rod diameter. The common recommended range is 4.9–5.0 mm. The specific hole diameter needs to be confirmed in conjunction with the rivet structure, material combination, and assembly process. A too small hole diameter will cause installation difficulties, while a too large hole diameter may affect the riveting strength and clamping stability.
Q3: Is 4.8 mm stronger than 4.0 mm?
This is usually the case. The 4.8 mm diameter rod is larger. Under the same material conditions, the overall tensile force and shear bearing capacity are often higher than those of 4.0 mm. Therefore, it is more suitable for load-bearing structural connections, vibration environments, or industrial assembly where higher safety margins are required. However, the actual strength still depends on the material combination and the design of the rivet structure.
Q4: Can 4.8 mm replace 4.0 mm?
In many cases, it can be replaced, but it is necessary to confirm whether the hole diameter can be enlarged and whether the thickness of the sheet is suitable for larger-sized rivets. If the original structure has problems such as insufficient strength, loosening, or unstable connections, upgrading to 4.8 mm is a common engineering solution. However, if the hole size is fixed or the thickness of the thin sheet is low, the assembly conditions need to be re-evaluated.
Q5: Can you provide samples for testing?
Yes. We can provide 4.8 mm (3/16″) blind rivets as samples for customers to conduct assembly verification and strength tests. The sample specifications can be matched according to the plate thickness, material combination and head type. The sample tests can effectively reduce the risk of bulk procurement, especially suitable for project-based orders.
Q6. Can you support project orders?
Yes. We can support project-based batch purchasing and long-term supply requirements, including specification confirmation, clamping range recommendations, material matching suggestions, sample testing, and batch consistency supply. For structural connection applications, we can also provide more suitable specification solutions based on the customer’s operating conditions to enhance assembly stability and delivery efficiency.
Get Your Rivmate 4.8 mm (3/16") Pop Rivet Quote
If you are looking for 4.8 mm (3/16″) blind rivets suitable for structural connections and load-bearing assemblies, please directly submit an inquiry to Rivmate. Fill in the form with the application scenario, total thickness of the sheet material, target material combination and estimated purchase quantity. Our engineering team will quickly assist you in confirming the appropriate clamping range and specifications, and provide quotations, delivery dates and project supply plans. This can significantly reduce the risk of selection and improve the delivery stability of bulk purchases.
