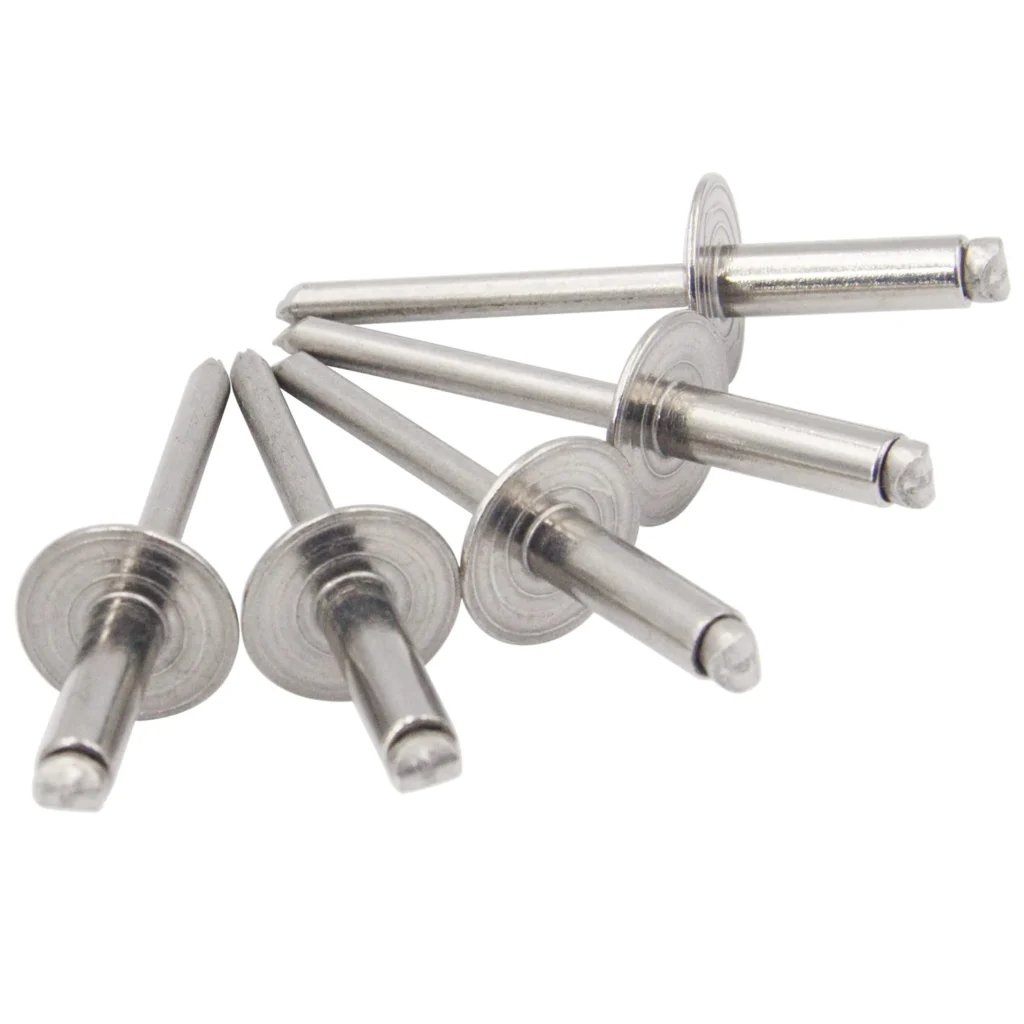

5.2 mm Pop Rivets supplier
5.2-millimeter rivets are suitable for holes with diameters ranging from 5.3 to 5.5 millimeters. They are widely used in sheet metal fastening, metal panel assembly, equipment enclosures, vehicle structures, architectural panels, and industrial manufacturing. Compared to 5.0-millimeter rivets, 5.2-millimeter rivets are better suited for slightly larger hole diameters and provide more secure support for fastening medium-sized panels.
- Designed specifically for 5.3–5.5 mm hole diameters, precisely meeting 5.2 mm fastening requirements
- Provides stronger support for medium-sized sheet metal and panel assemblies
- Direct supply from a 4,000-square-meter factory
Why Choose Our 5.2 mm Pop Rivets
- 5.2mm body diameter provides better fastening strength than smaller rivet sizes.
- One-side installation structure makes it suitable for closed or hard-to-reach assemblies.
- Blind-side deformation helps improve clamping stability after installation
- Proper grip range selection helps reduce loose riveting, spinning, and pull-through risks.
Rivmate —— Your Professional Customized 5.2mm pop rivets suppliers
Rivmate is a trusted supplier of 5.2mm pop rivets, and we implement strict batch control and traceability management. We have consistently focused on the research, development, and mass production of industrial-grade pop rivets. Through our standardized production system and rigorous quality control, we ensure that every batch of 5.2mm rivets maintains stable dimensional accuracy and consistent mechanical properties.
Our products are widely used in sheet metal fastening, equipment enclosures, vehicle panels, and industrial assembly applications, meeting the needs of customers worldwide for stable supply and reliable quality.
Choose 5.2 mm Pop Rivets by Material
Compared to steel and stainless steel rivets, aluminum rivets offer the advantages of being lighter in weight, easier to install, and more cost-effective for bulk purchases. For aluminum sheets, light metal panels, and equipment housings, aluminum rivet bodies and aluminum rivet cores provide better material compatibility.
Aluminum body/Aluminum mandrel 5.2 mm Pop Rivets
Aluminum shell with carbon steel core, puncture-resistant, suitable for soft materials.
Choose 5.2 mm Pop Rivets by head shape
5.2mm round-head pop rivets are recommended for 5.3–5.5mm mounting holes. Compared to smaller rivets, the 5.2mm size provides better structural support. If you have specific aesthetic requirements for the assembly surface, please submit your request for Rivmate to evaluate.
Dome Head 5.2 mm Pop Rivets
The round-head type offers good versatility and features a smooth, rounded head after installation. It is characterized by easy installation, a neat appearance, and a stable connection.
| No. | Product Type | Material | Surface | Washer | Art. Code | Part Number | Size | D (Max) |
E (Max) |
F (Max) |
H (Max) |
L (Max) |
P (Min) |
W (Max) |
Hole Dia | Grip Range | Tensile Ref. | Shear Ref. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5.2 Aluminum Bulbtight Trifirm Rivet | Mandrel: Aluminum Body: Aluminum |
Natural Polish | EPDM | AATFS6604-6-3W | AATFS52175 | 5.2 × 17.5 | 5.2 | 3.4 | 20.9 | 11.6 | 17.9 | 25.4 | 2.95 | 5.3–5.5 | 1.3–4.8 | 1800N | 2700N |
| 2 | 5.2 Aluminum Bulbtight Trifirm Rivet | Mandrel: Aluminum Body: Aluminum |
Natural Polish | EPDM | AATFS6604-6-4W | AATFS52191 | 5.2 × 19.1 | 5.2 | 3.4 | 22.5 | 11.6 | 19.5 | 25.4 | 2.95 | 5.3–5.5 | 1.6–6.4 | 1800N | 2700N |
| 3 | 5.2 Aluminum Bulbtight Trifirm Rivet | Mandrel: Aluminum Body: Aluminum |
Natural Polish | EPDM | AATFS6604-6-6W | AATFS52222 | 5.2 × 22.2 | 5.2 | 3.4 | 25.6 | 11.6 | 22.6 | 25.4 | 2.95 | 5.3–5.5 | 4.7–9.5 | 1800N | 2700N |
| 4 | 5.2 Aluminum Bulbtight Trifirm Rivet | Mandrel: Aluminum Body: Aluminum |
Natural Polish | EPDM | AATFS6604-6-8W | AATFS52254 | 5.2 × 25.4 | 5.2 | 3.4 | 28.8 | 11.6 | 25.8 | 25.4 | 2.95 | 5.3–5.5 | 7.9–12.7 | 1800N | 2700N |
| 5 | 5.2 Aluminum Bulbtight Trifirm Rivet | Mandrel: Aluminum Body: Aluminum |
Natural Polish | EPDM | AATFS6604-6-10W | AATFS52286 | 5.2 × 28.6 | 5.2 | 3.4 | 32.0 | 11.6 | 29.0 | 25.4 | 2.95 | 5.3–5.5 | 11.1–15.9 | 1800N | 2700N |
| 6 | 5.2 Aluminum Bulbtight Trifirm Rivet | Mandrel: Aluminum Body: Aluminum |
Natural Polish | EPDM | AATFS6604-6-12W | AATFS52318 | 5.2 × 31.8 | 5.2 | 3.4 | 35.2 | 11.6 | 32.2 | 25.4 | 2.95 | 5.3–5.5 | 14.3–19.1 | 1800N | 2700N |
Note: All dimensions are in millimeters. This table is based on the 5.2 Aluminum Bulbtight Trifirm Rivet section in the Rivmate catalog. Final selection should be confirmed according to total grip thickness, hole diameter, installation tool, material compatibility, and sealing requirements.
Steps of Blind Rivet Installation
- Insert the rivet into the pre-drilled hole, ensuring that the rivet head sits flush against the workpiece.
- Place the rivet gun’s nozzle over the rivet mandrel and hold the tool vertically.
- Activate the rivet gun and pull the rivet mandrel to expand the rivet body and secure the workpiece.
- Once the rivet mandrel breaks off, the riveting is complete. Check that the rivet is secure and flush.
Certified Manufacturing System
Rivmate manufactures and controls the quality of 5.2 mm pop rivets in accordance with IATF 16949 and multiple international ISO standards. Throughout the entire process—from raw material inspection and production process monitoring to final shipment inspection—we ensure that every batch of 5.2 mm pop rivets meets strict industrial standards.
- Compliant with IATF 16949 and ISO quality systems
- Batch consistency control
- Meets industrial assembly requirements
Through standardized process parameter control, documented production batch records, and a comprehensive traceability system, Rivmate strictly manages dimensional tolerances and performance deviations. This reduces quality risks in batch assembly and makes our products suitable for long-term repeat purchases and industrial assembly needs.
Tested & Consistent Quality
Rivmate’s mass production quality inspection is tailored for the standard, best-selling 5.2mm pop rivet specifications. Rivmate has established a testing laboratory in accordance with the IATF 16949:2016 standard to provide reliable testing and calibration data to our customers and industry peers, ensuring compliance with product quality requirements.
- 100% final inspection of appearance
- Precision dimensional tolerance testing
- Mandatory mechanical and physical performance testing for each batch, with tensile strength up to 1800N and shear strength up to 2700N
- Real-world riveting simulation testing covering lengths up to 19.1mm
- Vibration endurance testing
- Corrosion and weather resistance salt spray testing
Rivmate’s mass-produced 5.2mm pop rivets are manufactured and inspected in accordance with applicable ISO and GB standards, as well as customer drawings. Key dimensions and mechanical properties can be tested in-house per order specifications. This ensures suitability for OEMs, fastener distributors, and industrial-grade long-term bulk purchasing needs.
Applications of 5.2 mm Pop Rivets
5.2 mm pop rivets are used in medium-sized industrial fastening applications. Compared to 5.0 mm pop rivets, the 5.2 mm size is better suited for 5.3–5.5 mm mounting holes. The 5.2 mm size can accommodate slightly larger hole diameters and medium-to-large panel connections. It is also suitable for multi-layer panel assemblies. While not primarily intended for heavy-duty structural connections, the 5.2 mm size is well-suited for sheet metal panels, equipment enclosures, vehicle panels, building panels, and light- to medium-duty industrial assemblies.
Connecting Panels with Specific Hole Sizes
5.2 mm pop rivets are designed for panels with mounting holes ranging from 5.3 to 5.5 mm. When the hole size in your product is slightly larger than that of a 5.0 mm rivet, the 5.2 mm size provides a better fit and a more secure connection.
Medium to Large Sheet Metal Panels
5.2 mm pop rivets provide better structural support than 5.0 mm rivets, making them suitable for applications with large panel areas or where connection points require more stable clamping.

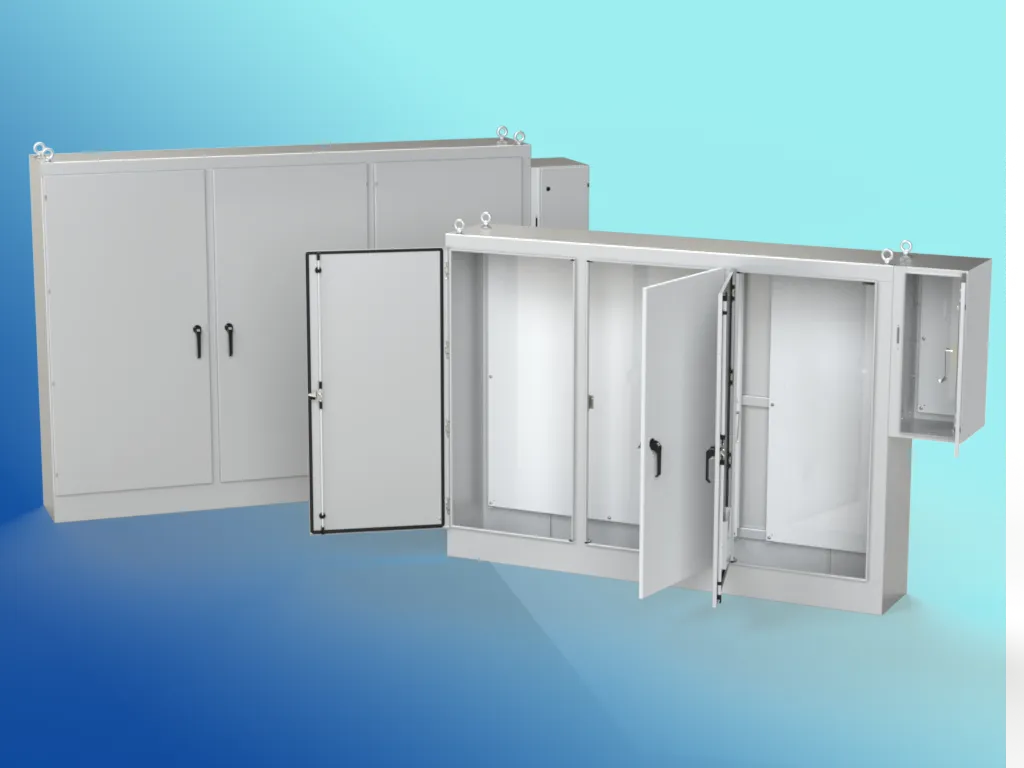

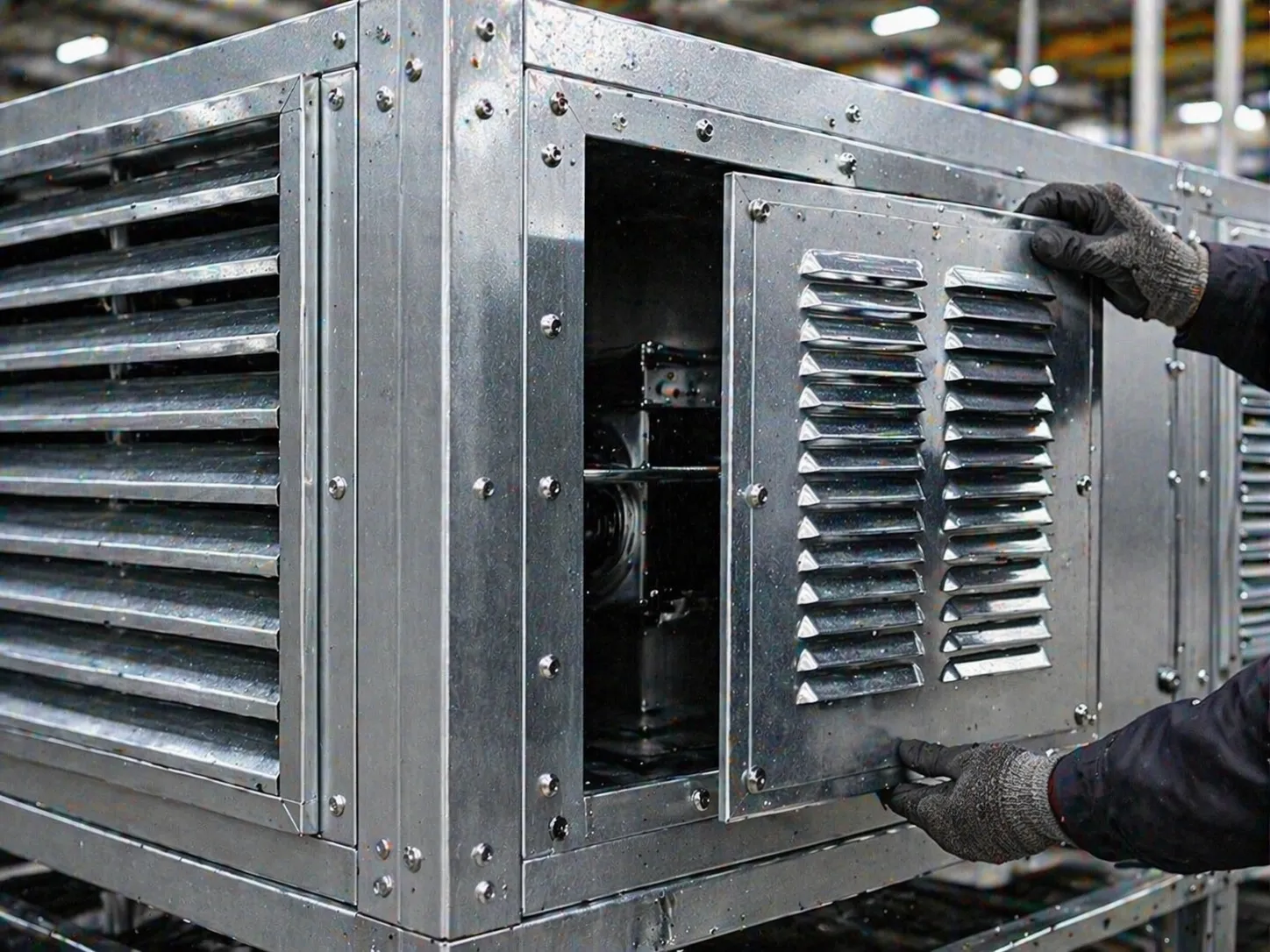

Equipment Enclosures and Protective Covers
对于孔径稍大的较大设备面板或外壳结构，5.2毫米铆钉比5.0毫米铆钉更合适。常用于设备外壳、机械防护罩、金属盖板、控制面板外壳和工业设备面板的组装。

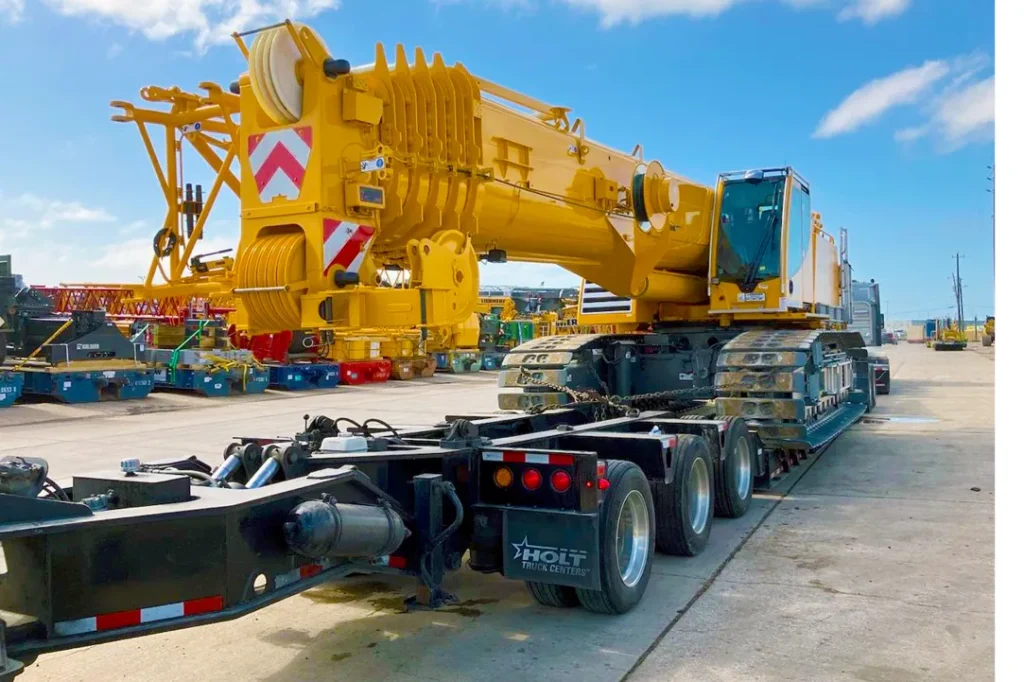

5.2 mm pop rivets provide a more stable connection than 5.0 mm rivets. They can be used for vehicle side panels, trailer panels, aluminum body panels, interior trim panels, and lightweight body structures.

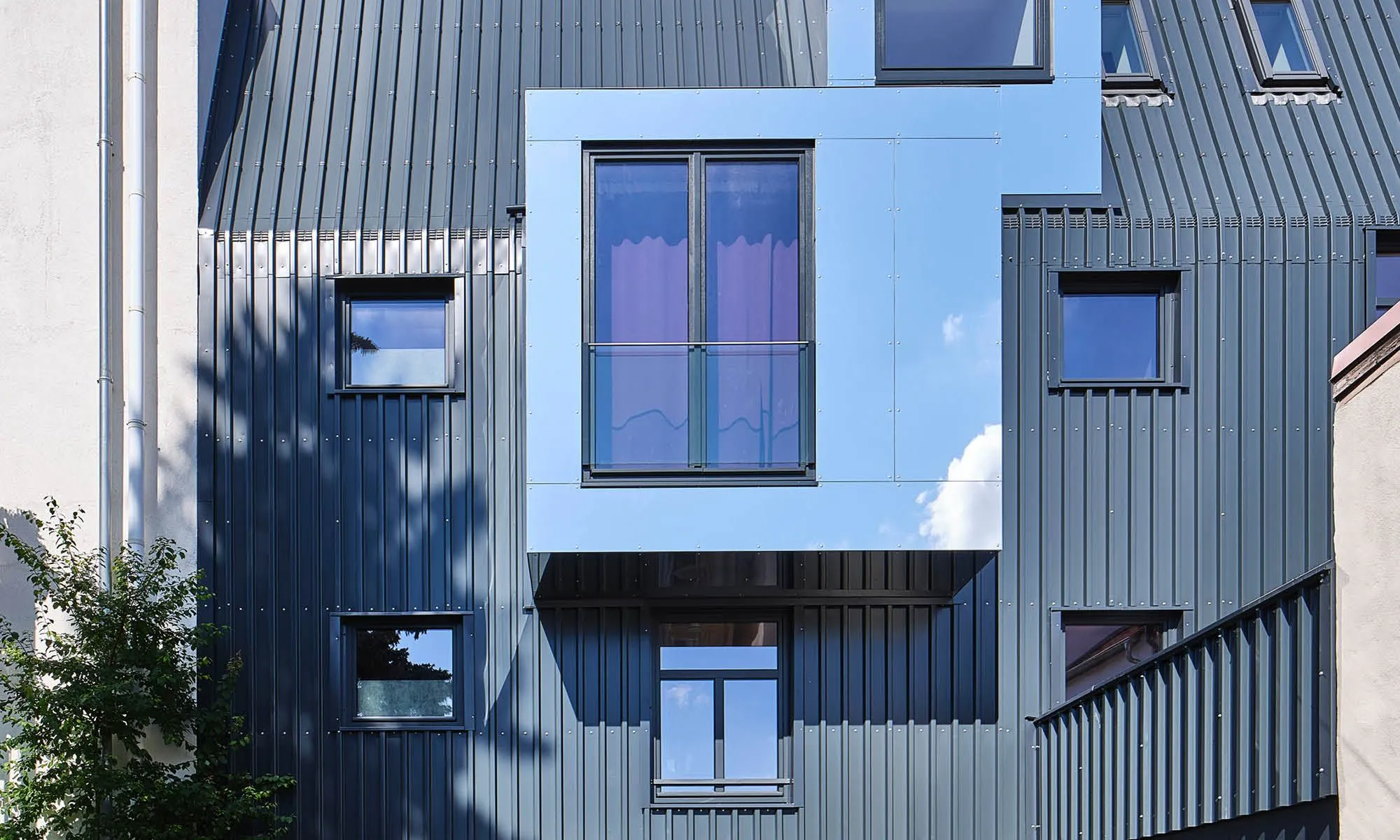

5.2 mm rivets provide better hole-filling performance than 5.0 mm rivets. They are suitable for fastening roof panels, wall metal panels, curtain wall cladding, decorative metal panels, and lightweight building panels. 5.2 mm rivets are intended for panel fastening and are not suitable for heavy-duty building structural connections.
Get An Instant Quote Now
1.What types of 5.2mm pop rivets are recommended for electrical enclosure assembly?

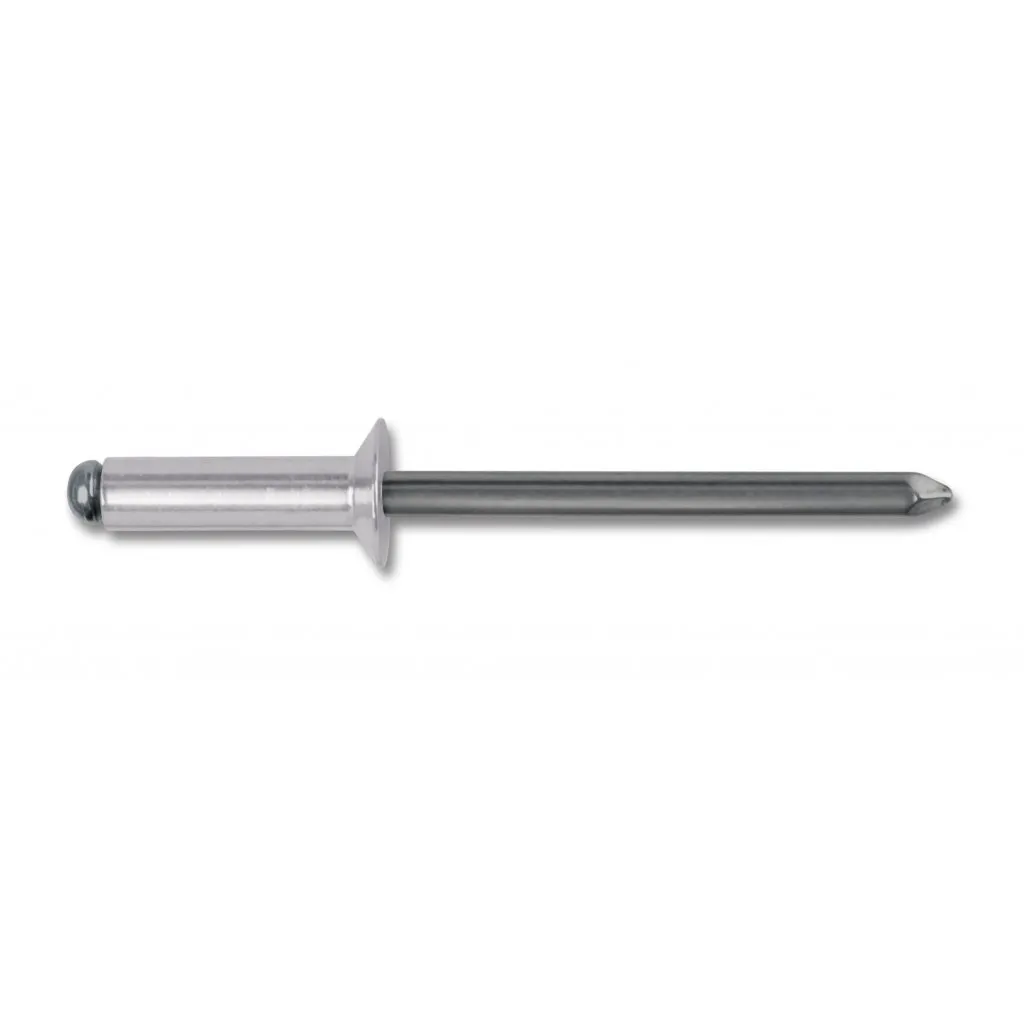

For electrical cabinet assembly, the following 5.2mm pop rivets are recommended: round-head rivets, wide-flange rivets, closed-end rivets, countersunk rivets, and Multi-Grip rivets with a wide clamping range.
For general cabinet assembly, round-head rivets are recommended. For thin-gauge or soft-material panels, wide-flange rivets are recommended to reduce stress. For outdoor cabinets or those designed to be dust- and moisture-resistant, closed-end rivets are recommended to enhance waterproofing and corrosion resistance. Countersunk rivets are recommended for areas where a smooth, flush finish is required.
2.Are 5.2mm pop rivets suitable for automotive repairs
These can be used in automotive repairs; selection should be based on the repair location and load-bearing requirements.
5.2mm pop rivets are suitable for use in automotive repairs on sheet metal body panels, interior trim, brackets, protective panels, cabin panels, and non-critical load-bearing structures. 5.2mm pop rivets are suitable for 5.3–5.5mm installation holes and are better suited than 5.0mm rivets for joining slightly larger holes or medium-to-thick sheet metal.
For critical structural components such as chassis, suspension, crash safety structures, load-bearing beams, and bumper beams, the direct use of standard 5.2mm pop rivets is not recommended. It is recommended to use specialized structural rivets, bolts, or welding processes instead.

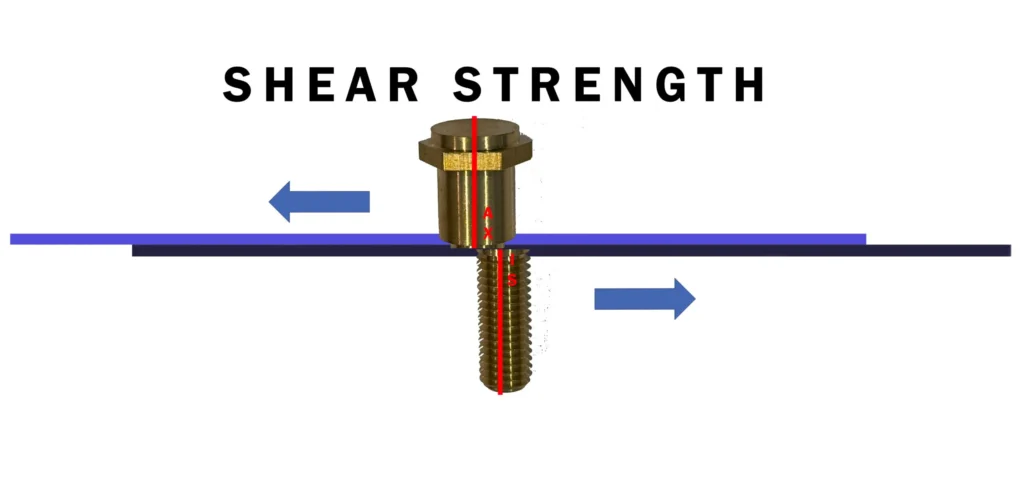

3.What are the load-bearing capacities of different 5.2mm pop rivet types?
5.2毫米抽芯铆钉的实际承载能力主要取决于铆钉材料、铆钉芯棒材料、铆钉结构、铆头类型、夹紧范围、板材厚度和安装质量。根据Rivmate产品数据，5.2铝制Bulbtight Trifirm铆钉的参考抗拉强度为1800牛，参考抗剪强度为2700牛。
4.What are the compatibility requirements for 5.2mm pop rivets with various material thicknesses?
Whether 5.2mm pop rivets are suitable for a particular sheet thickness depends primarily on the grip range, not just the rivet diameter. Depending on their length, Aluminum body/Aluminum mandrel 5.2 mm Pop Rivets can accommodate sheet thicknesses ranging from 1.3mm to 19.1mm.
5.Which types of 5.2mm pop rivets offer superior vibration resistance?
Among 5.2 mm pop rivets, the types that offer better vibration resistance are typically those with a more stable mandrel structure or a design that provides greater clamping force, such as aluminum/steel mandrel rivets or structural pop rivets with enhanced locking performance.
Resource Center
Access helpful materials to support your project planning and product selection. Download documents for reference and on-site use.
Rivet Catalog
Browse our full blind rivet catalog including product types, specifications, and application examples.I am Trailer Box Description Text. You can change me anytime from settings.
5.2 mm Pop Rivet Drawing
Download the technical drawings for the rivets, which include dimensions, internal structure, and basic product information
Comparison of stainless steel vs aluminum 5.2mm pop rivets
| Comparison Dimension | Stainless Steel 5.2 mm Pop Rivets | Aluminum 5.2 mm Pop Rivets |
|---|---|---|
| Strength | Higher strength, suitable for high-load and vibration environments | Medium strength, suitable for general industrial assembly |
| Weight | Heavier | Lighter, suitable for lightweight structures |
| Corrosion Resistance | Stronger corrosion resistance, suitable for outdoor, coastal, and chemical environments | Good corrosion resistance, suitable for common industrial environments |
| Installation Difficulty | Requires higher pulling force and puts more load on the riveting tool | Easier to install, suitable for batch production |
| Cost | Higher cost | More cost-effective |
| Typical Applications | Outdoor equipment, marine environments, and high-strength structures | Sheet metal panels, equipment housings, vehicle panels, and building panels |
What are the best practices for surface preparation before installing 5.2mm pop rivets?
Proper surface preparation is essential before installing 5.2mm pop rivets.It directly affects the ease of insertion, clamping effectiveness, tensile and shear strength, and long-term stability of the joint.
1. Verify the Correct Hole Diameter
For 5.2 mm rivets, the recommended hole diameter is typically 5.3–5.5 mm. A hole that is too large or too small can result in looseness or misalignment after riveting.
2. Remove Burrs Around the Hole
After drilling a hole in a workpiece, burrs often form around the hole edges. Burrs on both sides of the hole opening should be removed before installation.
3. Remove Oil, Dust, and Metal Deburrs
The riveting surfaces must be kept clean and dry. Before installation, remove oil, dust, metal deburrs, cutting fluid residues, and loose coatings.
4. Check Material Thickness and Clamping Range
Before installation, measure the total thickness of all materials to be joined to ensure it falls within the clamping range specified for 5.2mm pop rivets.
5. Ensure Sheet Alignment
Before riveting, the holes in two or more layers of sheet metal must be aligned.
If the holes are misaligned, the rivet will enter at an angle, affecting both the appearance and strength of the riveted joint.
6. Remove Rust or Oxidation from Metal Surfaces
For steel sheets, stainless steel sheets, or metal panels that have been in long-term storage and show signs of rust, remove the rust through cleaning or appropriate surface treatment before installation; alternatively, re-drill the holes or replace the panels.
5.2mm pop rivets suppliers for bulk orders
Rivmate 是一家专业的 5.2 毫米抽芯铆钉工厂直销和批量供应商，专门为全球 OEM 制造商、工业设备公司和紧固件分销商提供稳定可靠的大批量供应解决方案。

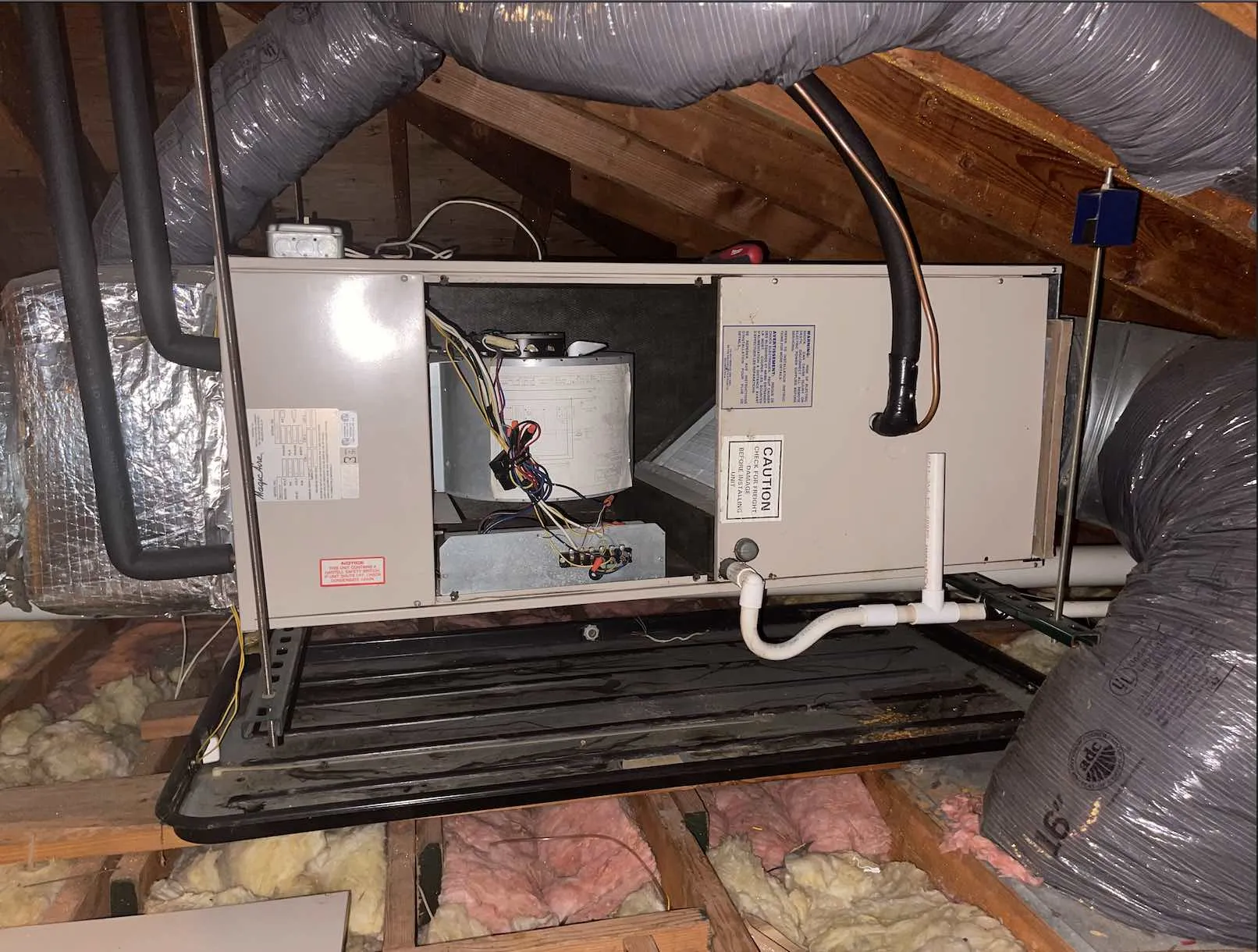

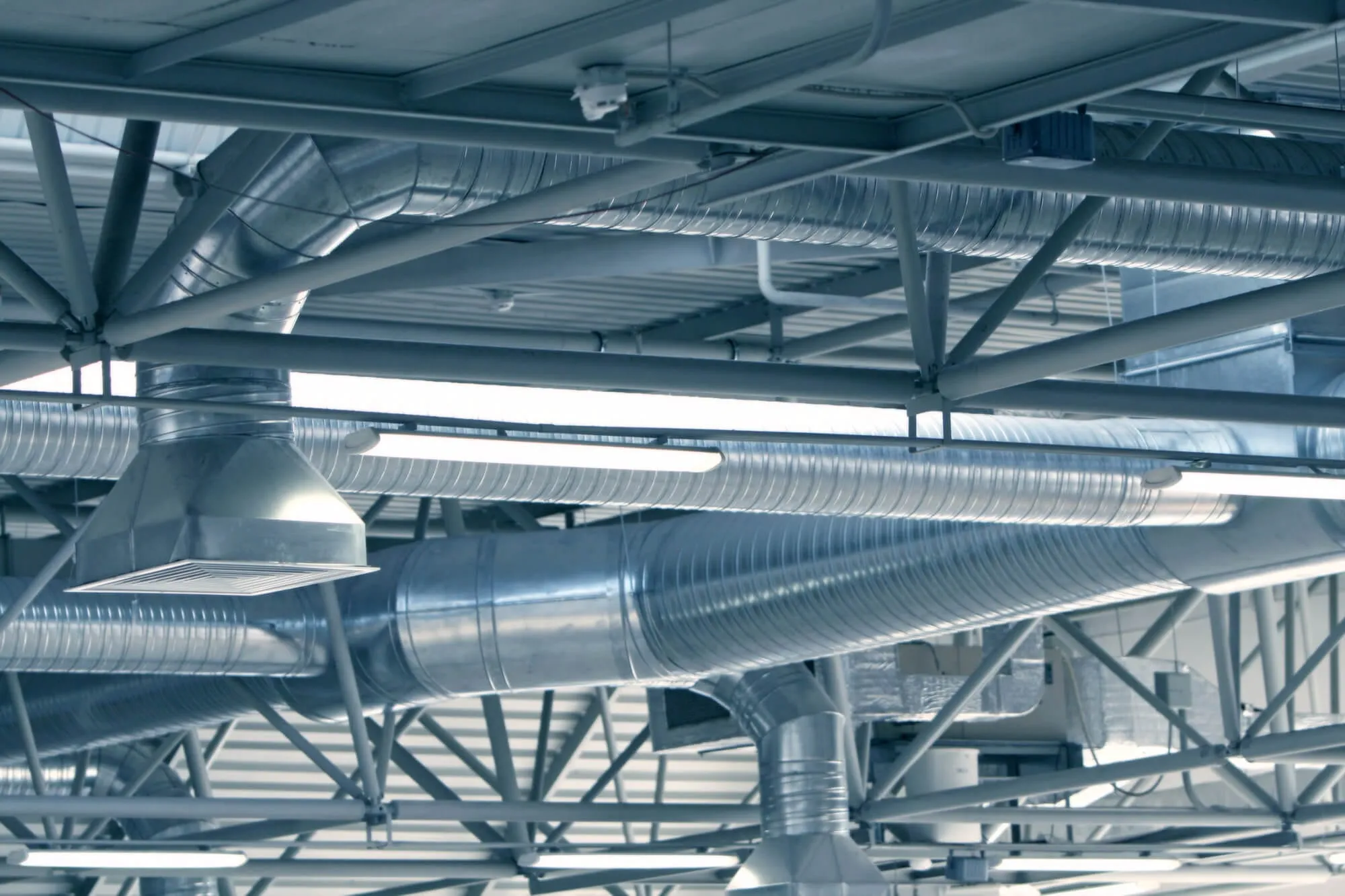

Rivmate 遵循标准化的生产体系和严格的质量控制流程，以确保批次一致性、交付可靠性和长期供应能力。5.2 毫米抽芯铆钉广泛应用于钣金紧固、设备外壳、车辆面板、建筑面板、暖通空调系统和工业结构组件。它们尤其适用于需要稳定紧固性能和长期批量采购的工业项目。
如果您正在寻找可靠的抽芯铆钉供应商，Rivmate 提供始终如一的质量控制和工程级技术支持。立即联系我们，与 Rivmate 建立长期稳定的合作伙伴关系。
