6.4 mm Pop Rivets Manufacturer
Structural-Grade Fastening for Heavy-Duty Applications
Specifically designed for high-load and thick-plate connections, the 6.4 mm (1/4″) specification offers increased shear area and higher load-bearing capacity. Suitable for structural-grade assemblies and high-vibration applications.
As a professional blind rivet manufacturer, Rivmate provides consistent batch control and bulk production capabilities. We support OEM partnerships and long-term project collaborations.

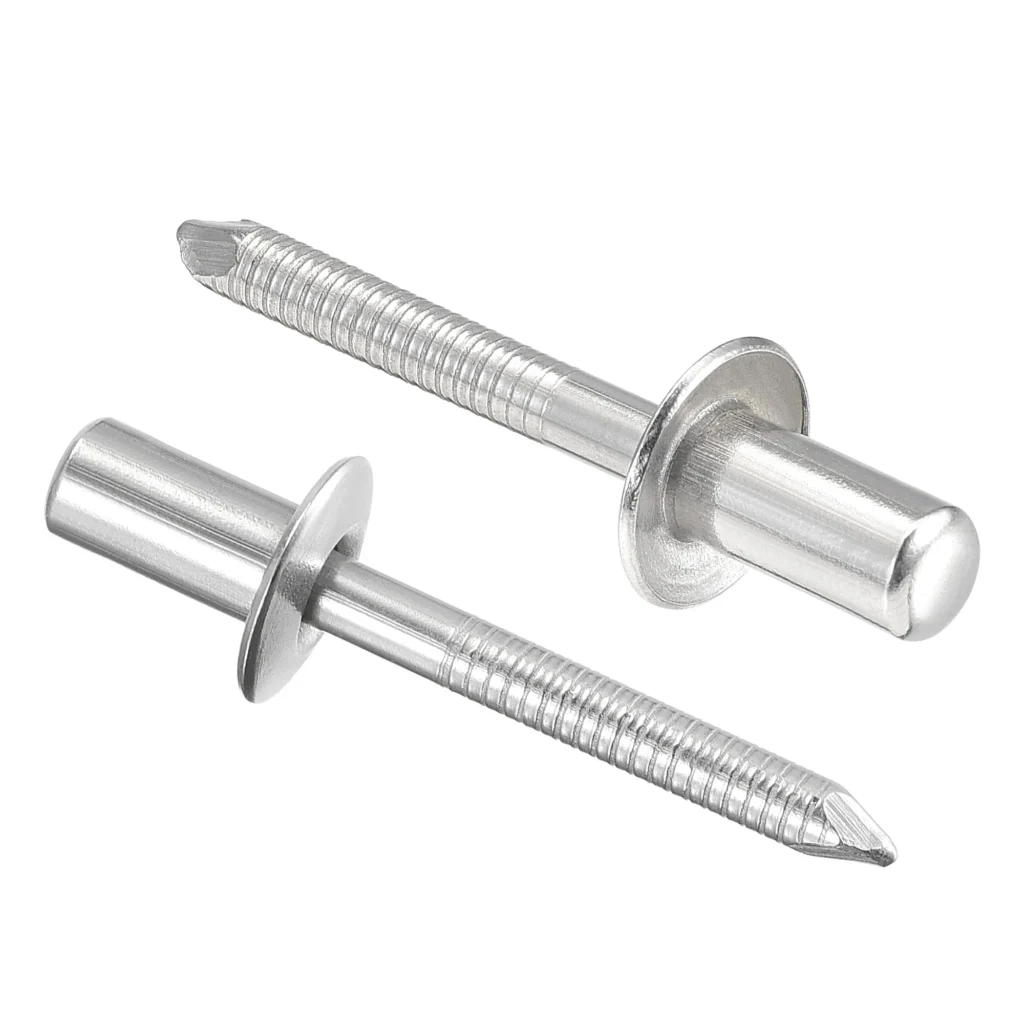

6.4 mm (1/4”) Blind Rivets Overview
6.4 mm pop rivets (also known as 1/4″ blind rivets) are large-diameter, single-side installation fasteners consisting of a rivet body and a mandrel. Installation is completed from one side of the workpiece using a riveting tool, forming a permanent mechanical locking structure. This specification falls within the heavy-duty fastening category, offering greater shear area and higher load-bearing capacity compared to smaller diameter rivets.
It is primarily used for thick plate connections, structural component assembly, and heavy industrial applications in high-vibration environments. Examples include automotive body manufacturing, steel structure joining, and heavy equipment mounting. It effectively enhances connection stability while reducing the risk of loosening due to excessive loads or prolonged vibration. This specification is commonly employed in structural-grade fastening solutions.
Diameter
6.4 mm (1/4″)
Recommended Hole Size
Typically 6.5–6.6 mm
Grip Range Options
Multiple lengths available to accommodate various plate thickness combinations
Head Types
Dome Head
Large Flange
Countersunk
Material Combinations
Aluminum
Steel, Steel
Steel, Stainless Steel
Stainless Steel
Structural Type Available
Optional structural lock core design
6.4 mm (1/4”) Blind Rivets Product Types
6.4 mm Dome Head Pop Rivets
Standard dome head design ensures even force distribution, ideal for heavy-duty sheet metal and structural connections. A common specification in industrial assembly.
6.4 mm Large Flange Blind Rivets
The wide flange structure increases the load-bearing surface area, suitable for connecting softer materials or thin sheets, reducing the risk of material deformation.
6.4 mm Countersunk Head Rivets
The countersunk design enables flush-mounted installation, suitable for industrial applications requiring surface aesthetics or structural flatness.
6.4 mm Aluminum/Steel Rivets
Combining an aluminum body with a steel core balances weight and strength, suitable for medium-to-high load industrial connections.
6.4 mm Steel/Steel Rivets
The all-steel construction provides superior tensile and shear resistance, ideal for heavy-duty and high-strength structural joints.
6.4 mm Stainless Steel Rivets
Fully stainless steel construction delivers superior corrosion resistance, suitable for outdoor or high-humidity environments.
6.4 mm Structural Blind Rivets
Structural locking core design enhances vibration resistance and anti-loosening properties, ideal for critical structural connections.
6.4 mm Closed-End Blind Rivets
Closed-end design improves sealing performance, suitable for industrial applications requiring waterproofing or airtightness.
APPLICATIONS
6.4 mm Blind Rivets Applications in Heavy-Duty Industries

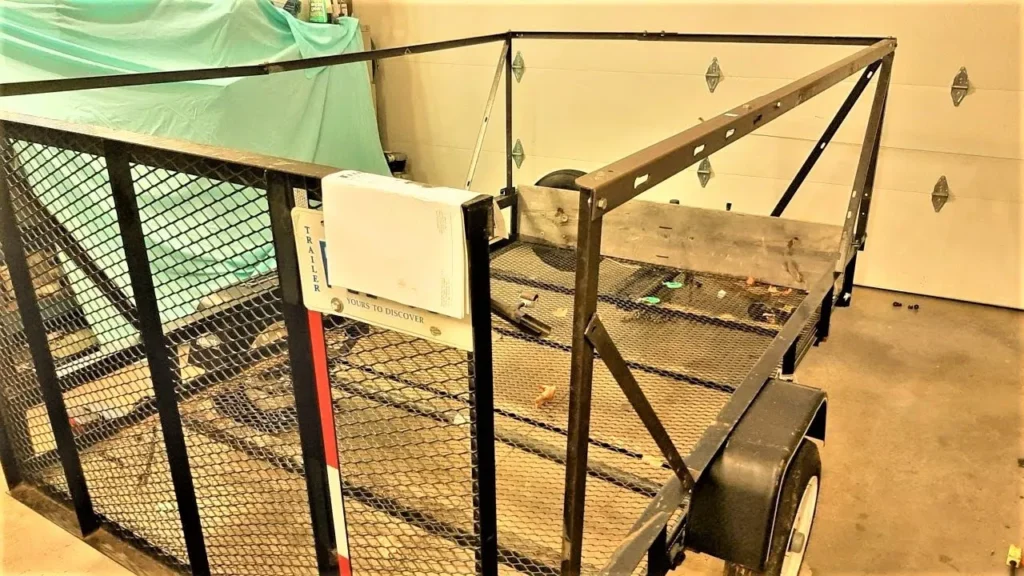

Trailer Manufacturing
For connecting trailer frames to side panel structures, the 6.4 mm specification is suitable for securing thick steel plates or reinforcing members, maintaining stable connection performance under dynamic loads and road vibration conditions.

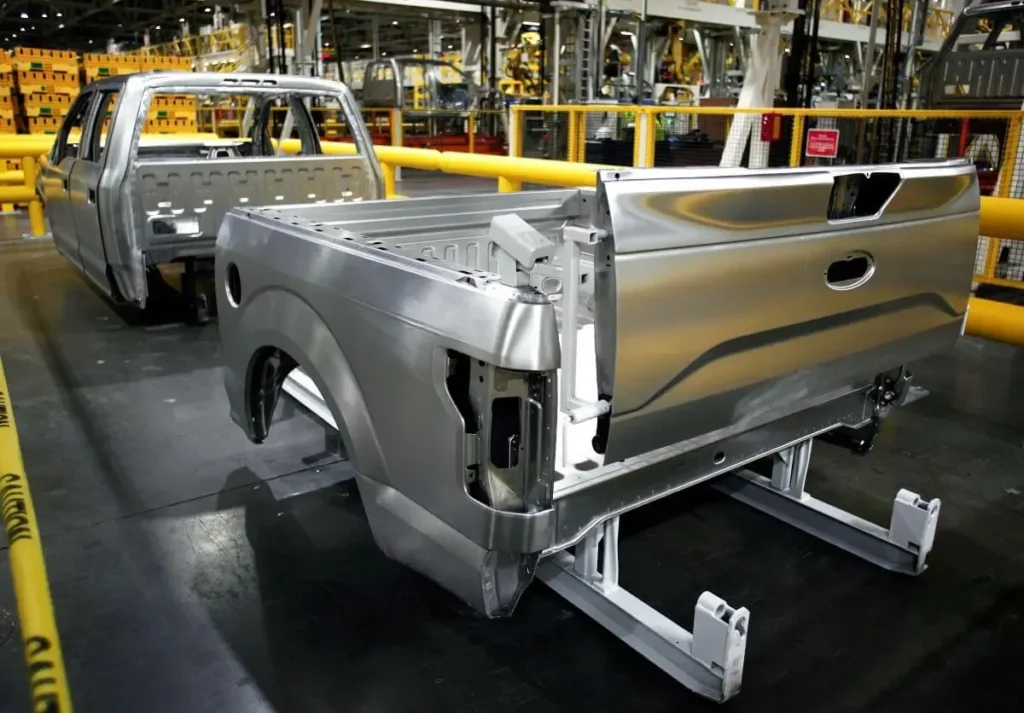

Truck Body Assembly
During truck body assembly with structural frames, this specification serves high-strength connection points, enhancing overall structural rigidity and reducing long-term loosening risks.
Steel Structure Fabrication
For joining steel structural components and installing support elements, 6.4 mm blind rivets meet medium-to-high load connection requirements, suitable for installations where dual-side access is unavailable.

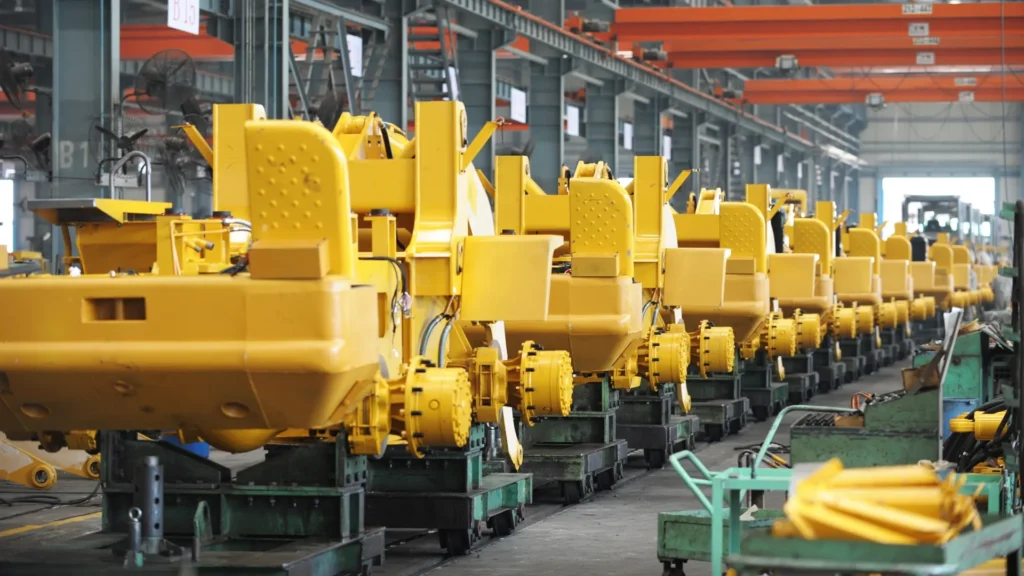

Heavy Equipment Manufacturing
In securing housings or structural components for construction machinery and heavy equipment, this specification withstands high mechanical stresses, ideal for long-term operational conditions.
Agricultural Machinery
Agricultural equipment typically operates in high-vibration and demanding environments. The 6.4 mm specification enhances connection reliability and reduces maintenance frequency.
Industrial Construction
For installing industrial plant facilities and structural components, this specification is suitable for connecting medium-to-thick plates and structural joints in projects requiring strength and stability.
WHY USE IT
Advantages & Key Benefits
Blind-Side Installation Efficiency
Supports single-side blind installation without requiring rear access, significantly boosting assembly efficiency while reducing labor and time costs. Ideal for high-frequency, high-volume industrial installation scenarios.
Standardized Specifications for Safer Selection
Multiple diameters, grip ranges, and head configurations simplify engineering selection and future replacements, minimizing rework risks from specification mismatches.
Multiple Material Combinations
Offers aluminum, carbon steel, stainless steel, and hybrid options for optimal matching with substrates and environments, balancing strength, corrosion resistance, and cost.
Consistent Mandrel Break Performance
Stable break-off points and uniform tail expansion ensure installation consistency in batches, minimizing loosening and connection failure rates.
Cost-Effective Solution for High-Volume Use
As a proven universal blind rivet, the open-end design delivers fundamental fastening performance while facilitating bulk procurement and cost control.
Wide Tool Compatibility
Compatible with manual, pneumatic, and electric riveting tools, its universal tooling enables rapid deployment across production lines or job sites, minimizing equipment changeover and training costs.
Reliable Performance in Non-Sealed Applications
Optimized for non-sealed conditions, it delivers stable connection performance in indoor or controlled environments. Suitable for sheet metal, enclosure casings, and structural component assembly.
OEM and Bulk Supply Ready
Supports bulk supply and OEM customization requirements, including specifications, materials, and packaging solutions. Facilitates the establishment of long-term, stable industrial fastener supply systems for customers.
HOW TO CHOOSE
Blind Rivet Size Comparison
| Comparison Item | 4.8 mm Rivet | 6.0 mm Rivet | 6.4 mm (1/4”) Rivet |
|---|---|---|---|
| Shear Area | Smaller | Medium | Largest |
| Load Capacity | Suitable for general assembly | Suitable for medium to high load connections | Suitable for heavy-duty and structural applications |
| Typical Applications | Light sheet metal, general industrial use | Medium-thickness materials, equipment assembly | Steel structures, truck body manufacturing, heavy equipment |
| Structural Suitability | Generally not used for structural applications | Suitable for certain structural scenarios | Suitable for structural-grade and high-vibration environments |
Increased diameter means a larger shear cross-sectional area, enabling higher lateral load capacity under identical material conditions.
The 4.8 mm size is better suited for lightweight assembly scenarios; the 6.0 mm is suitable for medium load requirements; while the 6.4 mm (1/4″) size, with its larger cross-section and higher load-bearing capacity, is more appropriate for heavy-duty or structural-grade applications.
HOW TO CHOOSE
In the 6.4 mm (1/4″) specification, the adoption of a Structural Type design directly impacts connection strength and long-term stability. For heavy-duty or critical structural applications, Structural Type blind rivets typically offer greater advantages than standard types.
Mechanical Locking System
Structural blind rivets incorporate a mechanical locking mechanism that maintains a secure lock even after the mandrel breaks, preventing mandrel loosening or vibration-induced displacement. Compared to standard open-end blind rivets, their internal locking structure delivers more reliable joint integrity, making them particularly suitable for structural-grade applications.
Vibration Resistance
In high-vibration environments (e.g., vehicle operation or machinery running), structural blind rivets significantly reduce loosening risks due to their locking core design. In practice, structural products typically demonstrate superior connection stability under dynamic loads compared to standard types.
Higher Tensile Performance
Due to reinforced locking mechanisms, structural 6.4 mm blind rivets generally exhibit superior tensile performance compared to standard types. Under identical diameter and material conditions, tensile capacity increases by approximately 20–30% (specific values depend on material and structural design).
Dynamic Load Stability
Under cyclic loading or impact conditions, the structural design more effectively disperses stress concentrations, reducing fatigue risks in the joint. For structural nodes involving safety or long-term load-bearing, structural blind rivets offer superior engineering suitability.
OEM
Custom Rivet Solutions for Your Projects
Custom Grip Range & Length
- Custom non-standard rod lengths
- Precisely matches multi-layer or thick plate connections
- Optimized grip range prevents over-clamping or insufficient clamping
- Supports project-specific custom specifications
Enhanced Strength Grade
- High-strength core rod material selection
- Upgraded structural lock core design
- Optimized for high dynamic load scenarios
- Provides mechanical performance test data support
Advanced Surface Coating
- Zinc plating or color zinc treatment
- High corrosion-resistant coatings like Dacromet
- Stainless steel corrosion-resistant solutions
- Adapted for outdoor or high-humidity environments
Private Label & Bulk Packaging
- Customized outer carton and inner packaging specifications
- Private label branding
- Barcode and batch number management
- Palletized export packaging solutions
WHY CHOOSE US
Rivmate：Rivets Manufacturing Capability
Cold Heading Production Lines
Utilizing multi-station cold heading equipment for rivet body forming ensures dimensional accuracy and consistent head profiles. Through die control and process parameter management, we guarantee stability in mass production across diverse product styles and specifications.
Thread Rolling & Mandrel Processing
Equipped with mandrel thread rolling and finishing capabilities, enabling precise control over mandrel strength grades and fracture point positioning. This ensures stable and controllable tensile performance during installation.
Automated Assembly Systems
Automated rivet body and mandrel assembly equipment enhances assembly consistency while minimizing tolerance variations caused by manual intervention. This capability is ideal for high-volume order production.
In-House Tensile & Shear Testing
We have established internal mechanical property testing procedures to conduct tensile and shear tests on various material combinations. Ensures your products meet specified technical parameters and supports the issuance of test data.
Batch Traceability System
Implements batch number management and production record archiving systems, enabling traceability of raw material batches, production dates, and test results. Meets your requirements for quality traceability.
6.4 mm (1/4”) Blind Rivets Technical FAQs
Q1: What hole size for 1/4 rivets?
For 6.4 mm (1/4″) blind rivets, the recommended drill hole size is typically 6.5–6.6 mm. The exact size should be determined based on material thickness, tolerance requirements, and installation standards. An appropriate hole diameter helps achieve stable clamping force.
Q2: How strong are 6.4 mm rivets?
Due to their larger diameter, 6.4 mm rivets exhibit higher tensile and shear strength under identical material conditions. Their tensile and shear performance typically surpasses that of 4.8 mm rivets, making them suitable for medium-to-high load and structural-grade applications. Specific strength data should be referenced from actual test reports.
Q3: What is the difference between structural and standard blind rivets?
Structural blind rivets feature a mechanical locking core design that maintains a locked state even after the mandrel breaks, enhancing vibration resistance and tensile strength. Standard rivets are generally suitable for routine assembly, while structural rivets are better suited for high-vibration or critical load-bearing areas. In heavy-duty or safety-critical applications, structural rivets offer greater engineering suitability.
Q4: Can 6.4 mm rivets replace bolts?
In certain medium-load structural connections, 6.4 mm blind rivets can serve as an alternative to bolts, particularly in installations where dual-side access is unavailable. However, for applications requiring extremely high strength or removable connections, engineering evaluation based on design loads and safety factors remains essential.
Q5: Do you support OEM and bulk supply for open end blind pop rivets?
A: We support bulk supply and OEM customization, including specifications, material combinations, and packaging solutions, suitable for long-term project procurement and industrial-grade stable supply needs.
Partner with Rivmate for Rivet Supply
For 6.4 mm (1/4″) structural-grade blind rivets, we offer stable mass production capabilities and comprehensive engineering support. Leveraging our large-scale cold heading production lines and standardized quality control processes, Rivmate supports high-volume orders and long-term project supply requirements. We ensure consistency and traceability for your structural applications.
For OEM manufacturers and structural engineering clients, we support custom drawing specifications, strength grade matching, and specialized test data provision. We assist in engineering selection and product performance validation. Through stable delivery cycles and batch management systems, we help mitigate supply fluctuation risks and enhance project execution control.
Contact us today to obtain samples, verify assembly results, and prepare for future bulk procurement.
