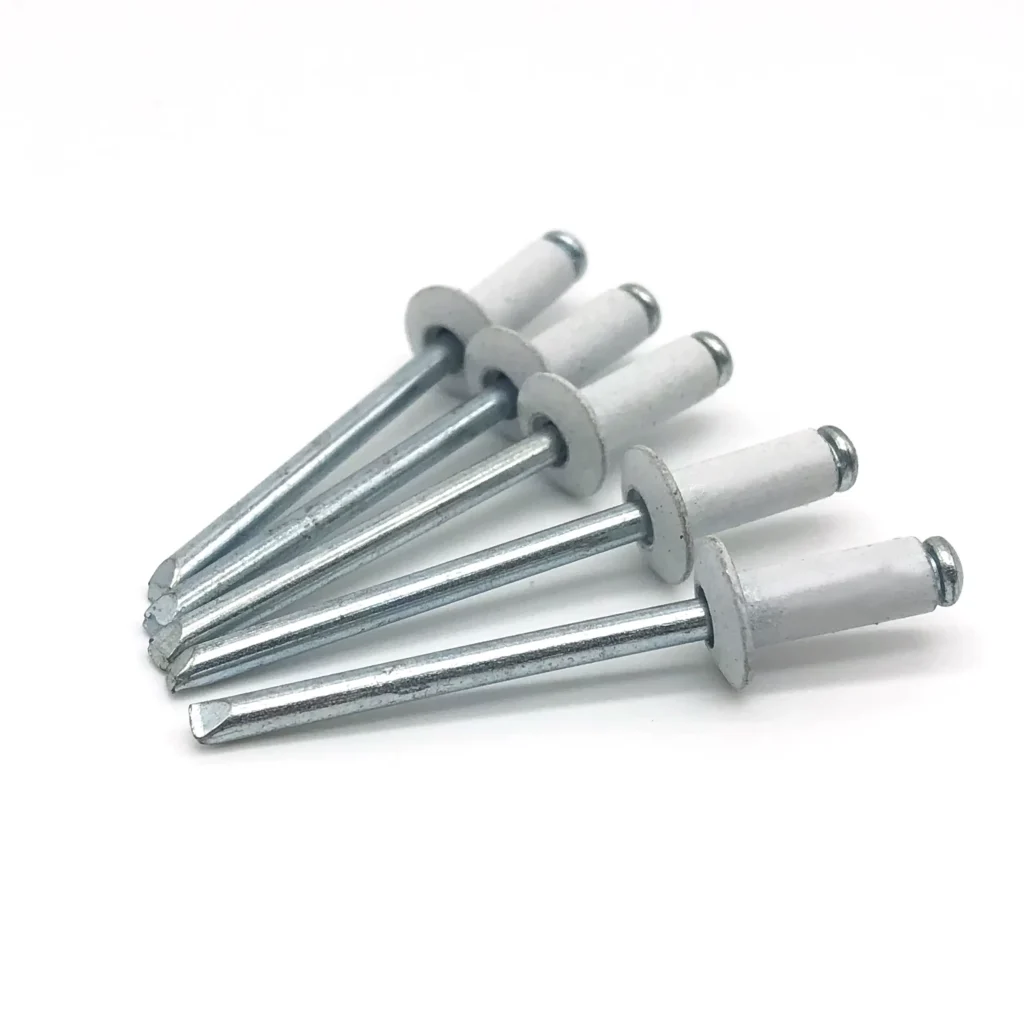

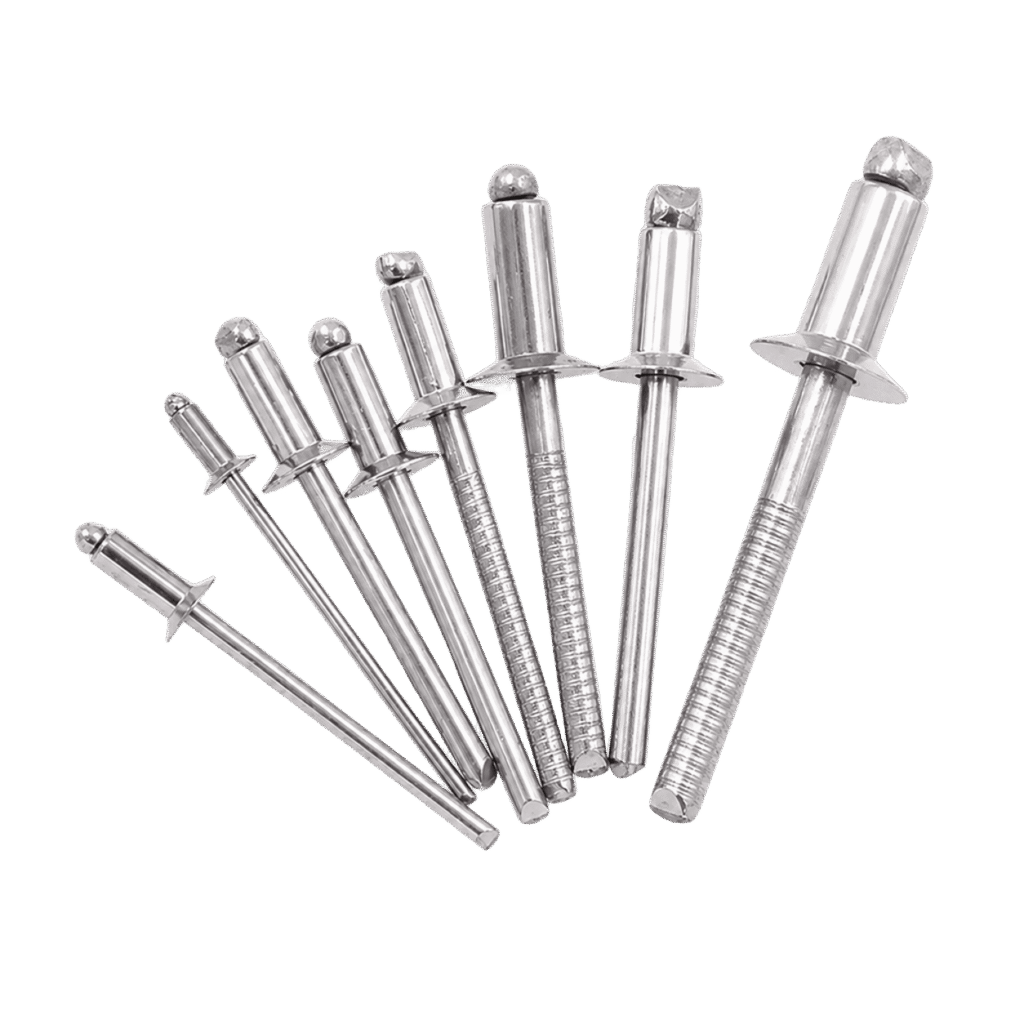

6 mm pop Rivets supplier
6 mm rivets have a larger body diameter than 5.2 mm rivets, offering greater body diameter and more stable connection support. They are better suited for thicker sheet metal and high-strength industrial assemblies. If you do not require 6.4 mm rivets for large-diameter holes or heavy-duty fastening, then 6 mm blind rivets are the ideal choice.
- Suitable for medium- to high-strength industrial fastenings
- Available in various styles, including open-end, single-leg, and quick-set rivets
- Traceable quality
- Supports high-volume supply
Why Choose Our 6 mm pop Rivets
- Single-sided quick installation is suitable for structural assemblies with limited rear space
- Thick-plate connections
- Applications requiring high structural stability
- Greater shear resistance and load-bearing capacity
Rivmate —— Your Professional Customized 6 mm pop Rivets suppliers
Rivmate is a professional supplier of 6 mm pop rivets, offering industrial customers reliable, customizable, and bulk-purchase-friendly supply solutions for 6 mm pop rivets. We support a variety of common configurations, including Open-end rivets, large-flange, countersunk, and Uni-grip blind rivets.
Different applications require different rivet configurations and material combinations. Rivmate provides more flexible and reliable 6 mm pop rivet supply solutions tailored to the needs of various customers.

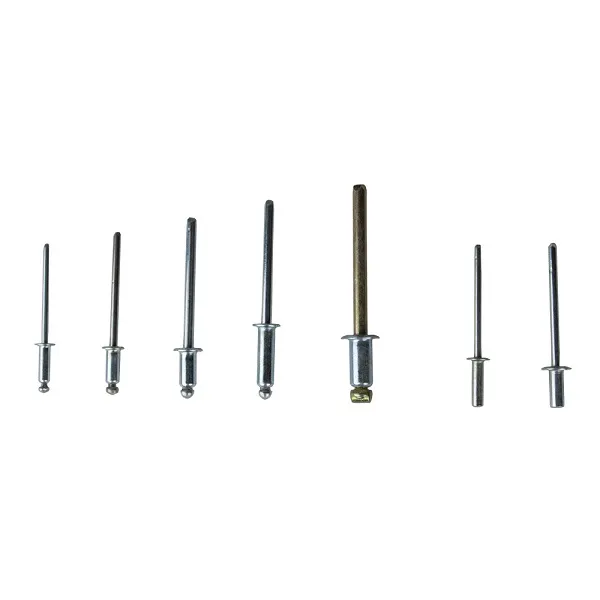

Rivamte 6 mm Pop Rivets Types
Rivmate offers a wide variety of 6 mm pop rivets and can recommend the appropriate rivet design and material based on the customer’s sheet metal thickness, hole diameter, riveting range, strength requirements, and operating environment.
6 mm Open Rivets
Open-end rivets have an open tail structure, and the rivet shank remains exposed after installation. With a simple design and relatively lower cost, they are suitable for fastening standard metal sheets.
6 mm Uni-grip Blind Rivets
After riveting, the blind side of Uni-grip Blind Rivets primarily forms a single bulge. They are suitable for joining thin metal sheets, standard metal sheets, and lightweight structural components.
6 mm Speed Rivets
The core advantage of Speed Rivet is their ability to improve continuous installation efficiency. They are suitable for use in batch assembly and assembly line operations.
Choose 6 mm Pop Rivets by Material
Rivmate offers a wide range of options, including aluminum, steel, stainless steel, and composite materials, to suit various sheet metals, equipment, and outdoor applications. Whether you need lightweight fastening, high-strength connections, or superior corrosion resistance, Rivmate can recommend the most suitable 6-millimeter pop rivets tailored to your needs.
Aluminum body/Aluminum mandrel 6mm Pop Rivets
Aluminum body/Aluminum mandrel 6mm Pop Rivets are lighter in weight and less prone to corrosion. They are better suited for aluminum sheets, lightweight structures, and weight-sensitive assembly applications.

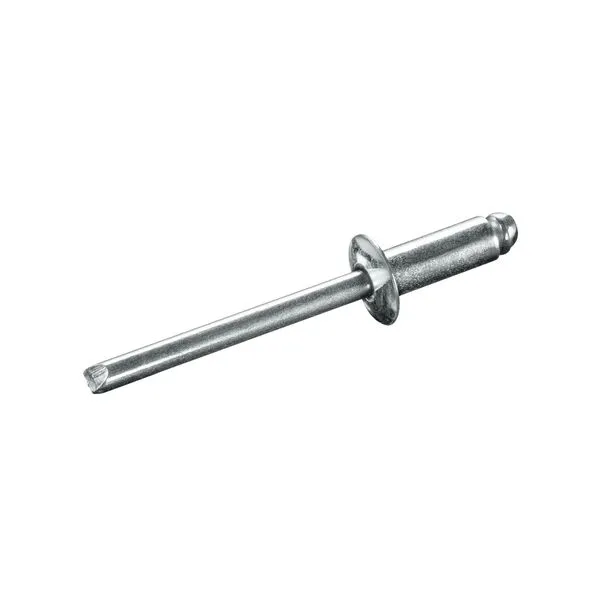

Aluminum body/Steel mandrel 6mm Pop Rivets
Aluminum rivets are lightweight and easy to install, while the carbon steel core provides strong riveting strength, making 6mm Pop Rivetssuitable for most standard industrial assembly applications.
Aluminum body / Stainless Steel mandrel 6mm Pop Rivets
Aluminum rivets retain their lightweight advantage, while stainless steel mandrels are suitable for applications requiring higher corrosion resistance and long-term stability.
Carbon Steel body/Carbon Steel mandrel 6mm Pop Rivets
All-carbon steel rivets typically offer higher strength than aluminum rivets. All-carbon steel rivets are suitable for industrial applications requiring higher joint strength.
Choose 6 mm Pop Rivets by head shape
Rivmate offers round-head, large-cap, countersunk, and custom head designs to meet a wide range of sheet metal fabrication and industrial assembly needs across various industries. Our team of experts can help you select the most suitable 6-millimeter pop rivets.
Dome Head 6 mm Pop Rivets
Standard round-head design, suitable for general assembly, with a clean appearance and a wide range of applications.

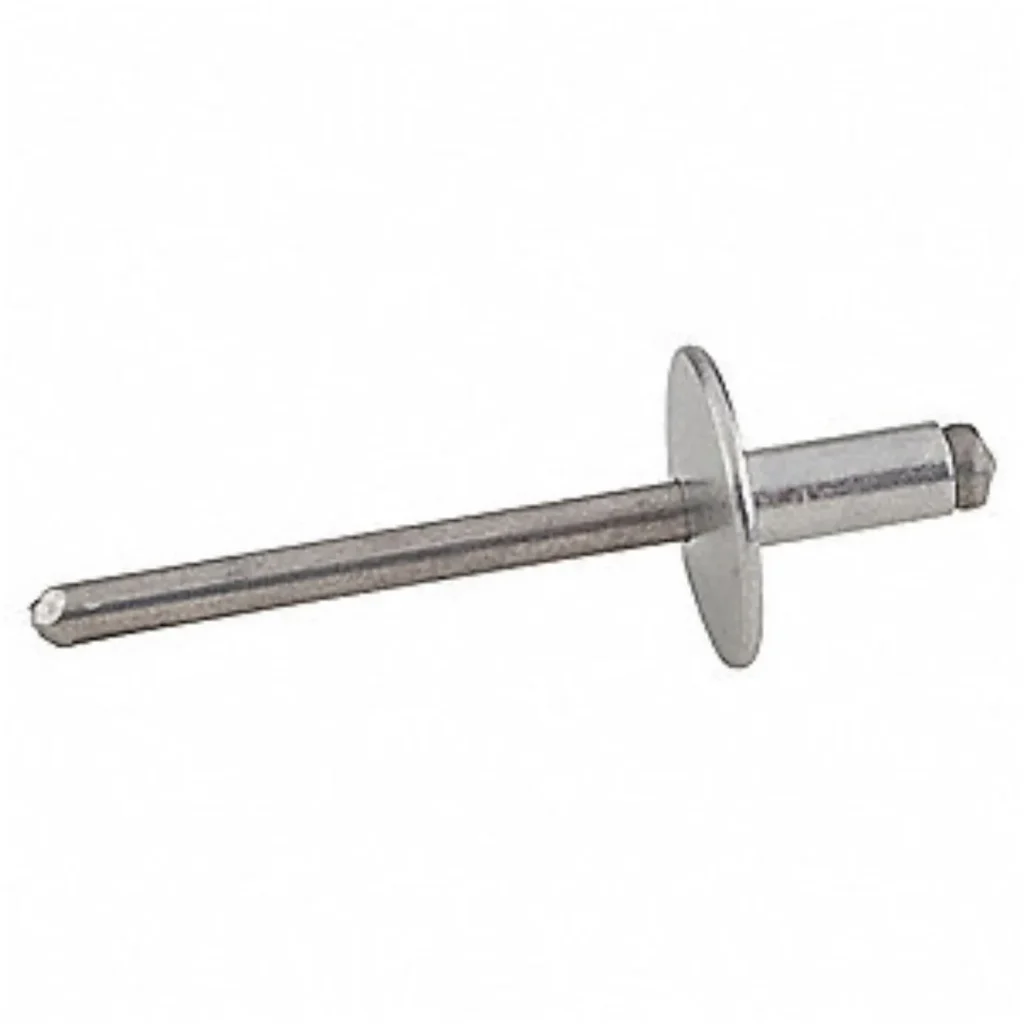

Large Flange 6 mm Pop Rivets
The wide-brim design provides a larger surface area, making it more effective at preventing tears in soft materials.
Countersunk Head 6 mm Pop Rivets
Countersunk design for a smoother surface finish after riveting, Suitable for metal joints requiring a smooth finish.
| Product Type | Material / Surface | Part No. / Art Code | Size | Body Length / L | Grip Range | Drill / Hole Dia | Head / Key Dimensions | Mandrel Dia. | Mandrel Reveal | Tensile Strength | Shear Strength |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60080 / 1ASC60080 | 6.0 × 8.0 | 8.0-9.0 | 1.5-3.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60100 / 1ASC60100 | 6.0 × 10.0 | 10.0-11.0 | 3.0-5.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60120 / 1ASC60120 | 6.0 × 12.0 | 12.0-13.0 | 5.0-7.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60140 / 1ASC60140 | 6.0 × 14.0 | 14.0-15.0 | 7.0-9.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60160 / 1ASC60160 | 6.0 × 16.0 | 16.0-17.0 | 7.0-11.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60180 / 1ASC60180 | 6.0 × 18.0 | 18.0-19.0 | 11.0-13.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60200 / 1ASC60200 | 6.0 × 20.0 | 20.0-21.0 | 11.0-15.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60250 / 1ASC60250 | 6.0 × 25.0 | 25.0-26.0 | 14.0-19.5 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60300 / 1ASC60300 | 6.0 × 30.0 | 30.0-31.0 | 19.5-24.5 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60350 / 1ASC60350 | 6.0 × 35.0 | 35.0-36.0 | 24.0-29.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Carbon Steel / Zinc Plated |
1AS60400 / 1ASC60400 | 6.0 × 40.0 | 40.0-41.0 | 29.0-34.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 2500N | 2000N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Aluminum / Natural Polish |
AA60080 / AAC60080 | 6.0 × 8.0 | 8.0-9.0 | 1.5-3.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 1900N | 1200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Aluminum / Natural Polish |
AA60100 / AAC60100 | 6.0 × 10.0 | 10.0-11.0 | 3.0-5.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 1900N | 1200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Aluminum / Natural Polish |
AA60120 / AAC60120 | 6.0 × 12.0 | 12.0-13.0 | 5.0-7.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 1900N | 1200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Aluminum / Natural Polish |
AA60140 / AAC60140 | 6.0 × 14.0 | 14.0-15.0 | 7.0-9.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 1900N | 1200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Aluminum / Natural Polish |
AA60160 / AAC60160 | 6.0 × 16.0 | 16.0-17.0 | 7.0-11.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 1900N | 1200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Stainless Steel / Natural Polish |
AB60080 / ABC60080 | 6.0 × 8.0 | 8.0-9.0 | 1.5-3.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 4200N | 3200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Stainless Steel / Natural Polish |
AB60100 / ABC60100 | 6.0 × 10.0 | 10.0-11.0 | 3.0-5.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 4200N | 3200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Stainless Steel / Natural Polish |
AB60120 / ABC60120 | 6.0 × 12.0 | 12.0-13.0 | 5.0-7.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 4200N | 3200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Stainless Steel / Natural Polish |
AB60140 / ABC60140 | 6.0 × 14.0 | 14.0-15.0 | 7.0-9.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 4200N | 3200N |
| Open Type Blind Rivet | Body: Aluminum / Natural Polish Mandrel: Stainless Steel / Natural Polish |
AB60160 / ABC60160 | 6.0 × 16.0 | 16.0-17.0 | 7.0-11.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: 11.3 × 2.1 Large Head: / |
3.7 | 31.0 | 4200N | 3200N |
| Open Type Blind Rivet | Body: Carbon Steel / Zinc Plated Mandrel: Carbon Steel / Zinc Plated |
SS60080 | 6.0 × 8.0 | 8.0-9.0 | 1.5-3.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: / Large Head: / |
4.0 | 31.0 | 5000N | 4000N |
| Open Type Blind Rivet | Body: Carbon Steel / Zinc Plated Mandrel: Carbon Steel / Zinc Plated |
SS60100 | 6.0 × 10.0 | 10.0-11.0 | 2.5-4.5 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: / Large Head: / |
4.0 | 31.0 | 5000N | 4000N |
| Open Type Blind Rivet | Body: Carbon Steel / Zinc Plated Mandrel: Carbon Steel / Zinc Plated |
SS60120 | 6.0 × 12.0 | 12.0-13.0 | 4.5-6.5 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: / Large Head: / |
4.0 | 31.0 | 5000N | 4000N |
| Open Type Blind Rivet | Body: Carbon Steel / Zinc Plated Mandrel: Carbon Steel / Zinc Plated |
SS60150 | 6.0 × 15.0 | 15.0-16.0 | 7.5-9.5 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: / Large Head: / |
4.0 | 31.0 | 5000N | 4000N |

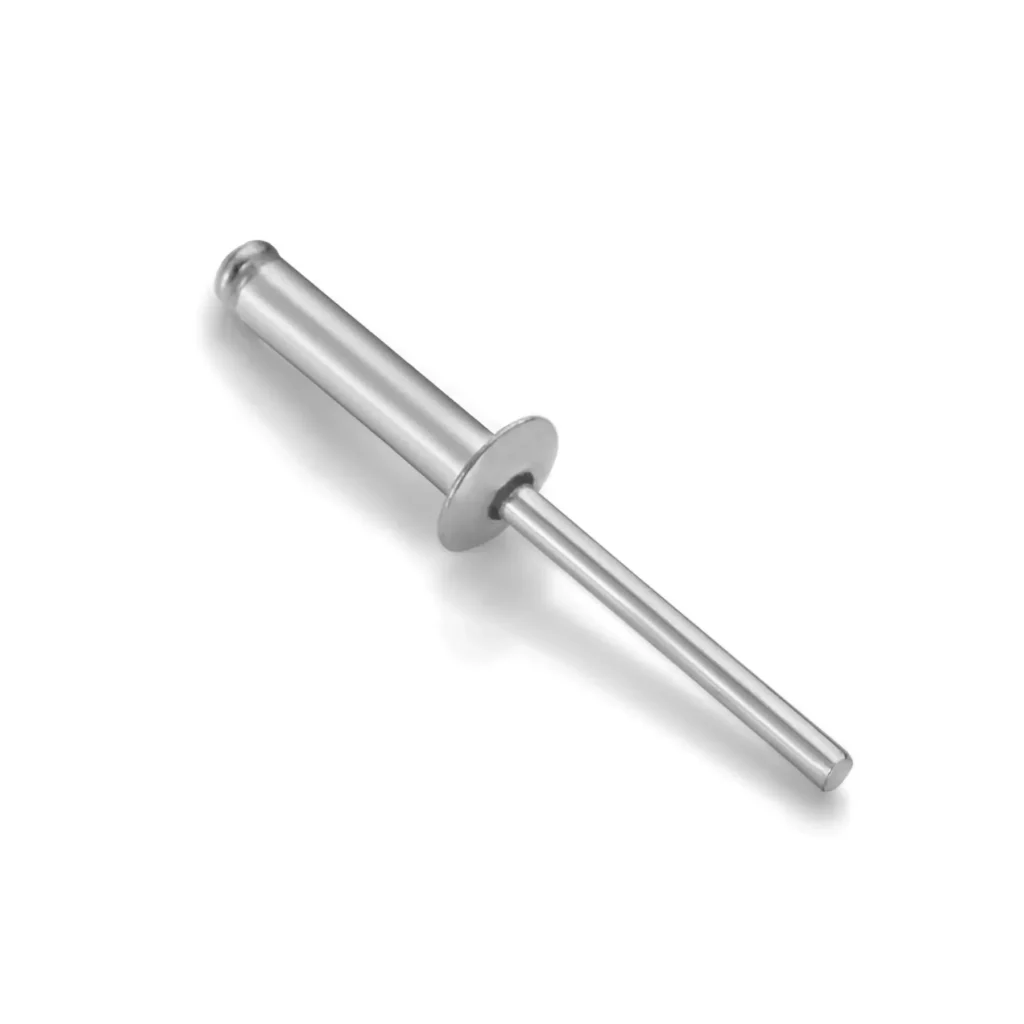

| Open Type Blind Rivet | Body: 304 Stainless Steel / Natural Polish Mandrel: 304 Stainless Steel / Natural Polish |
BB-S60080 | 6.0 × 8.0 | 8.0-9.0 | 1.5-3.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: / Large Head: / |
4.0 | 31.0 | 7500N | 5700N |
| Open Type Blind Rivet | Body: 304 Stainless Steel / Natural Polish Mandrel: 304 Stainless Steel / Natural Polish |
BB-S60100 | 6.0 × 10.0 | 10.0-11.0 | 2.0-4.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: / Large Head: / |
4.0 | 31.0 | 7500N | 5700N |
| Open Type Blind Rivet | Body: 304 Stainless Steel / Natural Polish Mandrel: 304 Stainless Steel / Natural Polish |
BB-S60120 | 6.0 × 12.0 | 12.0-13.0 | 4.0-6.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: / Large Head: / |
4.0 | 31.0 | 7500N | 5700N |
| Open Type Blind Rivet | Body: 304 Stainless Steel / Natural Polish Mandrel: 304 Stainless Steel / Natural Polish |
BB-S60150 | 6.0 × 15.0 | 15.0-16.0 | 6.0-9.0 | 6.1-6.2 | Dome: 12.6 × 2.5 CSK: / Large Head: / |
4.0 | 31.0 | 7500N | 5700N |
| Uni-grip Blind Rivet | Body: Carbon Steel / Zinc Plated Mandrel: Carbon Steel / Zinc Plated |
SSPMG60100 Art: SSPMG-6010 |
6.0 × 10.0 | 10.0 | 1.5-4.0 | 6.1-6.2 | dk: 11.0-12.3 k max: 2.15 |
4.1 | 31.0 | 5400N | 4200N |
| Uni-grip Blind Rivet | Body: Carbon Steel / Zinc Plated Mandrel: Carbon Steel / Zinc Plated |
SSPMG60130 Art: SSPMG-6013 |
6.0 × 13.0 | 13.0 | 3.0-6.0 | 6.1-6.2 | dk: 11.0-12.3 k max: 2.15 |
4.1 | 31.0 | 5400N | 4200N |
| Uni-grip Blind Rivet | Body: 304 Stainless Steel / Natural Polish Mandrel: 304 Stainless Steel / Natural Polish |
BBPMG60100 Art: BBPMG-6010 |
6.0 × 10.0 | 10.0 | 1.5-4.0 | 6.1-6.2 | dk: 11.0-12.6 k max: 2.2 |
4.2 | 31.0 | 6200N | 7800N |
| Uni-grip Blind Rivet | Body: 304 Stainless Steel / Natural Polish Mandrel: 304 Stainless Steel / Natural Polish |
BBPMG60130 Art: BBPMG-6013 |
6.0 × 13.0 | 13.0 | 3.0-6.0 | 6.1-6.2 | dk: 11.0-12.6 k max: 2.2 |
4.2 | 31.0 | 6200N | 7800N |
| Aluminum Speed Rivet (BRV Series) | Material: Aluminum Surface: Natural Polish |
ASDR-BRV60069 Art: ASDR-1801-06007 |
6.0 | 6.93 | 2.66-3.94 | 5.94-6.02 | dk max: 11.55 k max: 1.35 D max: 5.93 Fasteners/pod: 37 |
/ | / | 3200N | 1600N |
| Aluminum Speed Rivet (BRV Series) | Material: Aluminum Surface: Natural Polish |
ASDR-BRV60079 Art: ASDR-1801-06009 |
6.0 | 7.94 | 3.68-4.95 | 5.94-6.02 | dk max: 11.55 k max: 1.35 D max: 5.93 Fasteners/pod: 33 |
/ | / | 3200N | 1600N |
| Carbon Steel Speed Rivet (BRV Series) | Material: Carbon Steel Surface: Zinc Plated |
SSDR-BRV60069 Art: SSDR-1821-06007 |
6.0 | 6.93 | 2.66-3.94 | 5.94-6.02 | dk max: 11.55 k max: 1.35 D max: 5.93 Fasteners/pod: 37 |
/ | / | 4220N | 2580N |
| Carbon Steel Speed Rivet (BRV Series) | Material: Carbon Steel Surface: Zinc Plated |
SSDR-BRV60079 Art: SSDR-1821-06009 |
6.0 | 7.94 | 3.68-4.95 | 5.94-6.02 | dk max: 11.55 k max: 1.35 D max: 5.93 Fasteners/pod: 33 |
/ | / | 4220N | 2580N |

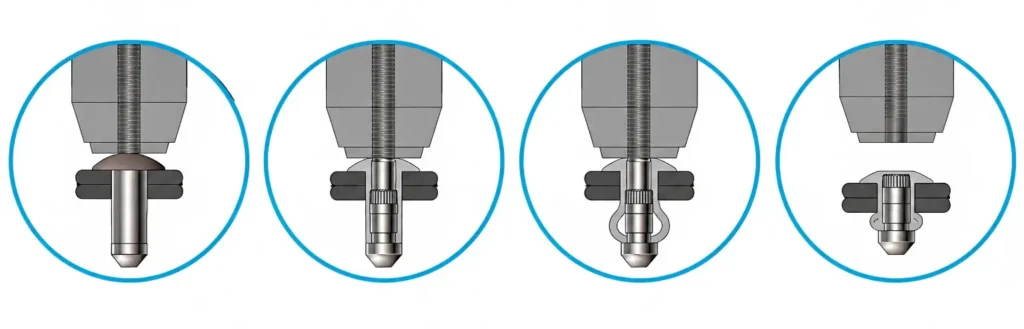

Steps of Blind Rivet Installation
- Insert the rivet into the pre-drilled hole, ensuring that the rivet head sits flush against the workpiece.
- Place the rivet gun’s nozzle over the rivet mandrel and hold the tool vertically.
- Activate the rivet gun and pull the rivet mandrel to expand the rivet body and secure the workpiece.
- Once the rivet mandrel breaks off, the riveting is complete. Check that the rivet is secure and flush.
bulk 6mm pop rivet packaging solutions tailored for retail sales
Rivmate offers a variety of standardized and customized packaging and rivet color solutions for 6 mm pop rivets to meet the needs of its diverse customer base. These solutions effectively enhance the stability of the rivets during transportation and storage, while also helping customers quickly identify specifications, materials, colors, quantities, and applicable scenarios.
- Supports custom rivet colors
- Designed for use on production lines
- Multiple packaging options
- Clear product identification specifications reduce the risk of selection errors
- Suitable for bulk purchases and long-term repeat orders
Rivmate supports bulk industrial packaging, small bag packaging, small box packaging, protective inner packaging, OEM custom packaging, pallet packaging, and export-standard packaging. For color customization of 6 mm pop rivets, Rivmate can match colors based on customer-provided RAL codes, Pantone codes, color samples, or brand primary colors.This helps customers reduce the risks of mix-ups, damage, misuse, and warehouse management issues.
6mm pop rivets with certified material traceability
Rivmate has consistently manufactured 6 mm pop rivets in accordance with the requirements of the IATF 16949 and ISO quality management systems. We have established a batch traceability system covering raw materials, production processes, internal testing, and shipping packaging. Our products have passed RoHS testing for hazardous substances. We provide Level 3 PPAP reports.
- IATF 16949 and ISO Quality Certification
- Archived Batch Records for Traceability
- Suitable for Long-Term Repeat Purchases
Our technical team conducts random inspections of product dimensions, appearance, riveting performance, and mechanical properties to ensure consistent product quality. A corresponding batch record is created for each batch of rivets, providing customers with clear quality documentation for supplier audits and long-term repeat purchases.
Applications of 6 mm Pop Rivets
6-millimeter hollow-core rivets are primarily used in industrial applications that require greater clamping force than 5.0-millimeter or 5.2-millimeter rivets, but do not require the large bore diameter and heavy-duty load-bearing capacity of 6.4-millimeter rivets. You can select the rivets that best suit your product specifications based on the classifications below.

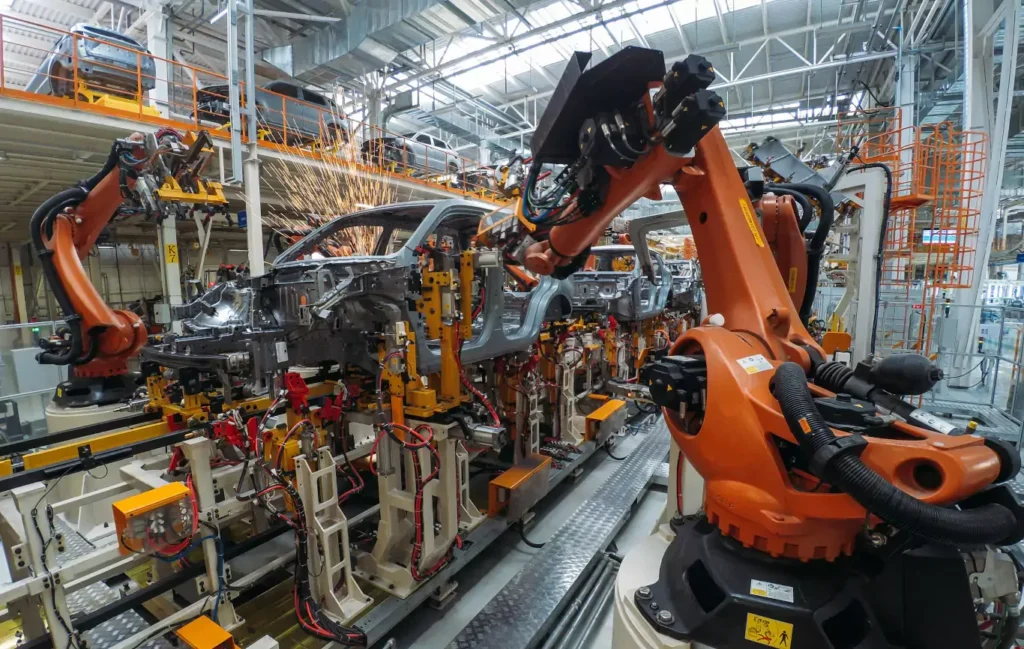

Medium-to-Large Industrial Equipment Enclosures
6 mm pop rivets are better suited than 5.2 mm rivets for larger equipment enclosures and medium-to-thick panels, making them ideal for metric equipment designs. 6 mm pop rivets are suitable for industrial equipment enclosures, machine housings, equipment side panels, access doors, and reinforcement panels.
6 mm pop rivets eliminate the need for the larger hole diameters required by 6.4 mm rivets. 6 mm pop rivets can be used for HVAC equipment enclosures, fan housings, air conditioning unit panels, ventilation equipment reinforcement panels, and maintenance door panels.
5.2 mm pop rivets are better suited for small cabinets, standard door panels, or lightweight enclosure panels. However, 6 mm pop rivets are better suited for medium- to large-sized cabinets, thicker panels, reinforcement panels, side panels, mounting plates, and permanent fastening applications.

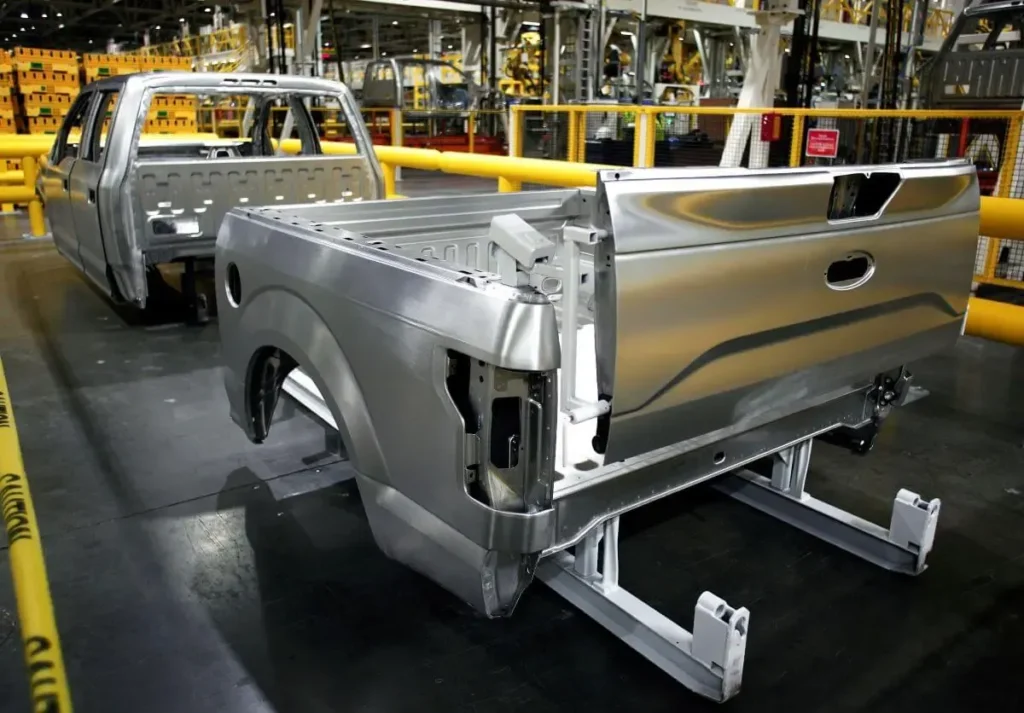

6 mm pop rivets are more suitable than 5.2 mm rivets for thicker body panels and multi-layer panel joints. 6 mm pop rivets are commonly used for vehicle exterior panels, trailer side panels, cargo compartment panels, access panels, and multi-layer body panel joints.
Light- to Medium-Duty Brackets and Auxiliary Reinforcements
6 mm pop rivets are more suitable than 5.2 mm rivets for auxiliary fasteners subjected to moderate loads; they are not classified as heavy-duty structural rivets. 6 mm pop rivets can be used for light- to medium-duty brackets, mounting bases, connecting plates, reinforcement plates, and auxiliary support components.
Mechanical Guards and Safety Shields
Compared to 5.2 mm, 6 mm pop rivets are better suited for protective components that are larger in area, thicker, and subject to more pronounced vibration. They are suitable for non-load-bearing structures that require long-term, stable fastening. 6 mm pop rivets are suitable for use in mechanical guards, equipment safety shields, metal partitions, protective housings, and external covers.
Get An Instant Quote Now
1.What are the shear and tensile strength ratings for common 6mm pop rivets?
The shear strength and tensile strength of standard 6 mm pop rivets vary depending on the rivet material, design, length, riveting range, and test conditions.
Standard Open Rivets, all-carbon steel 6 mm pop rivets have a tensile strength of approximately 5,000 N and a shear strength of approximately 4,000 N. Standard Open Rivets, all-stainless-steel 6 mm pop rivets have a tensile strength of approximately 7,500 N and a shear strength of approximately 5,700 N.
2.What types of finishes are available for 6mm pop rivets?
6mm pop rivets are available in galvanized, natural polished, passivated, spray-coated, color-coated, and custom RAL colors, as well as special corrosion-resistant coatings evaluated based on project requirements.
3.Which 6mm pop rivet types are best for plastic and metal bonding?
When joining plastic to metal, prioritize using 6 mm pop rivets with a wide flange. This increases the load-bearing surface area and reduces localized stress.
If the plastic material is thin or soft, it is better to choose all-aluminum or aluminum-steel rivets to reduce installation resistance.
If the corresponding holes in the plastic are large or the back surface has low load-bearing capacity, we recommend using peel-type blind rivets. For outdoor applications, choose closed-end rivets to prevent corrosion.
4.What suppliers offer 6mm pop rivets with anodized finishes for corrosion resistance?
Suppliers of 6 mm pop rivets with anodized surface finishes. Fastener manufacturers or industrial fastener suppliers capable of producing aluminum pop rivets and supporting customized surface treatments.
Preference will be given to suppliers who can provide material certification, color samples, surface treatment specifications, salt spray test results, or batch traceability documentation. This helps ensure the product’s corrosion resistance and consistent appearance.
Rivmate can evaluate anodizing, color coating, spray painting, or other surface treatment options based on project requirements.
5.Can 6mm sealed pop rivets create a watertight seal?
Due to their closed-end design, 6 mm sealed pop rivets provide a better waterproof seal than standard open-end rivets.
The actual sealing performance also depends on hole diameter accuracy, the fit between the sheet metal panels, the riveting area, the rivet material, installation quality, and joint design. If customers require a higher level of waterproofing, 6 mm sealed pop rivets should be used in conjunction with sealing gaskets, sealants, surface coatings, or appropriate structural design.
Resource Center
Access helpful materials to support your project planning and product selection. Download documents for reference and on-site use.
Rivet Catalog
Browse our full blind rivet catalog including product types, specifications, and application examples.I am Trailer Box Description Text. You can change me anytime from settings.
6 mm Pop RivetsDrawing
Download the technical drawings for the rivets, which include dimensions, internal structure, and basic product information
Comparison of 6mm pop rivets to other fastening methods
6mm pop rivets are not suitable for all fastening applications. In areas where frequent disassembly is required, screws or bolts are a better choice; in high-load, safety-critical structures, or environments with severe vibration, structural pop rivets, lock rivets, or other high-strength fastening solutions should be considered.
| Fastening Method | Advantages of 6mm Pop Rivets | Advantages of Other Fastening Methods | More Suitable Applications | Key Considerations |
|---|---|---|---|---|
| Screws | Faster single-side installation, suitable for permanent fastening, and no threaded holes or nuts required. | Removable and easier for later maintenance. | Equipment panels, sheet metal housings, electrical cabinets, and HVAC housings. | If frequent disassembly is required, screws may be more suitable. |
| Bolts and Nuts | No double-side operation required, faster assembly, and fewer components needed. | Stronger clamping force, removable structure, and suitable for heavy-load connections. | Medium-thickness panels, equipment housings, and non-load-bearing metal joints. | Bolts and nuts are more suitable for high-load or removable structures. |
| Welding | No high-temperature deformation, less risk of damaging plated or coated surfaces, and less post-processing required. | High overall metal joint strength, suitable for permanent structural components. | Pre-painted sheets, galvanized sheets, thin panels, and appearance panels. | Welding is more suitable for high-strength integral structural connections. |
| Adhesive Bonding | Forms a mechanical connection immediately after installation, with no curing time required. | Smoother surface, stress distribution, and no exposed fasteners. | Industrial panels, equipment housings, and maintenance assemblies. | Bonding performance depends on surface preparation, temperature, and curing time. |
| Self-Tapping Screws | More stable connection, less risk of pull-out failure in thin sheets, and suitable for permanent assembly. | Simple installation and suitable for light-duty temporary fastening. | Thin-sheet connection upgrades, medium-thickness sheet metal, and equipment panels. | Self-tapping screws may loosen or strip under vibration. |
| Spot Welding | No welding equipment required, suitable for different materials or pre-treated surface connections. | Suitable for high-volume automated welding of metal sheets. | HVAC panels, electrical cabinets, equipment housings, and repair or replacement work. | Spot welding requires weldable materials and may affect surface coatings. |
| Lockbolt Rivets | Lower cost and lower installation requirements, suitable for general industrial panel connections. | Higher strength, better vibration resistance, and suitable for structural connections. | General industrial panels, medium-thickness panels, and equipment housings. | For high-load, strong-vibration, or safety-critical structures, lockbolt rivets should be evaluated first. |
| Structural Blind Rivets | Suitable for general medium-to-high-strength sheet metal connections, with more flexible purchasing and assembly. | Higher load capacity, better mandrel stability, and stronger vibration resistance. | Non-safety structural components, general equipment panels, and industrial sheet metal. | For high-strength structural connections, structural blind rivets should be selected. |
How to choose the right 6mm pop rivet for metal projects
When selecting 6 mm pop rivets for metal projects, proper selection requires confirming the sheet metal thickness, hole diameter, riveting range, material, head type, surface treatment, and actual load conditions. Choosing the appropriate 6 mm pop rivets can enhance connection stability and reduce the risk of loosening, pull-through, and insufficient strength during mass assembly.
1. Confirm the total sheet thickness
The rivet’s grip range must cover the total thickness of all metal sheets being joined.
2. Match the correct grip range
The grip range is the range of material thicknesses that the rivet can grip. If the grip range is too small or too large, it will result in unstable rivet formation.
3. Confirm the installation hole diameter
4. Select the rivet material based on the metal material
For general industrial sheet metal, choose aluminum-steel or all-carbon steel 6 mm pop rivets; if higher strength is required, select all-carbon steel or structural rivets; for outdoor, humid, or corrosive environments, use all-stainless steel or rivets with enhanced corrosion-resistant surface treatments.
5. Select the Rivet Design Based on Load Conditions
For standard metal panel connections, open-end 6 mm pop rivets are sufficient. For applications requiring better sealing, choose closed-end rivets. For thin sheets, large holes, or soft metals, select a large-flange design.
For high-vibration or high-load locations, consider structural pop rivets or lock rivet solutions.
6. Select the Head Type Based on Aesthetics and Assembly Requirements
Round heads protrude from the workpiece surface and are suitable for most general-purpose metal connections. A large flange is suitable for panels requiring a larger bearing surface area. Countersunk heads are suitable for metal projects requiring a flat surface or minimal protrusion.
7. Select a surface finish based on the operating environment
For general indoor metal fastening, galvanized or standard surface finishes may be selected. For outdoor, humid, coastal, or corrosive environments, consider stainless steel, passivation, anti-corrosion coatings, or salt spray test requirements. If the rivets are exposed on equipment panels, you can also choose custom RAL/Pantone colors to better match the rivet color to the panel surface.
8. Verify Compatibility of Installation Tools
6 mm pop rivets made of all-steel or all-stainless steel require higher installation force. Verify that the rivet gun, pneumatic tool, or automated equipment has sufficient force and is equipped with the correct nozzle specification.
Services that provide custom 6mm pop rivet solutions
Rivmate supports customization of material, length, head type, construction, surface finish, rivet color, and packaging, and is suitable for OEM assembly, industrial projects, and distribution, wholesale, and retail sales channels.
| Customization Service | Support Rivmate Can Provide | Customer Value |
|---|---|---|
| Specification Selection Support | Recommend suitable rivet length based on sheet thickness, hole diameter, and grip range. | Reduces the risk of incorrect specification selection and unstable riveting. |
| Material Customization | All aluminum, aluminum / steel, all carbon steel, all stainless steel, and other material combinations. | Matches strength, corrosion resistance, weight, and cost requirements. |
| Head Type & Structure Customization | Dome head, large flange head, countersunk head, open-end type, and closed-end type. | Adapts to different panel structures, hole sizes, and appearance requirements. |
| Surface Treatment Customization | Zinc plating, passivation, painting, color coating, and anti-corrosion treatment. | Meets outdoor, anti-rust, and consistent appearance requirements. |
| Rivet Color Customization | RAL, Pantone, sample color, and brand color matching. | Suitable for visible parts, branded products, and retail sales. |
| Packaging Customization | Bulk packing, small bags, small boxes, OEM labels, pallets, and export packaging. | Suitable for distributors, retail, e-commerce, and industrial bulk purchasing. |
| Testing & Document Support | Tensile testing, shear testing, salt spray testing, dimensional inspection, and material certificates. | Improves trust for OEM projects and long-term repeat orders. |
| Bulk Supply Support | Standardized production, batch management, and export delivery. | Ensures stable bulk purchasing, batch consistency, and quality traceability. |
If you are looking for 6 mm pop rivets, please send us your drawings, samples, application details, or packaging requirements. Rivmate can recommend customized 6 mm pop rivet solutions best suited for mass production in your project.
