Black Blind Rivets
Engineered for Solar, Facade & Roofing Applications with Consistent Color Matching
Black blind rivets (RAL 9005) are widely used in solar panel systems, metal roofing, and architectural facades where both structural strength and color consistency are critical.
Available in multiple coating methods to meet different environmental requirements.
Application
Black Blind Rivets by Application: Solar, Roofing, Facade
Selecting the right black blind rivets is not only about color, but also about matching the correct application requirements.
Different industries—such as solar, roofing, and facade systems—demand specific performance in terms of corrosion resistance, durability, and visual consistency.
Black Blind Rivets for Solar Panel Systems
In solar tracking mount systems, you should directly select these four types of structural blind rivets—Mono-Lock, Boom-Lock, Now-Lock, and Poptail—to cover all core connection scenarios.
Black Blind Rivets for Metal Roofing
Used for securing metal roofing, requiring both waterproofing and vibration resistance. Sealed rivets with a weather-resistant coating are recommended to reduce maintenance and enhance visual consistency.
Black Blind Rivets for Facade Panels
Suitable for building facades, where color consistency is of the utmost importance. Powder coating (RAL 9005) is recommended to ensure batch consistency and UV resistance.
RAL
RAL Color System Section
RAL is a globally recognized industrial color standard system designed to ensure color consistency and reproducibility across different materials and products.
RAL 9005 (Jet Black) is the default standard color for black blind rivets and is widely used in:
- Solar rail systems
- Building facades (Facade Panels)
- Metal roofing systems (Roofing Systems)
Its key advantage lies in its ability to achieve a high degree of color matching with anodized aluminum and black-coated panels, effectively minimizing visual color discrepancies and enhancing the overall aesthetic consistency. As a result, it is particularly suitable for mid-to-high-end projects with stringent aesthetic requirements.
RAL Color System Section
RAL is a globally recognized industrial color standard system designed to ensure color consistency and reproducibility across different materials and products.
RAL 7016 (Anthracite Grey):
Commonly used for building facades and industrial structures
RAL 9016 (Traffic White):
Suitable for white aluminum panels and cleanroom environments
Why Color Matching Matters
Different coating processes (such as anodizing and powder coating) may result in subtle variations in color appearance. Additionally, batch consistency is a key indicator for color control. We recommend confirming color matching samples early in the project to ensure the final result meets expectations.
Architectural and photovoltaic projects typically require ΔE color difference to be controlled within a reasonable range to ensure overall visual consistency.
Why Color Matching Matters
Using RAL color matching effectively prevents fasteners in their natural metal finish from disrupting the overall design aesthetic, while reducing the risk of project rework and customer complaints, and further enhancing the professional image of the product and brand.
Specifications
Black Blind Rivet Coating Options
Anodized, Powder Coated, Zinc Plated & Painted
Rivet coating is used to enhance corrosion resistance, ensure color consistency, and extend the service life of the fastener.
| Coating Method | Key Feature | Best For |
|---|---|---|
| Black Anodized | High corrosion resistance, durable finish | Solar / Outdoor |
| Powder Coated | Consistent color, uniform surface | Facade / Architectural |
| Black Zinc Plated | Low cost, basic corrosion protection | General / Indoor |
| Painted Coating | Flexible color options, suitable for decoration | Light-duty / Decorative |
How to Choose the Right Rivet Coating?
- Outdoor / Solar → Choose Anodized (Recommended: ≥480h salt spray)
- Facade / Appearance → Choose Powder Coated (RAL color match)
- Cost-sensitive → Choose Zinc Plated
The coating directly affects the rivet’s weather resistance and overall service life. For outdoor applications, coatings typically need to pass a salt spray test of approximately 240–720 hours to ensure long-term corrosion resistance. Additionally, different coating processes can affect color stability and consistency.
Rivet Products
Black Blind Rivet Product Range
To meet the structural and aesthetic requirements of various applications (such as solar, facade, and roofing), black blind rivets must be precisely matched in terms of material, specifications, coating, and application suitability.

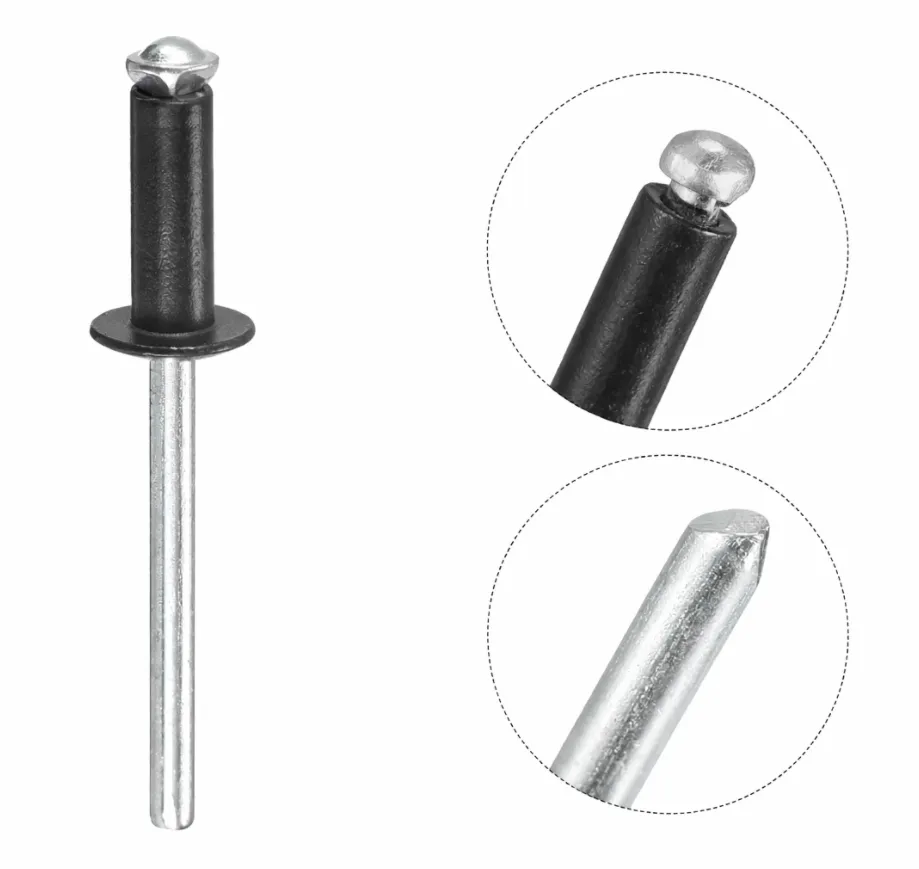

Black Open-End Blind Rivet
- Material：Aluminum / Steel
- Size：3.2 – 4.8 mm
- Coating：Powder Coated / Zinc Plated
- Application：Facade / General / Aluminum Panels
Suitable for standard fastening applications, offering high installation efficiency and excellent value for money. Widely used in architectural and industrial structures.
Black Multi-Grip Blind Rivet
- Material: Aluminum / Steel
- Size: Wide Grip Range
- Coating: Anodized / Powder Coated
- Application: Solar / Structural / Outdoor
Suitable for joining materials of varying thicknesses, reducing the number of required specifications and increasing installation flexibility; commonly used in photovoltaic systems.
Black Peel Blind Rivet
- Material: Aluminum
- Size: 3.2 – 4.8 mm
- Coating: Painted / Powder Coated
- Application: Facade / Plastic / Composite Materials
The patterned structure forms multiple claws on the back, effectively distributing the load. It is suitable for connecting soft materials or thin sheets to prevent tearing.
Ready to Source High-Performance Composite Blind Rivets for Your Project?
Just tell us your composite panel materials, thickness, and load requirements. Our engineering team will recommend the most suitable Composite Blind Rivet solution and provide factory pricing tailored to your application.
Rivet Products
Black Blind Rivets vs Standard Rivets
Aesthetic Integration
Standard rivets (silver) create a stark visual contrast against dark surfaces (such as black aluminum panels or RAL 9005-coated panels), which can detract from the overall design aesthetic.
Black rivets (such as RAL 9005) blend seamlessly with the substrate, creating an “invisible connection”—a feature that is particularly critical in architectural curtain walls and high-end projects.
Application-Specific Performance
Standard rivets are typically designed for general-purpose use, primarily meeting basic fastening requirements, but they have limitations in terms of corrosion resistance, weather resistance, and adaptability to special operating conditions. Black rivets typically utilize surface treatment processes such as anodizing or powder coating, which not only provide color matching but also significantly enhance:
- Corrosion resistance (up to 240–720 hours in salt spray testing)
- UV resistance and weatherability (suitable for long-term outdoor environments)
- Coating stability (reducing fading and color variation issues)
In photovoltaic and roofing systems, these performance characteristics directly relate to reliability requirements for a service life of over 20 years.
GET TO KNOW US
Rivmate: Manufacturing Capability
IATF 16949 Quality Management System: Automotive-grade quality control · Process traceability · Standardized production
Precision Cold Heading Technology: High-accuracy forming · Stable rivet geometry · Consistent mechanical properties
Comprehensive Rivet Testing: Shear strength test · Tensile test · Mandrel break load verification
Industrial Supply Stability: Reliable raw materials · Stable lead times · Consistent batch quality
Have any questions? Feel Free to Give Us A Call!
+86 189 6230 4392
OEM
Custom Rivet Solutions
Custom
Flange Diameter
You can request a larger or special flange size to better distribute load on composite panels.
02
Special
Surface Coatings
You can choose coatings for corrosion resistance, durability, or specific environmental conditions.
03
OEM &
Private Label Packaging
You can customize packaging with your brand, labels, and carton specifications for your market.
Frequently Asked Question
Black Blind Rivets FAQs
Q1:What are black aluminum blind rivets used for?
Black aluminum blind rivets are commonly used in aluminum structures, curtain wall systems, and lightweight fastening applications. Their advantages include light weight and corrosion resistance, while the black coating ensures a consistent appearance, making them particularly suitable for architectural and electronic equipment enclosures.
Q2: Black Screws vs. Blind Rivets: Which Is Better?
When comparing black screws and blind rivets, rivets are better suited for permanent connections, offering superior vibration resistance and requiring no maintenance; screws, while easier to remove, may loosen in environments with prolonged vibration. Therefore, in applications such as roofing and solar panels, rivets are typically the preferred choice.
Q3: What are black blind pop rivets?
Black blind pop rivets are pop rivets with a black coating that can be installed with a single-sided operation. They are suitable for structural connections where access from the back is not possible, meeting both aesthetic and performance requirements.
Q4: Where can I find blind rivets near me?
Searching for blind rivets near me is generally suitable for small-batch purchases, but for project or bulk requirements, it is recommended to contact manufacturers directly to ensure consistent quality, better pricing, and customized service support.
Q5: What is the typical price of blind rivets?
The price of blind rivets is significantly influenced by material (aluminum, stainless steel), coating (anodized, painted), and specifications. Black rivets are generally slightly more expensive than standard rivets, but they offer greater value in terms of visual consistency and weather resistance.
Q6: What are blind rivets used for?
Blind rivets have a wide range of applications, including solar panel mounting systems, building curtain walls, metal roofing, automotive components, and electronic equipment. Their key advantages include single-sided installation, reliable connections, and adaptability to complex structures.
