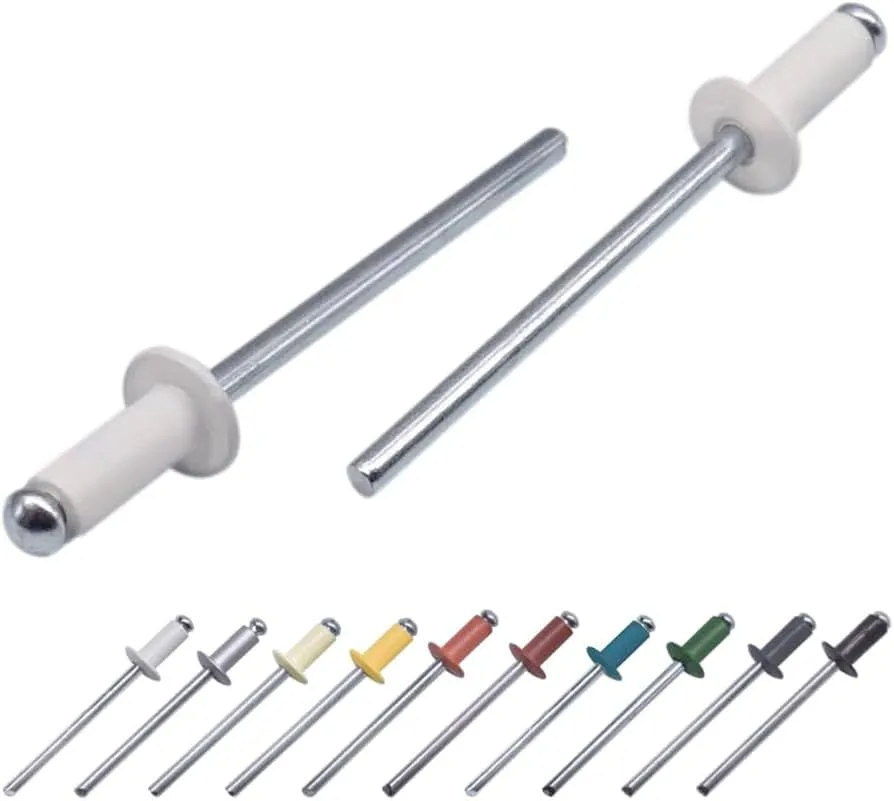

White Pop Rivets
Engineered for Roofing, Panels & HVAC Systems | Clean Finish, Corrosion-Resistant & Factory Direct
White hollow-core rivets are specifically designed for applications with stringent requirements for appearance and durability. Their high-adhesion white coating ensures excellent color matching. The rivets have passed a 72–200-hour salt spray test, effectively preventing corrosion and rust stains.
The blind rivet design enables quick installation from a single side, improving construction efficiency by 30%–60% compared to traditional bolted connections.
Application
White & RAL Color-Matched Blind Rivets Applications
White blind rivets are used to securely fasten materials in visible applications—such as roofing, panels, HVAC systems, and facades—where both strong structural connection and color-matched appearance are required.
① Roofing Systems
White and RAL-color-matched rivets are widely used for connections in metal roofing and photovoltaic mounting systems. In highly visible areas such as rooftops, traditional metal rivets can disrupt the overall appearance, whereas color-matched rivets provide a visual effect that blends seamlessly with the roofing panels. With a salt spray corrosion resistance of 72–200 hours, capable of withstanding long-term outdoor exposure.
② HVAC Systems
In commercial buildings and industrial ventilation systems, ductwork is often exposed in visible areas. White rivets help maintain a clean, unified appearance for the entire system, avoiding the visual clutter caused by traditional fasteners. Furthermore, riveted connections offer vibration resistance, making them less prone to loosening during long-term operation and enhancing system stability.
③ Facade & Decorative Structures
In building facades, equipment enclosures, and decorative structures, visual consistency is of the utmost importance. RAL-color-matched rivets ensure precise color coordination with coated panels, preventing color discrepancies from compromising the overall design aesthetic. For high-end projects, this level of color consistency often directly impacts the final acceptance quality.
| Parameter | Details |
|---|---|
| Material | Aluminum / Carbon Steel / Stainless Steel / Nylon |
| Surface Finish | White Painted / Powder Coated / Electrophoretic Coating (E-coating) |
| Color Range | Standard White (close to RAL 9010 / 9016) + 200+ RAL Custom Colors Available |
| Diameter Range | 3.2 / 4.0 / 4.8 / 6.4 mm |
| Grip Range | Multiple Options Available / Customizable |
| Head Type | Dome Head / Large Flange / Countersunk |
| Corrosion Resistance | 72–200 Hours Salt Spray Tested (depending on coating type) |
| Standards | ISO / DIN / IFI |
| Quality System | ISO 9001 / IATF 16949 (for automotive applications) |
| Compliance | CE (compliant with relevant EU directives) |
RAL Color System Section
RAL is a globally recognized industrial color standard system designed to ensure color consistency and reproducibility across different materials and products.
RAL 7016 (Anthracite Grey):
Commonly used for building facades and industrial structures
RAL 9016 (Traffic White):
Suitable for white aluminum panels and cleanroom environments
Engineering Considerations
Different coating processes (such as anodizing and powder coating) may result in subtle variations in color appearance. Additionally, batch consistency is a key indicator for color control. We recommend confirming color matching samples early in the project to ensure the final result meets expectations.
Architectural and photovoltaic projects typically require ΔE color difference to be controlled within a reasonable range to ensure overall visual consistency.
Why Color Matching Matters
Using RAL color matching effectively prevents fasteners in their natural metal finish from disrupting the overall design aesthetic, while reducing the risk of project rework and customer complaints, and further enhancing the professional image of the product and brand.
Why use whitle blind rivet
RAL Color-Matched Blind Rivet Solution
Problem
Core Issues with Traditional Rivets
- Significant visual disruption
Metal-colored rivets stand out starkly against white or light-colored surfaces, compromising the overall design aesthetic - Prone to rust and staining
Oxidation occurs easily in outdoor settings; rust stains can contaminate panels, affecting project acceptance - White does not guarantee uniformity
Color variations (yellowish/grayish) exist between different batches or suppliers, and these issues become magnified after large-scale installation - High rework costs
Aesthetic issues account for a significant proportion of project costs, directly impacting delivery and customer satisfaction
Solution
RAL Color-Matched Rivet Solution
- Precise color matching (RAL system)
Achieves a visual effect consistent with the panels/roof, rather than a generic white appearance - Consistent Color Across Batches
Standardized color control eliminates the risk of color variation in large-scale projects - High Corrosion Resistance
Passes 72–200-hour salt spray tests, effectively preventing rust contamination - Balances Aesthetics and Structural Performance
Ensures long-term, stable visual performance while maintaining connection strength
Advatanges
Faster Installation, Corrosion Resistance & Visual Consistency
Precise color matching for enhanced overall aesthetic quality
Achieves a visual effect consistent with panels and roofs based on RAL standards, eliminating color discrepancies and rework issues
Efficient installation for significantly reduced labor costs The single-sided installation design eliminates the need for rear-side operations, enabling rapid assembly in industrial applications—with the potential to produce dozens of rivet joints per minute
Vibration-Resistant and Secure, Ensuring More Reliable Connections The riveted structure provides a permanent connection that will not loosen in vibrating environments, unlike screws
Superior Corrosion Resistance, Extending Service Life The combination of coating and material effectively resists corrosion, making it suitable for outdoor and harsh environments
Suitable for Multi-Material Joining, Expanding Application Scope Can join metal, plastic, and composite materials to meet diverse engineering requirements
Rivet Products
RAL Color-Matched Blind Rivets vs Standard Rivets
Although standard rivets are less expensive, they often result in higher rework and maintenance costs in visible applications. In contrast, white and RAL-color-matched rivets can effectively reduce overall project risks by ensuring a uniform appearance and enhancing durability.
| Dimension | White / RAL Rivets | Standard Rivets |
|---|---|---|
| Appearance | Matches panel color for a unified visual appearance | Prominent metallic color that detracts from the aesthetic |
| Corrosion Resistance | Coated protection; 72–200-hour salt spray test; reduces risk of rust | Prone to oxidation and rust; may stain surfaces |
| Application | Visible areas such as roofs, curtain walls, and HVAC systems | Internal structural components or applications with low aesthetic requirements |
Rivet installation
How White Blind Rivets Work
White blind rivets feature a blind rivet design, enabling a secure connection to be achieved with access from only one side. Compared to traditional bolted connections, they eliminate the need for access from the back, significantly reducing installation time and labor costs.
- Step 1: Drill Hole
Drill a hole in the material to be joined with a diameter matching the rivet (typically 0.1–0.2 mm larger than the rivet’s diameter) - Step 2: Insert Rivet
Insert the white rivet into the hole, ensuring the head is flush with the material surface. - Step 3: Set Rivet
Use a rivet gun to sever the mandrel; the rivet body expands on the back side to create a clamping force, completing the connection.
Get RAL Color-Matched White Blind Rivets for Your Project
Avoid color discrepancies, corrosion, and the risk of rework. We offer RAL-standard color-matched rivets to ensure consistent appearance and structural reliability in large-scale projects.
GET TO KNOW US
Rivmate: Manufacturing Capability
- IATF 16949 Quality Management System:
Automotive-grade quality control · Process traceability · Standardized production - Large-scale production capacity ensures stable delivery
We utilize automated cold heading production lines to achieve high-efficiency continuous production, with monthly output ranging from several million to tens of millions of units, meeting the demands of large-volume orders and long-term projects - Proven Process System (Cold Forging + Surface Coating)
Standardized control is maintained throughout the entire process, from cold forging to spray painting and electrophoretic coating. Coating thickness and adhesion are strictly managed to ensure consistent RAL color matching and long-lasting durability.
Have any questions? Feel Free to Give Us A Call!
+86 189 6230 4392
OEM
Custom Rivet Solutions
Custom
Flange Diameter
You can request a larger or special flange size to better distribute load on composite panels.
02
Special
Surface Coatings
You can choose coatings for corrosion resistance, durability, or specific environmental conditions.
03
OEM &
Private Label Packaging
You can customize packaging with your brand, labels, and carton specifications for your market.
Frequently Asked Question
White & RAL Color-Matched Blind Rivets
Q1: How to choose the right blind rivet size?
You need to select the appropriate grip range based on the total material thickness. Ideally, the material thickness should fall within the middle range of the grip range to ensure a more stable clamping effect. If the rivet is too short, it may cause the joint to become loose; if it is too long, it may not form properly. Additionally, the hole diameter must match the rivet diameter (typically 0.1–0.2 mm larger); otherwise, it will affect installation quality and structural strength.
Q2: Why use white or RAL color-matched rivets instead of standard rivets?
If your application involves visible areas such as roofs, panels, or curtain walls, standard metal rivets will significantly detract from the overall appearance. More importantly, “white rivets” on the market are not standardized, and color variations may exist between different batches or suppliers. By using RAL color-matched blind rivets, you can achieve a color effect consistent with the panel, avoiding visual inconsistencies and the need for rework later on.
Q3: Do white blind rivets rust over time?
Whether they rust depends on the material and coating quality, not the color itself. High-quality white rivets typically use aluminum or stainless steel substrates combined with spray or electrophoretic coatings, capable of passing 72–200-hour salt spray tests. Under normal outdoor conditions, these products offer excellent corrosion resistance and effectively prevent rust from staining the surface.
Q4: Are white rivets the same as RAL 9016 or RAL 9010?
Not exactly. Standard “white rivets” do not correspond to RAL standard colors. RAL 9010 is a warmer white, while RAL 9016 is a cooler white; the difference becomes very noticeable in large-scale applications. If you require visual consistency, we recommend specifying the RAL color code directly or providing a sample for color matching, rather than using generic white products.
Q5: Can blind rivets be used for plastic or composite panels?

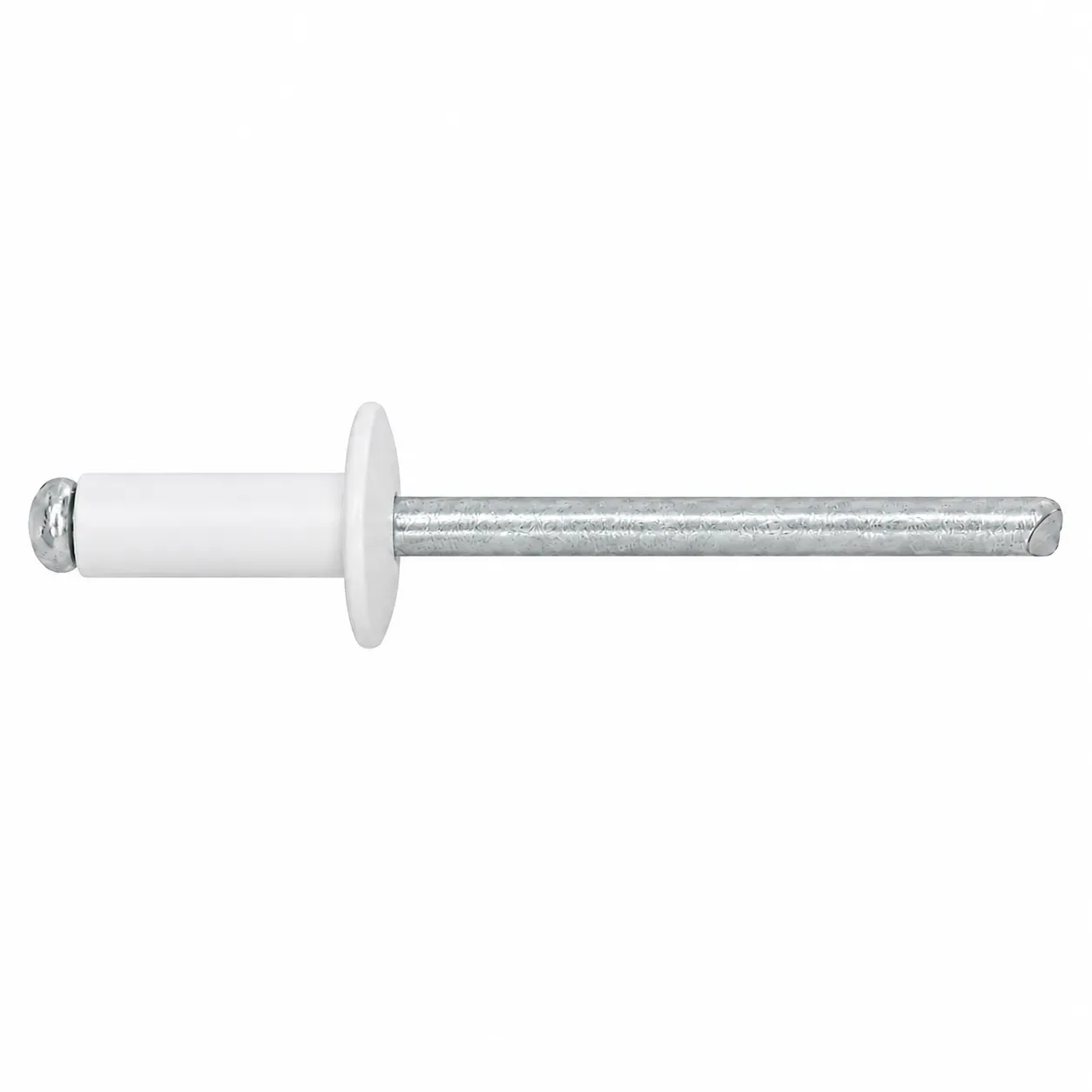

Yes, but you need to select the appropriate type. For materials such as PVC, FRP, or aluminum-plastic composite panels, we recommend using large flange blind rivets to increase the load-bearing surface area and prevent the panels from cracking or being torn through. Correct selection can significantly improve connection reliability and material protection.
Q6: How to ensure color consistency in bulk orders?
To ensure color consistency in bulk orders, you need to verify three key points: whether color matching is based on RAL standards or physical samples, whether a stable coating process is used, and whether there is a batch color inspection procedure. This is particularly important for white or light-colored products. A reliable supplier will ensure there are no noticeable color differences between batches through standardized color control.
