Rivmate Sealed Blind Rivets Supplier

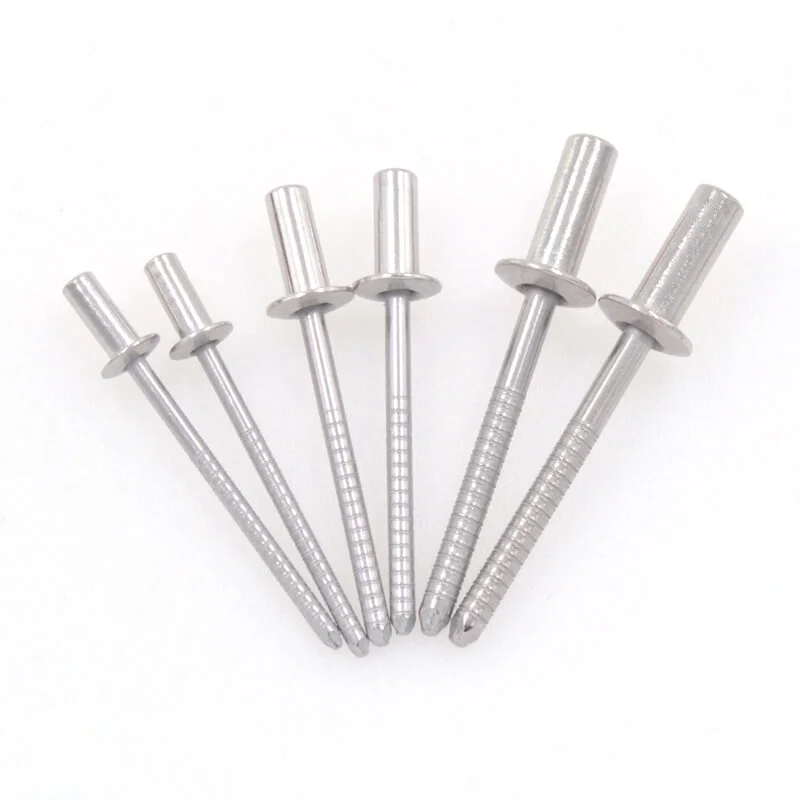

Sealed Type Blind Rivets
Provide Security For Your Project With Sealed Rivet
Sealed Pop Blind Rivets
| Material | Aluminum/Carbon Steel/Stainless Steel/304&316 Stainless Steel |
| Head Type | Dome Head/Countersunk Head/Large Flange |
| Quality Authentication | IATF16949,ISO14001,ISO45001 |
| Surface | Zinc plated/Natural polish |
| Size | 2.4(3/32") - 6.4(1/4") |
| Own factory? | YES |
| Customized services | YES |
| Standard | ISO,DIN7337,IFI114,HUCK,AVDEL etc |
What Are Sealed Rivets?
Sealed rivets are a type of standard blind rivet. You can perform a one-sided installation of it. You can also apply it in non-blind hole applications where you have access to both sides.
Sealed rivets provide a high-strength connection. The joint is completely sealed in the rivet body.
Sealed blind rivets are available in a variety of materials. It can ensure good waterproof and dustproof.Rivmate’s closed end blind rivets are synonymous with safety and stability.
Multi-material
Smooth surface
many kinds of specification
Stable Durability
Custom Sealed Blind Rivets Materials Available
Custom Sealed Blind Rivet Head Type Selection
- Dome Head
- Countersunk Head
- Large Flange
The Technical Parameters of Sealed Type Blind Rivet
| Diameter[d] | Size | Body Length[L] | Grip Range | Drill | Tensile | Shear |
| 3.2(1/8") | 3.2×6.5 | 6.3-7.3 | 0.5-2.0 | 3.3-3.4 | 1350N | 1100N |
| 3.2×8.0 | 7.8-8.8 | 2.0-3.5 | ||||
| 3.2×9.5 | 9.3-10.3 | 3.5-5.0 | ||||
| 3.2×11.0 | 10.8-11.8 | 5.0-6.5 | ||||
| 3.2×12.5 | 12.3-13.3 | 6.5-8.0 | ||||
| 4.0(5/32") | 4.0×8.0 | 7.8-8.8 | 1.5-3.5 | 4.1-4.2 | 2200N | 1600N |
| 4.0×9.5 | 9.3-10.3 | 3.5-5.0 | ||||
| 4.0×11.0 | 10.8-11.8 | 5.0-6.5 | ||||
| 4.0×12.5 | 12.3-13.3 | 6.5-8.0 | ||||
| 4.0×15.0 | 14.8-15.8 | 8.0-10.5 | ||||
| 4.8(3/16") | 4.8×8.0 | 7.8-8.8 | 2.0-3.5 | 4.9-5.0 | 3100N | 2200N |
| 4.8×9.5 | 9.3-10.3 | 3.5-5.0 | ||||
| 4.8×11.0 | 10.8-11.8 | 5.0-6.5 | ||||
| 4.8×13.0 | 12.8-13.8 | 6.5-8.0 | ||||
| 4.8×14.5 | 14.3-15.3 | 8.0-9.5 | ||||
| 4.8×16.0 | 15.8-16.8 | 9.5-11.0 | ||||
| 4.8×18.0 | 17.8-18.8 | 11.0-13.0 | ||||
| 4.8×21.0 | 20.8-21.8 | 12.0-16.0 | ||||
| 4.8×25.0 | 24.8-25.8 | 14.0-19.0 | ||||
| 6.4(1/4") | 6.4×12.5 | 12.3-13.3 | 1.5-6.5 | 6.5-6.6 | 4900N | 3600N |
| 6.4×14.0 | 13.8-14.8 | 3.0-8.0 | ||||
| 6.4×16.0 | 15.8-16.8 | 5.0-10.0 | ||||
| 6.4×19.5 | 19.3-20.3 | 8.5-13.5 | ||||
| 6.4×24.0 | 23.8-24.8 | 13.0-17.5 |
Reply within 12 Hours
Send us a message if you have any questions or request a quote. We will be back to you ASAP!
Location
+86 189 6230 4392
or write
manufacture@world-rivet.com
CONTACT PERSON SEARCH
Fully enclosed! Our unique closed end rivet design is perfect for applications that require water and dust resistance.
Choose our closed rivets. Your project will be recognized by your customers. Your project will be one step closer to success.
What are the different types of sealed rivets?
Sealed Blind Rivets are a type of rivet that creates a durable water and air seal.
Sealed rivets are often used in a variety of products such as aircraft manufacturing, air compressors, ship building and more. When looking for the right Closed Blind Rivet, you need to consider the right riveting range and the right type of head. Only the right Closed Blind Rivet for your project is the right Closed Blind Rivet.
Sealed Blind Rivets are made of different materials. for different applications. There are some closed blind rivets that are made from low density aluminum, and there are some that use steel to make closed blind rivets for more durability. Some choose to use copper or galvanized to prevent corrosion.
- Carbon Steel Mandrel/Aluminum Body
- Aluminum Mandreal/Aluminum Body
- Stainless Steel Mandrel/Aluminum
- Carbon Steel Mandrel/Carbon Steel Body
- 420 Stainless Steel Mandrel/304 Stainless Steel Body
- 304 Stainless Steel Mandrel/304 Stainless Steel Body
- Carbon Steel Mandrel/Copper Body
Rivmate Has The Sealed Blind Pop Rivets You Need!
Rivmate’s sealed blind pop rivets are suitable for a variety of applications. Rivmate can provide a catalog of closed end blind pop rivets. We can supply Closed End blind Rivets in a variety of sizes, lengths and materials. So no matter what industry you are in, you can find the closed end pop blind rivets you need here.
If you have a need for closed end rivets. Please contact us. We will arrange professional engineers to give you professional service one to one. We hope to lead to success with you.
How to Install Sealed End Blind Rivets?
- You should determine the type and size of the sealed rivets. Prepare the tools for riveting the sealed rivets.
- Pre-drill holes in the workpiece according to the specifications and requirements of the prepared sealed rivets. The holes should correspond to the dimensions of the sealed rivets.
- Use an appropriate riveting tool (such as a pneumatic rivet gun) to apply enough pressure to deform the sealed rivet and form a stable connection.
- Check that the riveted closed rivets are stable. Make sure the rivet cap is tightly sealed to the top of the rivet body.
